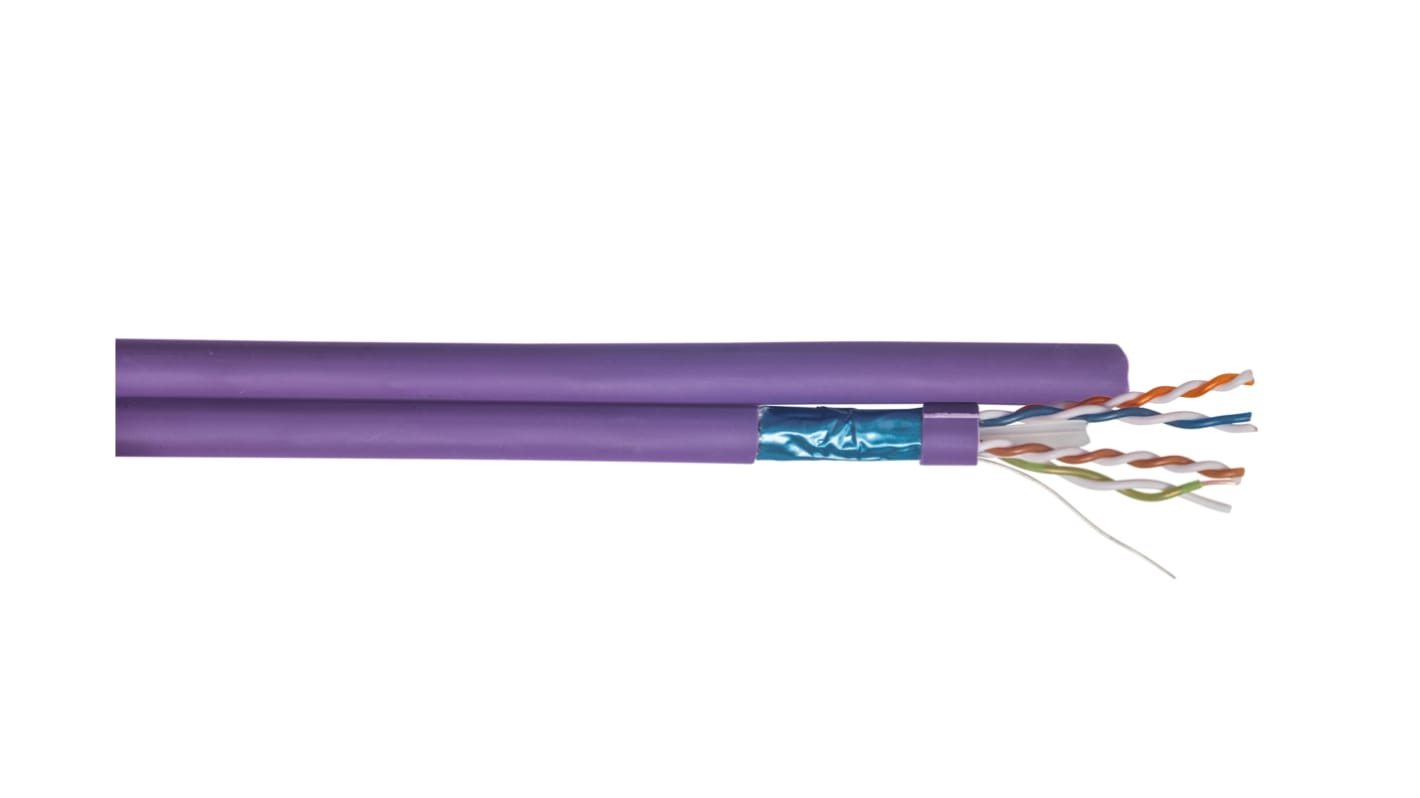

Multimedia Connect MMC Cat6a Ethernet Cable, 500 m, Shielded Screened, Purple Low Smoke Zero Halogen
- RS Stock No.:
- 175-7238
- Mfr. Part No.:
- FU5108SH5
- Manufacturer:
- Multimedia Connect
Subtotal (1 reel of 500 metres)*
MYR10,607.69
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR10,607.69 | MYR21.215 |
*price indicative
- RS Stock No.:
- 175-7238
- Mfr. Part No.:
- FU5108SH5
- Manufacturer:
- Multimedia Connect
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Multimedia Connect | |
| Product Type | Ethernet Cable | |
| Series | MMC | |
| LAN Category | Cat6a | |
| Cable Length | 500m | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Colour | Purple | |
| Jacket Material | Low Smoke Zero Halogen | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Standards/Approvals | Euroclass Dca-s2 d2 a2 | |
| Core Strands | 1 x 23AWG | |
| Outside Diameter | 6.8mm | |
| Size of Strands | 23AWG | |
| Conductor Material | Copper | |
| Number of Strands | 1 | |
| Select all | ||
|---|---|---|
Brand Multimedia Connect | ||
Product Type Ethernet Cable | ||
Series MMC | ||
LAN Category Cat6a | ||
Cable Length 500m | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Colour Purple | ||
Jacket Material Low Smoke Zero Halogen | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Standards/Approvals Euroclass Dca-s2 d2 a2 | ||
Core Strands 1 x 23AWG | ||
Outside Diameter 6.8mm | ||
Size of Strands 23AWG | ||
Conductor Material Copper | ||
Number of Strands 1 | ||
- COO (Country of Origin):
- KR
The FU510 is a data cable used in full shielded structured cabling system, for horizontal or vertical (Backbone) configuration. Its performances exceed the limits required by current standards thanks to its excellent high speed and error free transmission up to 510 Mhz. It constitutes an investment for the future network applications. High electromagnetic immunity thanks to general shield (coupling attenuation > 75 dB)avoidthe Ax Cross Talk measurement on site.
Tested up to 510 MHz
Electromagnetic immunity
Flame retardant
Electrical supply of equipments (camera, hotspot wifi, IP phone ...)
