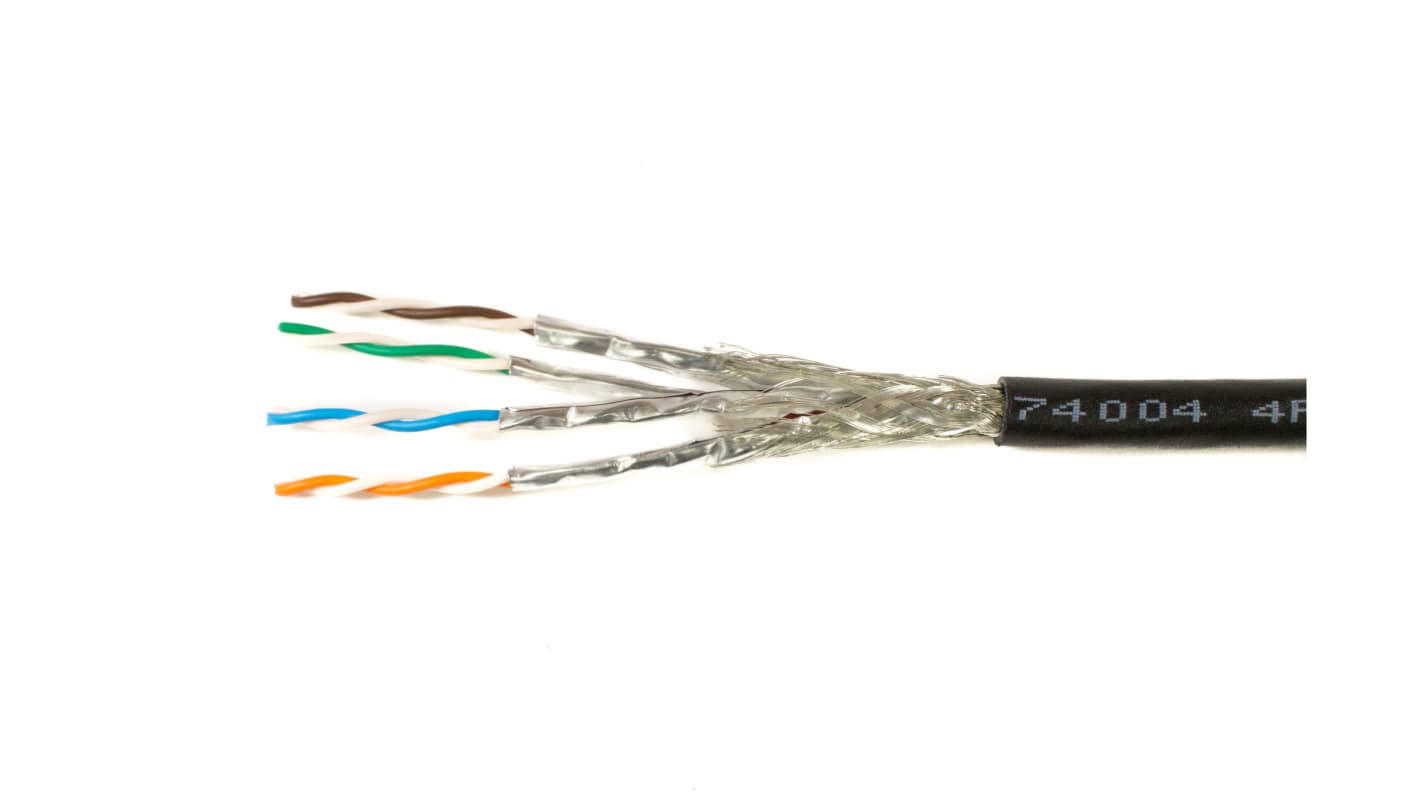

Alpha Wire Alpha Essentials Flexing Ethernet Cat7 Ethernet Cable, 152 m, Shielded Screened, Black Polyurethane

RS Stock No.:: 146-2717
Distrelec Article No.:: 300-99-332
Mfr. Part No.:: 74004 BK002
Manufacturer:: Alpha Wire

Alpha Wire Alpha Essentials Flexing Ethernet Cat7 Ethernet Cable, 152 m, Shielded Screened, Black Polyurethane

Subtotal (152 metres, on reels of 152)*

MYR3,332.77

FREE delivery for orders over RM 150.00

In Stock

12 unit(s) ready to ship from another location
Plus 2 unit(s) shipping from 17 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	MYR3,332.77	MYR21.926

*price indicative

RS Stock No.:: 146-2717
Distrelec Article No.:: 300-99-332
Mfr. Part No.:: 74004 BK002
Manufacturer:: Alpha Wire

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Alpha Essentials Flexing Ethernet
	Product Type	Ethernet Cable
	LAN Category	Cat7
	Cable Length	152m
	Terminated/Unterminated	Unterminated
	Shield Type	Shielded
	Sub Type	Cat7
	Screened/Unscreened	Screened
	Conductor Type	Stranded
	Jacket Colour	Black
	Jacket Material	Polyurethane
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	90°C
	Core Strands	7 x 34AWG
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Standards/Approvals	ANSI/TIA-568-C.2, CE, CSA FT2, cULus Recognised, EN 50173-1, EN 60754-2, EN 60811-2-1, ISO/IEC 11801
	Voltage	300V ac
	Conductor Material	Bare Copper
	Size of Strands	34AWG
	Outside Diameter	0.27mm
	Number of Cores	8
	Number of Strands	7

	Select all
	Brand Alpha Wire
	Series Alpha Essentials Flexing Ethernet
	Product Type Ethernet Cable
	LAN Category Cat7
	Cable Length 152m
	Terminated/Unterminated Unterminated
	Shield Type Shielded
	Sub Type Cat7
	Screened/Unscreened Screened
	Conductor Type Stranded
	Jacket Colour Black
	Jacket Material Polyurethane
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 90°C
	Core Strands 7 x 34AWG
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Standards/Approvals ANSI/TIA-568-C.2, CE, CSA FT2, cULus Recognised, EN 50173-1, EN 60754-2, EN 60811-2-1, ISO/IEC 11801
	Voltage 300V ac
	Conductor Material Bare Copper
	Size of Strands 34AWG
	Outside Diameter 0.27mm
	Number of Cores 8
	Number of Strands 7

Belden Alpha Essentials Flexing Ethernet Cable, 152m Length, Cat7 LAN Category - 74004 BK002

This Ethernet cable is designed for high-performance networking in demanding environments. With a length of 152m, this Cat7 cable is ideal for creating fast and reliable connections in data centres. Its shielded design enhances protection against interference, ensuring optimal performance for critical applications.

Features & Benefits

• Low Smoke Zero Halogen technology improves safety in enclosed spaces

• Aluminium/Mylar shielding minimises signal interference

• PUR outer sheath offers durability and resistance to abrasion

• Supports voltages up to 300V AC for robust applications

• Stranded copper conductors enhance flexibility and ease of installation

• High-speed data transmission capabilities for demanding networking tasks

Applications

• Used for high-speed connections in data centres

• Ideal for permanent installations in industrial settings

• Suitable for automation and electronics

• Perfect for wiring complex data and communication networks

• Utilised in environments where low smoke emissions are crucial

What specifications ensure this cable meets stringent networking standards?

The Ethernet cable complies with ANSI/TIA-568-C.2 and ISO/IEC 11801 standards, confirming its reliability for high-speed networking. Its design meets rigorous performance criteria necessary for efficient data transmission.

How does the shielding of this cable protect against external interference?

The cable features an Aluminium/Mylar shield providing significant coverage that prevents electromagnetic interference, ensuring clearer signals and reducing transmission errors in sensitive applications.

What are the thermal resistance capabilities of this cable?

This cable operates effectively across a temperature range of -40 to 80°C, making it suitable for diverse environmental conditions in commercial and industrial applications.

What type of flexibility does this cable offer for installation?

It utilises stranded conductor strands that enhance flexibility, allowing for easier routing around corners and through tight spaces during installation in complex configurations.
