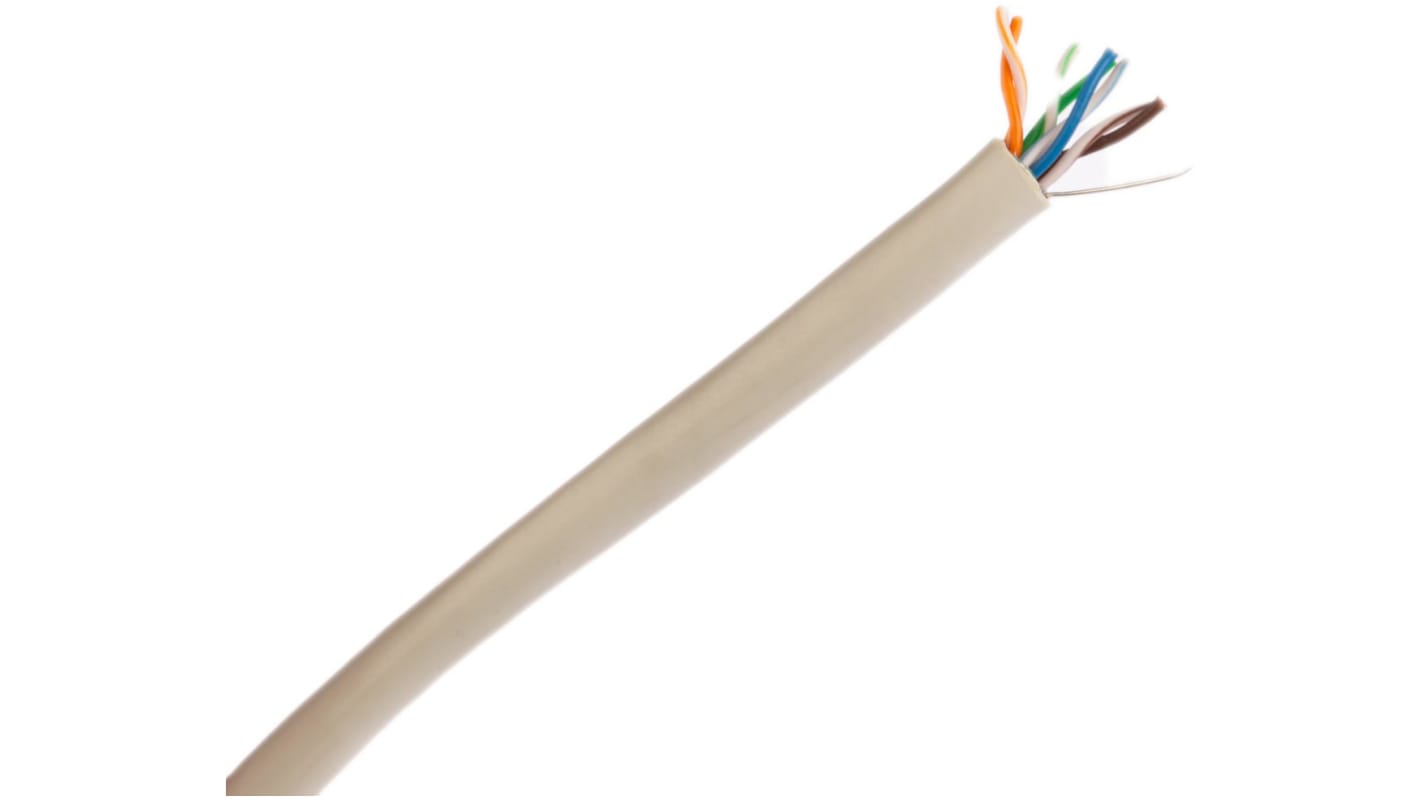

CAEMMC, 100m Cat5e, Grey, F/UTP Shielded, Unterminated PVC Sheath
- RS Stock No.:
- 116-085
- Mfr. Part No.:
- SGBP410
- Manufacturer:
- CAE Multimedia Connect
Subtotal (1 reel of 100 metres)*
MYR835.70
FREE delivery for orders over RM 500.00
In Stock
- 7 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 12 January 2026
- Plus 3 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR835.70 | MYR8.357 |
*price indicative
- RS Stock No.:
- 116-085
- Mfr. Part No.:
- SGBP410
- Manufacturer:
- CAE Multimedia Connect
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CAE Multimedia Connect | |
| Series | MMC | |
| Length | 100m | |
| LAN Category | Cat5e | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | F/UTP | |
| Shielded/Unshielded | Shielded | |
| CPR Certification | Dca | |
| Sheath Colour | Grey | |
| Outer Sheath Material | PVC | |
| Core Strands | 7/26 | |
| Fire Behaviour | IEC 60332-1 | |
| Conductor Strand Type | Stranded | |
| Capacitance | 50pF/m | |
| American Wire Gauge | 26AWG | |
| Cross Sectional Area | 0.128 mm² | |
| Cable Shape | Twisted Pair | |
| Standards Met | EIA, TIA | |
| Outer Diameter | 5.4mm | |
| Number of Strands | 8 | |
| Select all | ||
|---|---|---|
Brand CAE Multimedia Connect | ||
Series MMC | ||
Length 100m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Unterminated | ||
Shield Type F/UTP | ||
Shielded/Unshielded Shielded | ||
CPR Certification Dca | ||
Sheath Colour Grey | ||
Outer Sheath Material PVC | ||
Core Strands 7/26 | ||
Fire Behaviour IEC 60332-1 | ||
Conductor Strand Type Stranded | ||
Capacitance 50pF/m | ||
American Wire Gauge 26AWG | ||
Cross Sectional Area 0.128 mm² | ||
Cable Shape Twisted Pair | ||
Standards Met EIA, TIA | ||
Outer Diameter 5.4mm | ||
Number of Strands 8 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
100 Ohms category 5e F/UTP flexible cable, 4-pair, 100 MHz, PVC
F/UTP shielded cable for creating patch cords.
It forms an extension of a high-speed VDI (Voice - Data - Image) network.
Screened to a very high coverage coefficient for use in high-disturbance environments, enabling correct operation up to 100 MHz.
This cable is used for transmission of digital and analogue signals for voice, data transmission and video connections.
This cable supports all applications of current network standards IEEE802.3, IEEE802.5 and IEEE802.12 (Ethernet, Token Ring, TP-PMD).
It is also able to handle ATM 622 Mps applications.
Operating temperature: -20 °C → +70 °C
It forms an extension of a high-speed VDI (Voice - Data - Image) network.
Screened to a very high coverage coefficient for use in high-disturbance environments, enabling correct operation up to 100 MHz.
This cable is used for transmission of digital and analogue signals for voice, data transmission and video connections.
This cable supports all applications of current network standards IEEE802.3, IEEE802.5 and IEEE802.12 (Ethernet, Token Ring, TP-PMD).
It is also able to handle ATM 622 Mps applications.
Operating temperature: -20 °C → +70 °C
Standards
Cat. 5e EIA / TIA 568-B.2
IEC 60332-1 / NF C 32070 C2
IEC 60332-1 / NF C 32070 C2
