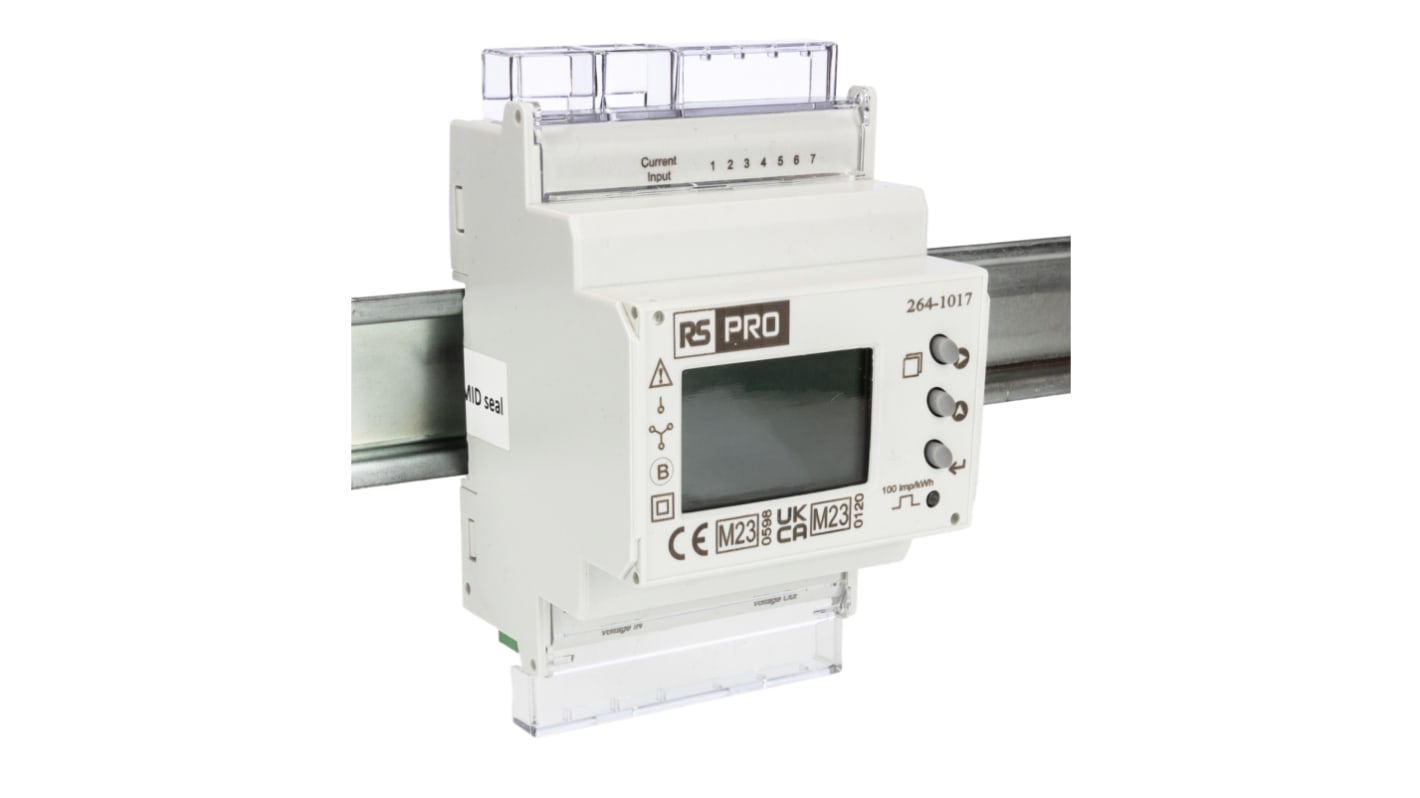

RS PRO 3 Phase LCD Energy Meter, Type Energy Meter

RS Stock No.:: 264-1017
Manufacturer:: RS PRO

RS PRO 3 Phase LCD Energy Meter, Type Energy Meter

Bulk discount available

Subtotal (1 unit)**

MYR993.16

41 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 9	MYR993.16
10 +	MYR921.25

**price indicative

Benefits of choosing RS PRO

Quality

Performance tested products with a 3 year warranty.

Value

Quality, choice and sustainable product at competitive prices.

Choice

+90,000 products available with a return rate under 0.04%.

RS Stock No.:: 264-1017
Manufacturer:: RS PRO

RS PRO 4-Module, Plug and Play, Backlit, Easywire Multi-Function Power Energy Meter, Pulse Output and Modus, MID B + D Certified, DIN 43880 DIN Rail Mounted

From RS PRO this is the MID approved DIN Rail mounted easywire multi-function power / energy meter providing you with a wealth of benefits to accurately measure and monitor energy usage. With a white backlit LDC digital display providing clear readings in all light conditions plus quick select push buttons on the front of the energy meter fast access to a display page. The RS Pro digital multi-function energy meter is not only suitable for monitoring precise energy consumption but also for various other electrical readings plus is complete with pulse output, true RMS, Modbus communication all housed within a compact DIN 43880 4-module casing. The easywire system is specially designed saving you up to 90% installation time compared to standard meters and current transformers

Features & Benefits

3-Phase 4-wire connection

MID B + D Certified

Easywire 1.2 A maximum current

Easywire quick connection system

RS485 communication

Modbus Protocol

1 x Pulse output

True RMS measurement

High definition white backlit LCD display

Manual or auto scroll screen modes

Snap on 35 mm DIN Rail Mounting

Polycarbonate UL94 V-0 housing, weighs 210 g

Current input 1.2 A maximum – easywire

Rj45 input terminal type

Pluggable terminal block screw clamp voltage input / output, communication terminals

Easy operation and programming

Display Parameters

Voltage 0.5% of full scale

Current 0.5 % of full scale

Power factor 1% of unity

Frequency 0.1% of full scale

Power, active, reactive, and apparent

Energy Active Class 1, Class B (IEC/EN62053-21, IEC/EN50470-3)

Reactive Energy Class 2 (IEC/EN62053-23)

Applications

Monitoring energy consumption

Residential

Industrial and commercial utility applications

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Attribute	Value
Cutout Height	118.5mm
Cutout Width	70mm
Display Type	LCD
Number of Phases	3
Number of Inputs	1 x (RJ45 3phase Current Transformer plug ), 1 x (Voltage In and Neutral), 1 x (Voltage Out and Neutral)
Pulse Output	Yes
Number of Outputs	1 (Pulse)
Communication Port Type	Modbus RS485
Depth	66mm
Digit Height	6.35 mm
Meter Accuracy	±0.5 (Current) %, ±0.5 (Voltage) %, ±Class B (Active Energy)
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Meter Type	Energy Meter
Minimum Measurement	173 (Phase) V ac, 100 (Phase and Neutral) V ac, 45 Hz, 2mA
Measurement Range	173→415 (Phase) V ac, 45→65Hz, 330mV, 100→240 (Phase and Neutral)V ac
Maximum Measurement	415 (Phase) V ac, 240 (Phase and Neutral) V ac, 0.330mV, 65Hz
