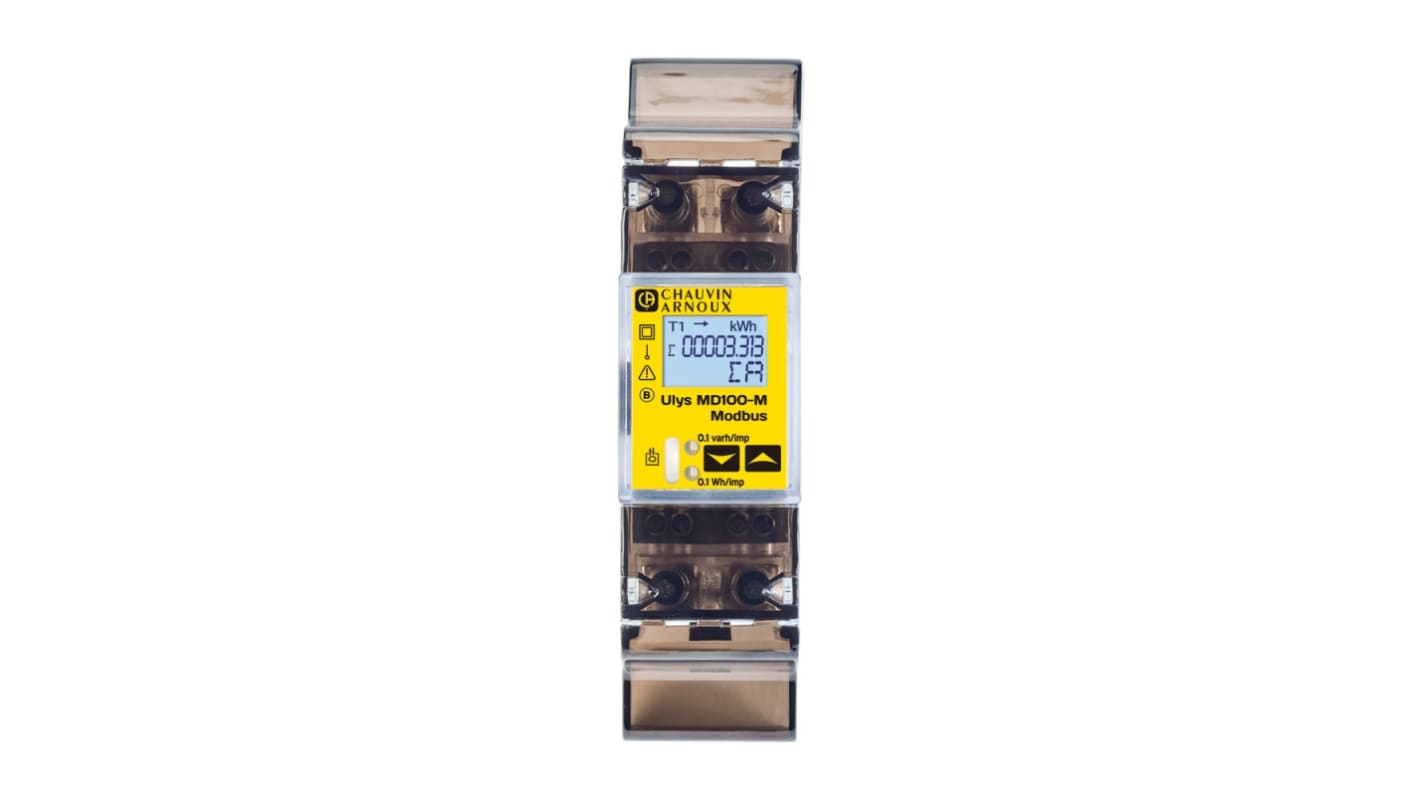

Chauvin Arnoux Energy 1 Phase, Type Electrical 3 Line Energy Meter
- RS Stock No.:
- 260-5852
- Mfr. Part No.:
- P01330760
- Manufacturer:
- Chauvin Arnoux Energy
Subtotal (1 unit)*
MYR1,153.32
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,153.32 |
*price indicative
- RS Stock No.:
- 260-5852
- Mfr. Part No.:
- P01330760
- Manufacturer:
- Chauvin Arnoux Energy
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux Energy | |
| Product Type | Energy Meter | |
| Series | ULYS | |
| Display Type | 3 Line | |
| Number of Digits | 6 | |
| Cutout Height | 117mm | |
| Number of Phases | 1 | |
| Cutout Width | 17.5mm | |
| Pulse Output | Yes | |
| Number of Outputs | 2 | |
| Meter Accuracy | MID classe B | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 63mm | |
| Standards/Approvals | MID 4 6 1 3 18 19 20 21 10 11 12 13 | |
| Meter Type | Electrical | |
| Maximum Measurement | 100 A | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux Energy | ||
Product Type Energy Meter | ||
Series ULYS | ||
Display Type 3 Line | ||
Number of Digits 6 | ||
Cutout Height 117mm | ||
Number of Phases 1 | ||
Cutout Width 17.5mm | ||
Pulse Output Yes | ||
Number of Outputs 2 | ||
Meter Accuracy MID classe B | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Depth 63mm | ||
Standards/Approvals MID 4 6 1 3 18 19 20 21 10 11 12 13 | ||
Meter Type Electrical | ||
Maximum Measurement 100 A | ||
- COO (Country of Origin):
- FR
The Chauvin Arnoux Energy is ideal solution for fair rebilling of electrical power consumption on your single-phase network, which consist sub-meters ULYS MD45 & ULYS MD100 Single-phase, dual-tariff metering and also their built-in RS 485 Modbus communication, the meters in the ULYS range can be integrated seamlessly into your local metering, remote data retrieval and energy monitoring applications as well as applications requiring meter pulse output.
A solution compliant with the latest regulations
Fair rebilling of consumption
Direct connection up to 100 A
Easy start-up
Built-in Modbus communication
Optimized display
