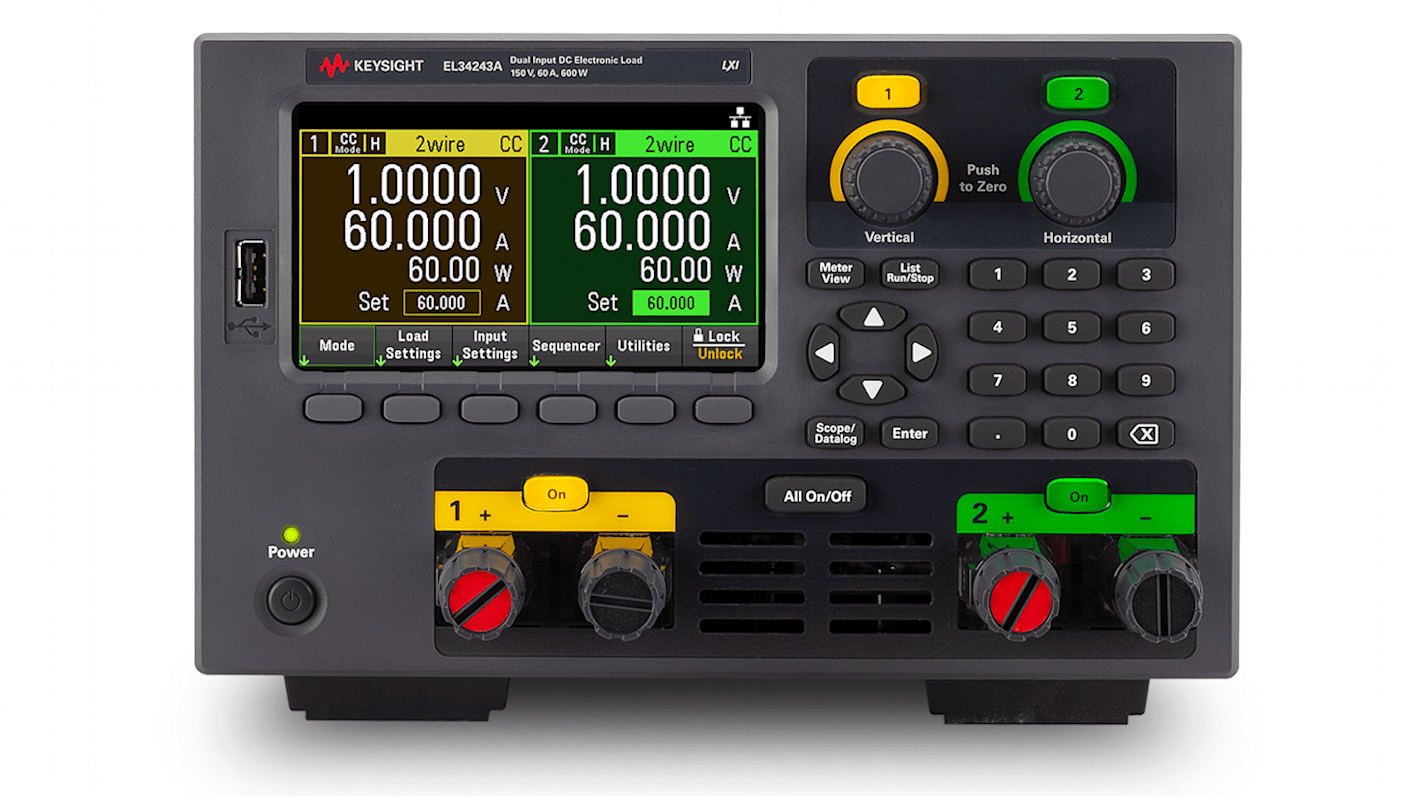

Keysight Technologies EL30000A Series Electronic Load, 300 W, 0 → 150 V, 0 → 60 A

Get to know the full characteristics of your power source with this electronic load from Keysight Technologies. It measures the voltage and current levels at a set loading point for increased accuracy. Thanks to its dual-channel design, you can test two input sources at the same time. The built-in data logger lets you store your measurement data so you can retrieve it in a flash. An adjustable data sampling rate between 20ms and 60s means you get lightning-quick results.

• Data logging of up to 10,000 hours to store large volume of results
• Fully SCPI-programmable for convenient parameter setting
• Front-facing LCD screen for quick status monitoring and configuration
• Command processing time of

• Communications equipment
• Aerospace engineering
• Laboratories
• Solar power stations

The Keysight Technologies EL30000A Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual channel model is available with up to 600 W – ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

EL30000A Series bench DC electronic loads are fully SCPI programmable with built-in USB, LAN, and optional GPIB interfaces
Advance features include scope view
data logging &sequencing
Enabling you to measure, capture, and quickly display your results

This load has a broad voltage measurement range between 0 and 150V DC and a current measurement range between 0 and 60A. This means it's just the thing for testing low and high-power conditions in your electrical system.
