Samtec PEC Series Female Edge Connector, Surface Mount, 3-Contacts, 2.54mm Pitch, 1-Row, Solder Termination

RS Stock No.:: 767-7060
Mfr. Part No.:: PEC-03-02-T-S-LC
Manufacturer:: Samtec

Samtec PEC Series Female Edge Connector, Surface Mount, 3-Contacts, 2.54mm Pitch, 1-Row, Solder Termination

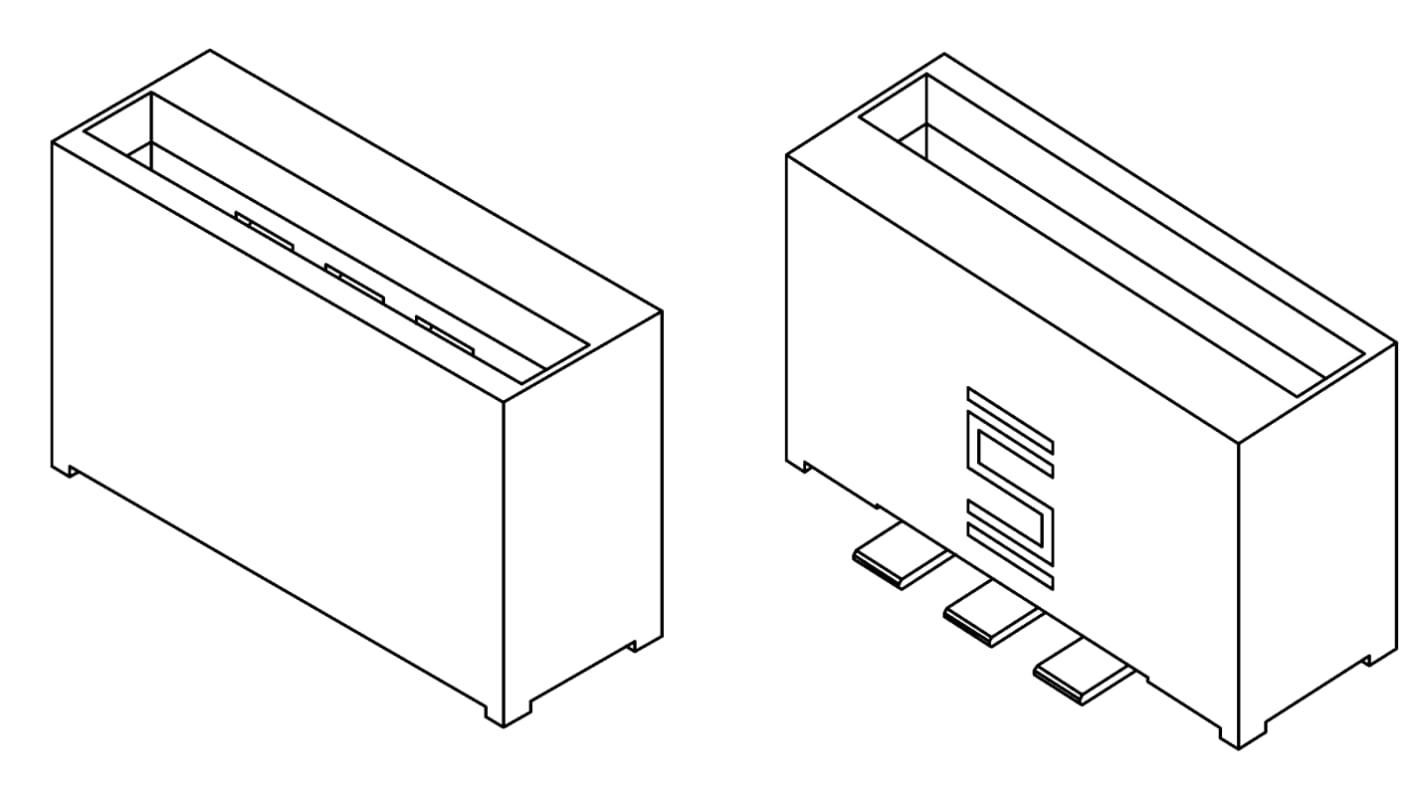

This image is representative of the product range

9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price Each

MYR21.93

Units	Per Unit
1 - 19	MYR21.93
20 - 74	MYR21.48
75 - 299	MYR20.84
300 - 599	MYR20.35
600 +	MYR19.91

RS Stock No.:: 767-7060
Mfr. Part No.:: PEC-03-02-T-S-LC
Manufacturer:: Samtec

PEC Series Power Edge Card Interface Customer Drawing

Attribute	Value
Body Orientation	Straight
Gender	Female
Number of Contacts	3
Number of Rows	1
Pitch	2.54mm
Mounting Type	Surface Mount
Termination Method	Solder
Contact Plating	Tin over Nickel
Contact Material	Beryllium Copper
Current Rating	9.8A
Voltage Rating	250 V ac
Housing Material	Liquid Crystal Polymer
Series	PEC
Minimum Operating Temperature	-55°C
Length	12.7mm
Width	4.45mm
Depth	7.9mm
Maximum Operating Temperature	+105°C

Samtec PEC Series Female Edge Connector, Surface Mount, 3-Contacts, 2.54mm Pitch, 1-Row, Solder Termination

PCE Series Power Edge Card Interface
