Units	Per Unit
1 - 19	MYR21.19
20 - 74	MYR20.75
75 - 299	MYR20.32
300 - 599	MYR19.90
600 +	MYR19.49

Select all	Attribute	Value
	Brand	Samtec
	Body Orientation	Right Angle
	Gender	Female
	Number of Contacts	36
	Number of Rows	2
	Pitch	1mm
	Mounting Type	Through Hole
	Termination Method	Solder
	Contact Plating	Gold over Nickel
	Contact Material	Phosphor Bronze
	Current Rating	2.4A
	Voltage Rating	215 V ac
	Housing Material	Nylon
	Series	PCIE
	Depth	11.05mm
	Card Type	PCI
	Maximum Operating Temperature	+125°C
	Length	25mm
	Width	9.45mm
	Minimum Operating Temperature	-55°C

	Select all
	Brand Samtec
	Body Orientation Right Angle
	Gender Female
	Number of Contacts 36
	Number of Rows 2
	Pitch 1mm
	Mounting Type Through Hole
	Termination Method Solder
	Contact Plating Gold over Nickel
	Contact Material Phosphor Bronze
	Current Rating 2.4A
	Voltage Rating 215 V ac
	Housing Material Nylon
	Series PCIE
	Depth 11.05mm
	Card Type PCI
	Maximum Operating Temperature +125°C
	Length 25mm
	Width 9.45mm
	Minimum Operating Temperature -55°C

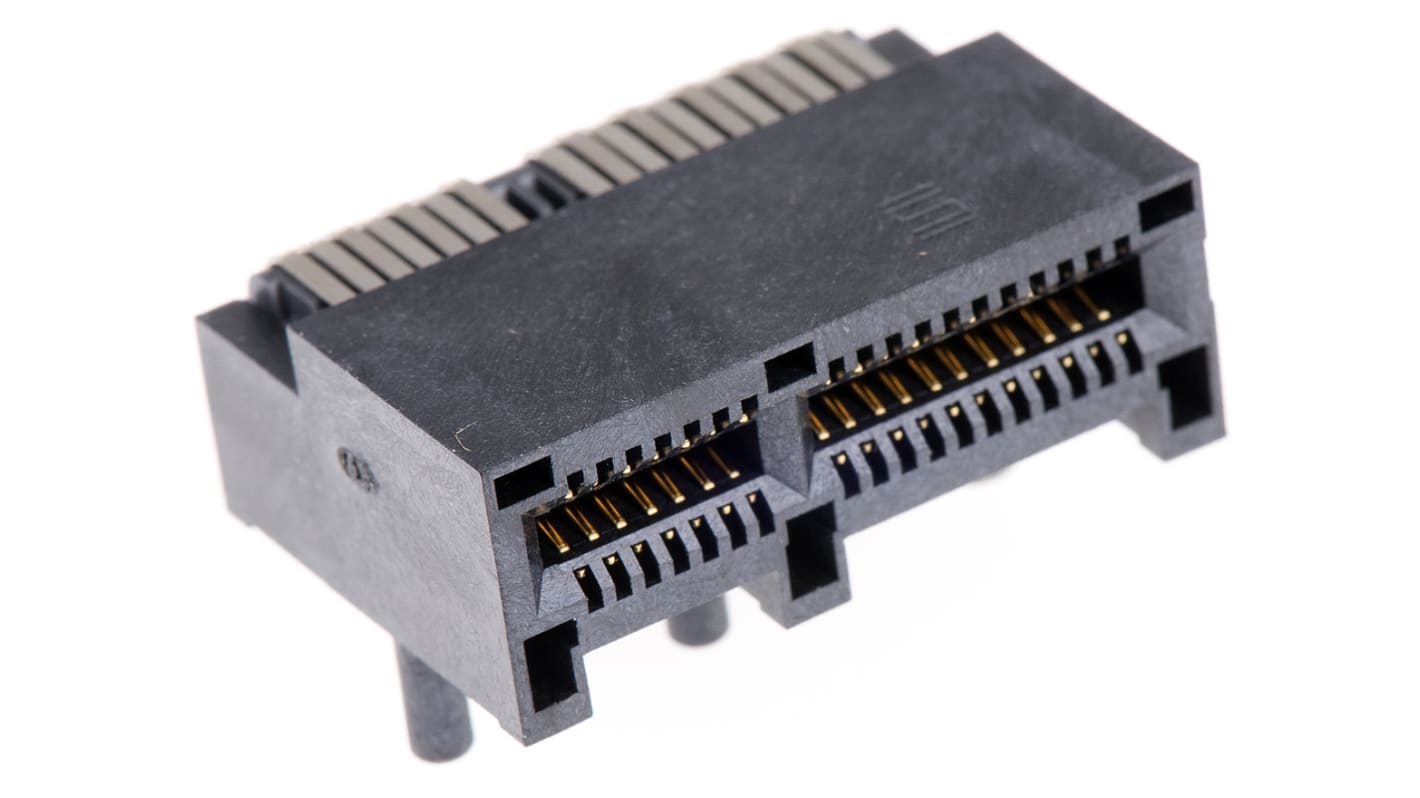

Samtec PCIE Series Right Angle Female Edge Connector, Through Hole Mount, 36-Contacts, 1mm Pitch, 2-Row, Solder

FREE delivery for orders over MYR500.00

Samtec Edge Connector, For PCIe 3.0 Cards, 215V AC Voltage Rating - PCIE Series - PCIE-036-02-F-D-RA

Features & Benefits

Applications

How do I know if I've correctly inserted my card into this connector?

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
