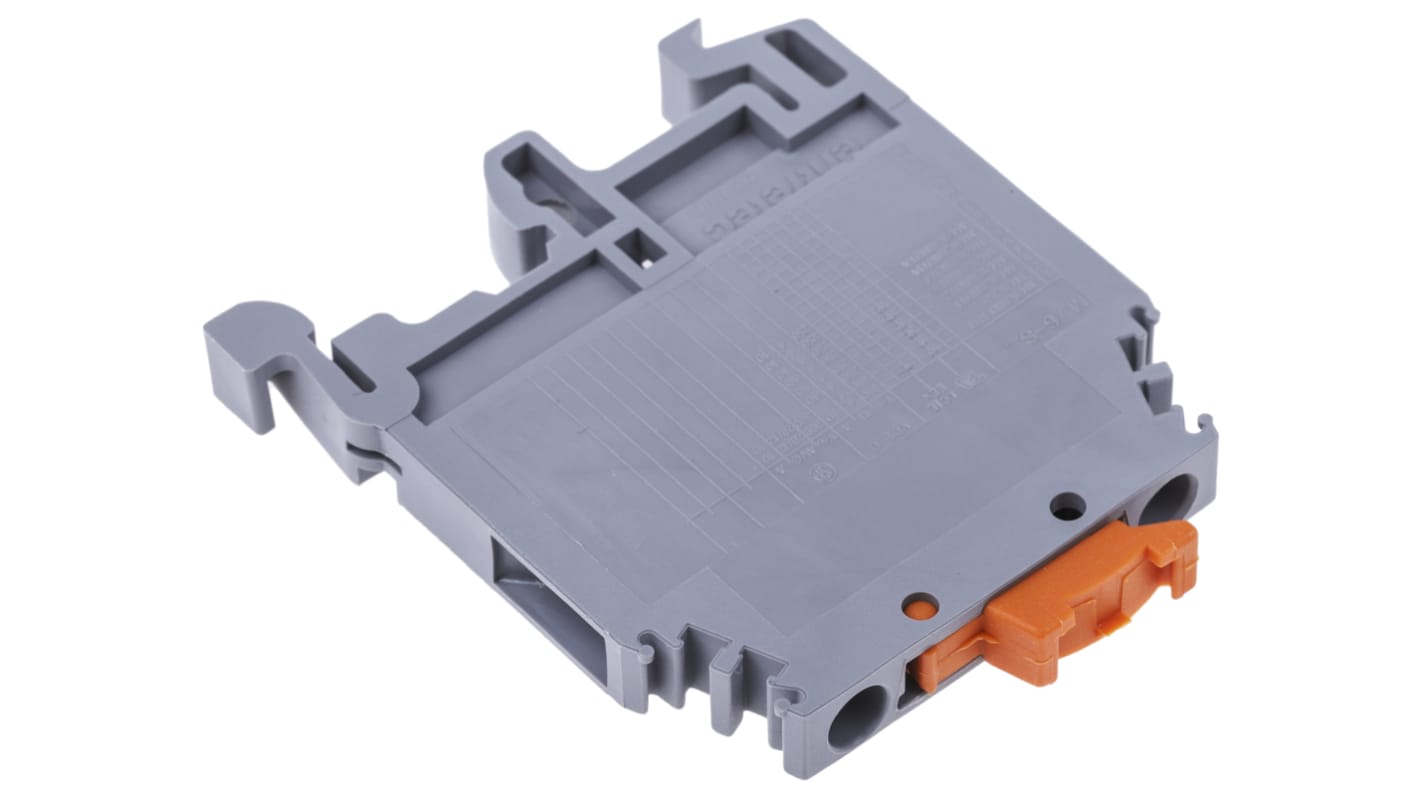

Entrelec 1SNA115986R0000 SNA Series Disconnect Terminal Block Grey, Orange, 4mm², 1-Level, Screw
- RS Stock No.:
- 627-3440
- Distrelec Article No.:
- 304-00-877
- Mfr. Part No.:
- 1SNA115986R0000
- Manufacturer:
- Entrelec
Subtotal (1 pack of 10 units)*
MYR152.25
FREE delivery for orders over RM 150.00
In Stock
- Plus 2,390 unit(s) shipping from 12 October 2026
- Plus 1,000 unit(s) shipping from 14 January 2027
- Plus 500 unit(s) shipping from 11 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | MYR15.225 | MYR152.25 |
*price indicative
- RS Stock No.:
- 627-3440
- Distrelec Article No.:
- 304-00-877
- Mfr. Part No.:
- 1SNA115986R0000
- Manufacturer:
- Entrelec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Grey, Orange | |
| Product Type | Disconnect Terminal Block | |
| Number of Levels | 1 | |
| Series | SNA | |
| Voltage | 400V ac | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Pitch | 6mm | |
| Minimum Operating Temperature | -5°C | |
| Terminal Block Current | 20A | |
| Termination Type | Screw | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CSA, cUL, EAC, EU Directive 2002/95/EC, CE | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Grey, Orange | ||
Product Type Disconnect Terminal Block | ||
Number of Levels 1 | ||
Series SNA | ||
Voltage 400V ac | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 10AWG | ||
Pitch 6mm | ||
Minimum Operating Temperature -5°C | ||
Terminal Block Current 20A | ||
Termination Type Screw | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CSA, cUL, EAC, EU Directive 2002/95/EC, CE | ||
Isolating Terminal
For circuit interruption during testing or maintenance routines.
5000 Universal Series
This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569
Note
Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only
Approvals
627-3456 is UL Listed and has SETI approval.
