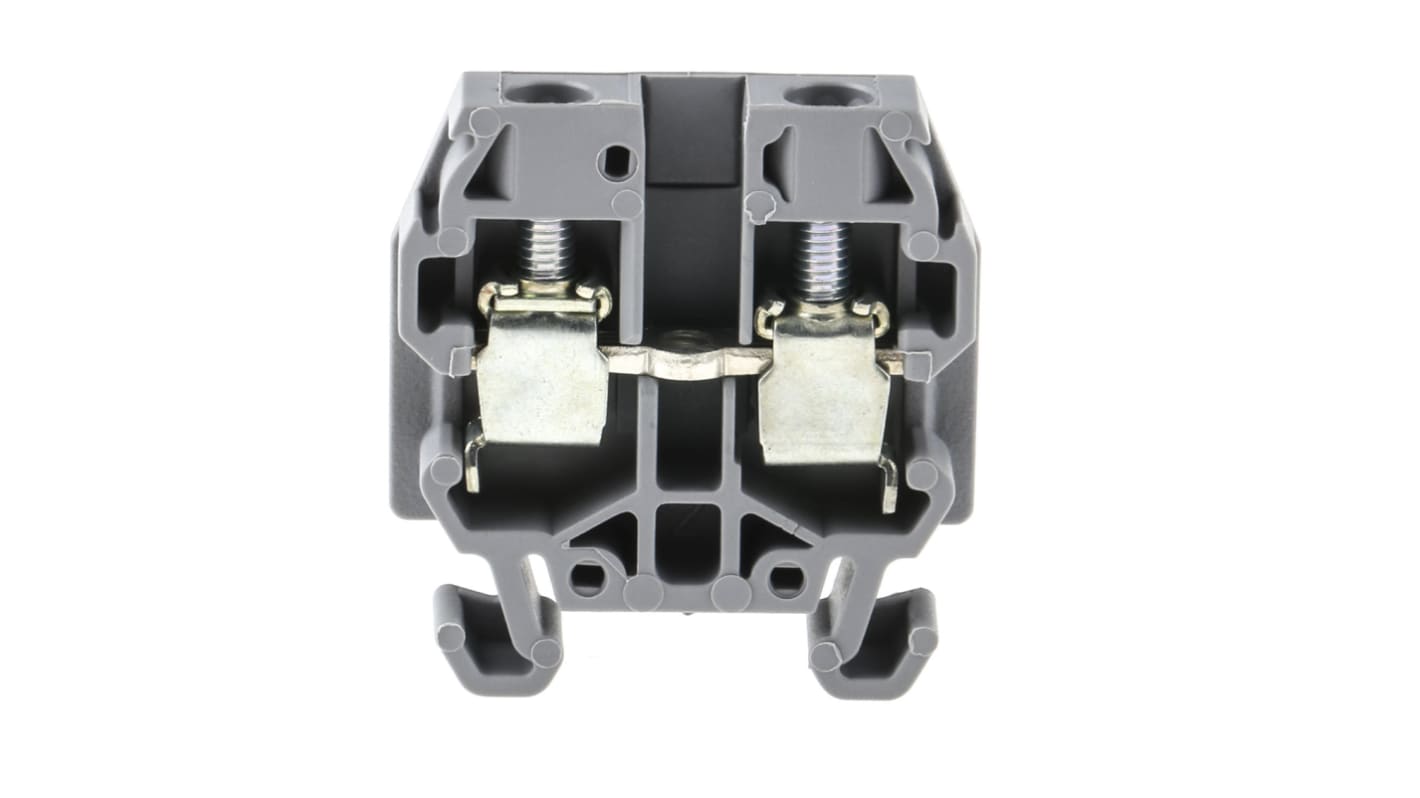

Entrelec 1SNA110491R1700 SNA Series DIN Rail Terminal Block Grey, 4mm², 1-Level, Screw
- RS Stock No.:
- 425-443
- Distrelec Article No.:
- 304-59-272
- Mfr. Part No.:
- 1SNA110491R1700
- Manufacturer:
- Entrelec
Subtotal (1 pack of 25 units)*
MYR227.45
FREE delivery for orders over RM 150.00
Temporarily out of stock
- 2,975 unit(s) shipping from 29 October 2026
- Plus 5,000 unit(s) shipping from 12 November 2026
- Plus 6,000 unit(s) shipping from 26 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 + | MYR9.098 | MYR227.45 |
*price indicative
- RS Stock No.:
- 425-443
- Distrelec Article No.:
- 304-59-272
- Mfr. Part No.:
- 1SNA110491R1700
- Manufacturer:
- Entrelec
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Product Type | DIN Rail Terminal Block | |
| Colour | Grey | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Voltage | 500V ac | |
| Series | SNA | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 6mm | |
| Minimum Operating Temperature | -5°C | |
| Termination Type | Screw | |
| Terminal Block Current | 30A | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Product Type DIN Rail Terminal Block | ||
Colour Grey | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Voltage 500V ac | ||
Series SNA | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 6mm | ||
Minimum Operating Temperature -5°C | ||
Termination Type Screw | ||
Terminal Block Current 30A | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
4mm2 Miniature Terminals
A miniature range of screw terminals designed for mounting onto symmetric rail. The terminals are moulded in tough flame-resistant nylon 6.6. The captive terminal screws have hardened heads to prevent burring.
Features and Benefits
• Standard terminals (grey or blue) and earth terminals (yellow/green) for conductors up to 4 mm2, terminal pitch 6 mm, depth on rail 31 mm
• Isolating terminal for conductors up to 2.5 mm², terminal pitch 5 mm, depth on rail 39 mm
• Working temperature range -55°C to 130°C
Standards
BS 6273:1982, EN 50 045, DIN 46277-2
