Phoenix Contact QUINT-PS/3AC/48DC/20 Switched Mode DIN Rail Power Supply, 320 → 575V ac ac Input, 48V dc dc
- RS Stock No.:
- 751-2579
- Mfr. Part No.:
- 2320827
- Manufacturer:
- Phoenix Contact
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR5,636.27
You pay
MYR4,673.51
Units | Per Unit |
1 + | MYR4,673.51 |
- RS Stock No.:
- 751-2579
- Mfr. Part No.:
- 2320827
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details

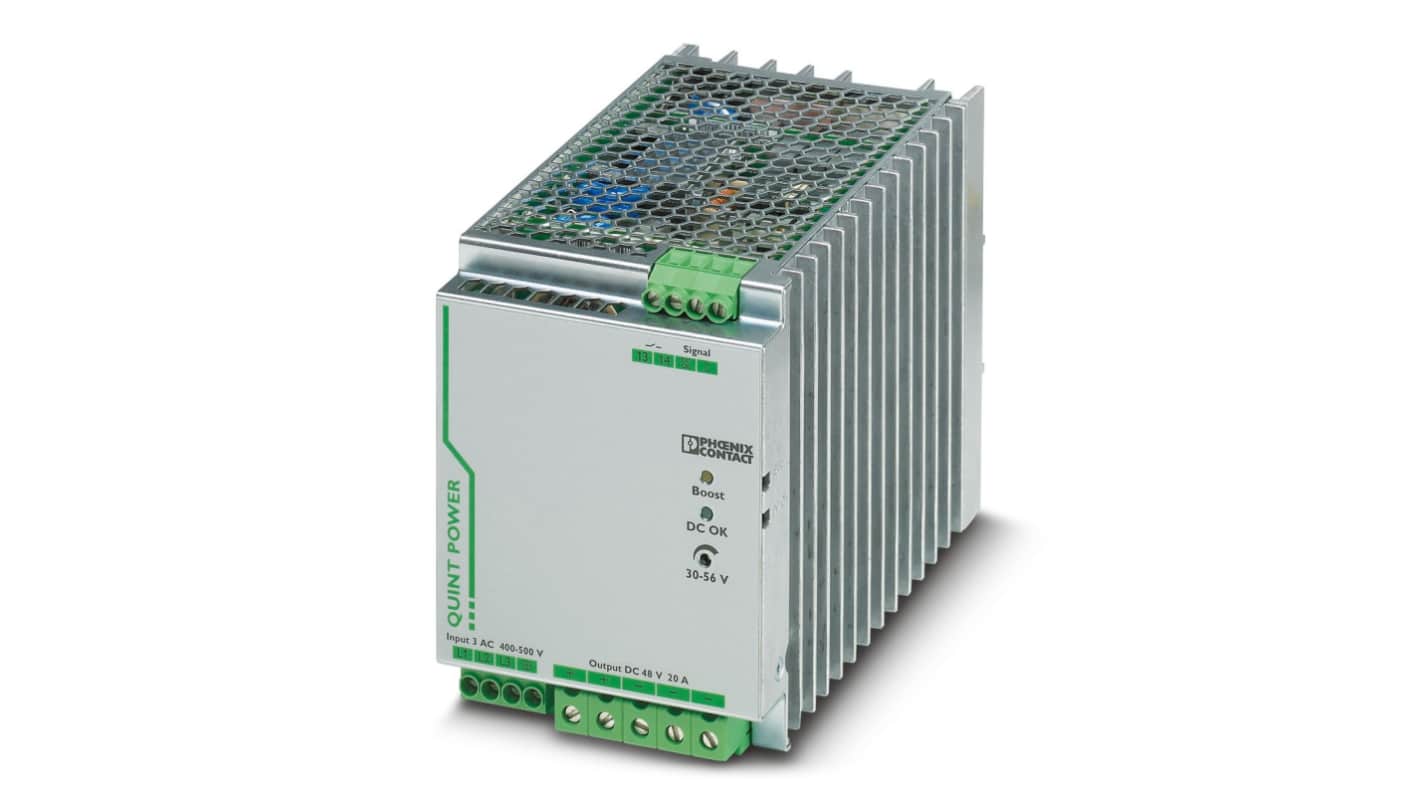

Phoenix Contact DIN Rail Power Supply, 960W Power Rating, Screw Terminals - QUINT-PS/3AC/48DC/20 - 2320827
To keep a close eye on your industrial circuit, use this Phoenix Contact DIN rail power supply. Its preventive monitoring function supports high system availability, as it quickly identifies and reports dangerous operating states before any damaging errors occur. This cuts down on maintenance and keeps production on the go.
Smart selective fuse-breaking technology means loads connected in parallel don't shut down when an MCB is tripped. A robust metal housing combined with durable screw terminals makes the unit safe for use in harsh environments where shocks and vibrations are expected.
With an adjustable output voltage range between 30 and 56V DC, this power supply is suitable for switching electrical loads to various industrial equipment, including motors, security devices and sensors. As it meets IEC 60601-1 EMC standards for medical equipment, it's also a practical choice for healthcare facilities.
Smart selective fuse-breaking technology means loads connected in parallel don't shut down when an MCB is tripped. A robust metal housing combined with durable screw terminals makes the unit safe for use in harsh environments where shocks and vibrations are expected.
With an adjustable output voltage range between 30 and 56V DC, this power supply is suitable for switching electrical loads to various industrial equipment, including motors, security devices and sensors. As it meets IEC 60601-1 EMC standards for medical equipment, it's also a practical choice for healthcare facilities.
Features & Benefits
• IP20-rated housing is touch-proof and protected against objects larger than 12mm
• Compact dimensions of 130 (H) x 96 (W) x 179mm (D) mean it uses minimal cabinet space
• Insulated, so you're shielded from electric shocks
• Power boost function to help you start demanding loads
• Compact dimensions of 130 (H) x 96 (W) x 179mm (D) mean it uses minimal cabinet space
• Insulated, so you're shielded from electric shocks
• Power boost function to help you start demanding loads
Specifications
Attribute | Value |
---|---|
Type | Switched Mode |
Output Voltage | 48V dc |
Output Current | 20A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 320 → 575V ac |
Power Rating | 960W |
Electrical Phase | 3 |
Number of Outputs | 1 |
Height | 130mm |
Width | 96mm |
Depth | 130mm |
Series | QUINT-PS/3AC/48DC/20 |
Load Regulation | ±1% |
Mounting Type | DIN Rail Mount |
Ripple And Noise | 50mV Pk-Pk |
MTBF | >509000 (40 °C) h, >890000 (25 °C) h |
Maximum Temperature | +70°C |
Minimum Temperature | -25°C |
Efficiency | >93% |
