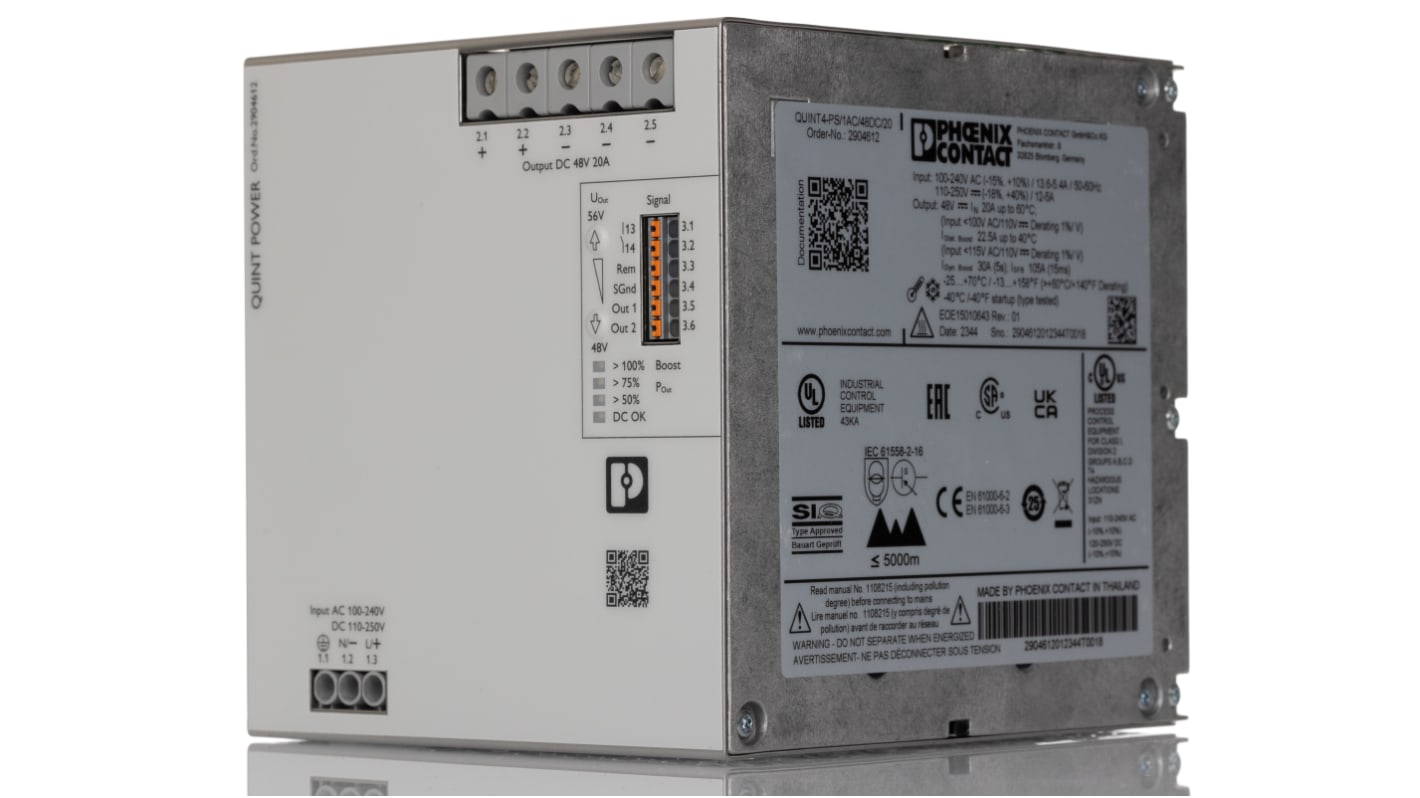

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 48V dc dc Output, 20A
- RS Stock No.:
- 265-9116
- Mfr. Part No.:
- 2904612
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)**
MYR3,081.87
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR3,081.87 |
**price indicative
- RS Stock No.:
- 265-9116
- Mfr. Part No.:
- 2904612
- Manufacturer:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | QUINT POWER | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 48V dc | |
Output Current | 20A | |
Height | 130mm | |
Width | 120mm | |
Depth | 140mm | |
Minimum Temperature | -25°C | |
Model | QUINT4-PS/1AC/48DC/20 | |
Standards Met | EAC Certified, IECEE CB Scheme Certified | |
Output Voltage Adjustment Range | 48 → 56V | |
Efficiency | 96.2% | |
Mounting Type | DIN Rail | |
MTBF | >949000h | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 48V dc | ||
Output Current 20A | ||
Height 130mm | ||
Width 120mm | ||
Depth 140mm | ||
Minimum Temperature -25°C | ||
Model QUINT4-PS/1AC/48DC/20 | ||
Standards Met EAC Certified, IECEE CB Scheme Certified | ||
Output Voltage Adjustment Range 48 → 56V | ||
Efficiency 96.2% | ||
Mounting Type DIN Rail | ||
MTBF >949000h | ||
Maximum Temperature +70°C | ||
