MPN

Bourdon Dial Thermometer 70 °C, TBI100-254.146.51T

Name: Bourdon Dial Thermometer 70 °C, TBI100-254.146.51T
Brand: Bourdon
SKU: 254-0085
Price: 1470.00 MYR
Availability: InStock

Subtotal (1 unit)*

MYR1,470.00

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,470.00

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourdon
	Maximum Temperature Measurement	70°C
	Product Type	Dial Thermometer
	Accuracy	Class 1
	Temperature Scale	°C, F
	Application	Machinery, Waste Water, Gas, Chemical, Food & Beverage, Energy, Water, Oil
	Dial Size	100mm
	Back Mount/Lower Mount	Back
	Standards/Approvals	II2GDc, EN 13190
	Case Material	Stainless Steel

	Select all
	Brand Bourdon
	Maximum Temperature Measurement 70°C
	Product Type Dial Thermometer
	Accuracy Class 1
	Temperature Scale °C, F
	Application Machinery, Waste Water, Gas, Chemical, Food & Beverage, Energy, Water, Oil
	Dial Size 100mm
	Back Mount/Lower Mount Back
	Standards/Approvals II2GDc, EN 13190
	Case Material Stainless Steel

RoHS Status: Exempt

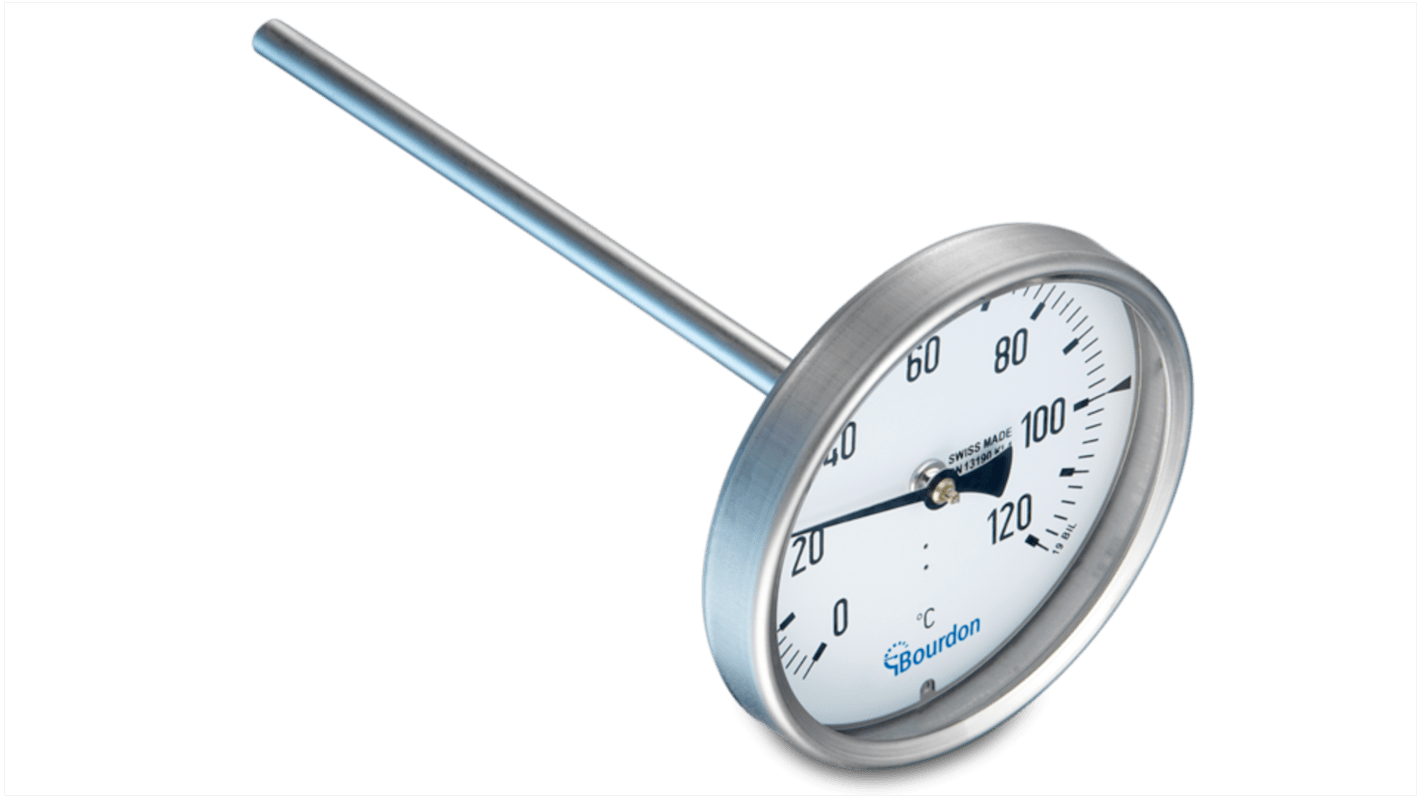

The Bourdon TBI100 is industry Line bimetallic dry thermometer Ø 100 with brass stem Ø6mm orientable type.

For corrosive gasses and liquids

Class 1 and 2 according to EN 13190

Wetted parts Stainless steel

Option : case material 1.4404 (316L) for aggressive atmosphere
