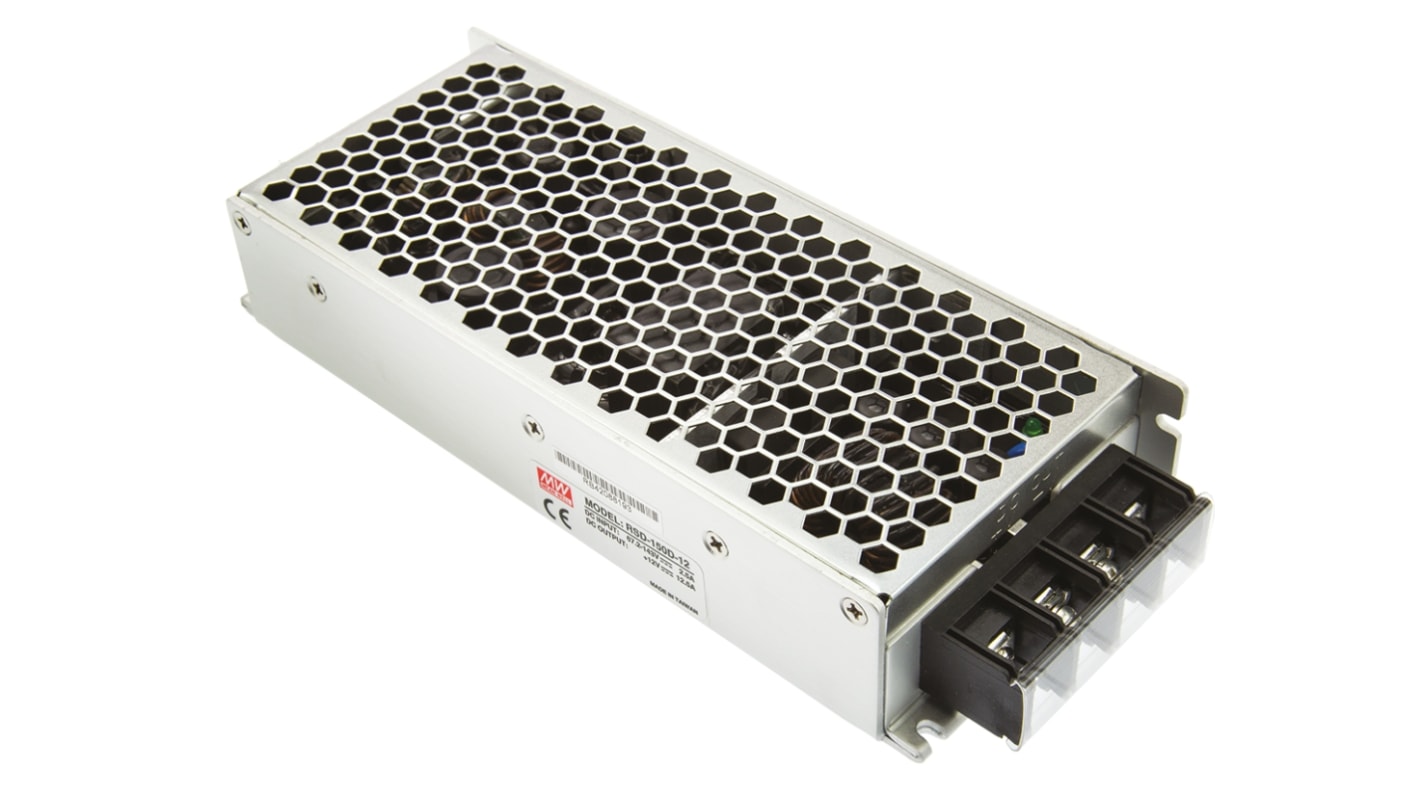

MEAN WELL RSD 150 DC-DC Converter, 12V dc/ 12.5A Output, 67.2 → 143 V dc Input, 150W, Chassis Mount, +70°C Max
- RS Stock No.:
- 753-7859
- Distrelec Article No.:
- 301-56-953
- Mfr. Part No.:
- RSD-150D-12
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)**
MYR465.97
17 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR465.97 |
| 5 - 9 | MYR456.18 |
| 10 - 24 | MYR442.49 |
| 25 - 49 | MYR431.62 |
| 50 + | MYR422.16 |
**price indicative
- RS Stock No.:
- 753-7859
- Distrelec Article No.:
- 301-56-953
- Mfr. Part No.:
- RSD-150D-12
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 67.2 → 143 V dc | |
| Power Rating | 150W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 12.5A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 4kV dc | |
| Depth | 36mm | |
| Length | 189mm | |
| Railway Approved | Yes | |
| Series | RSD 150 | |
| Load Regulation | ±1% | |
| Minimum Temperature | -40°C | |
| Medical Approved | No | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Input Voltage Range 67.2 → 143 V dc | ||
Power Rating 150W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 12.5A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 4kV dc | ||
Depth 36mm | ||
Length 189mm | ||
Railway Approved Yes | ||
Series RSD 150 | ||
Load Regulation ±1% | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
Maximum Temperature +70°C | ||
