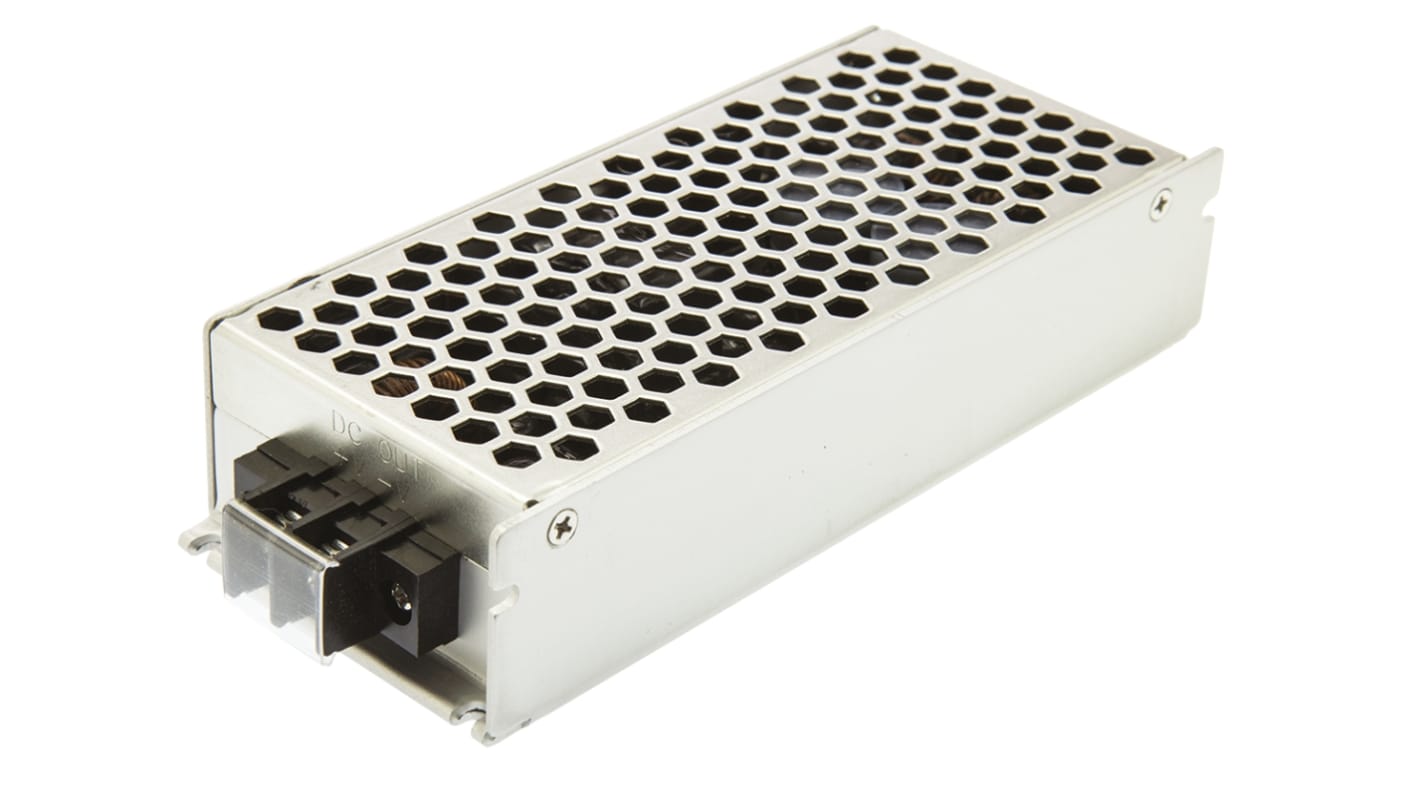

MEAN WELL RSD 100 DC-DC Converter, 24V dc/ 4.2A Output, 57.6 → 154 V dc Input, 100.8W, Chassis Mount, +70°C Max
- RS Stock No.:
- 721-2468
- Distrelec Article No.:
- 169-26-454
- Mfr. Part No.:
- RSD-100D-24
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)**
MYR358.04
82 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR358.04 |
| 5 - 9 | MYR350.53 |
| 10 - 24 | MYR340.02 |
| 25 - 49 | MYR331.65 |
| 50 + | MYR324.39 |
**price indicative
- RS Stock No.:
- 721-2468
- Distrelec Article No.:
- 169-26-454
- Mfr. Part No.:
- RSD-100D-24
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 57.6 → 154 V dc | |
| Power Rating | 100.8W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 4.2A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 4kV dc | |
| Depth | 36mm | |
| Length | 161mm | |
| Series | RSD 100 | |
| Railway Approved | Yes | |
| Load Regulation | ±1% | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 24V dc | ||
Input Voltage Range 57.6 → 154 V dc | ||
Power Rating 100.8W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 4.2A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 4kV dc | ||
Depth 36mm | ||
Length 161mm | ||
Series RSD 100 | ||
Railway Approved Yes | ||
Load Regulation ±1% | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
