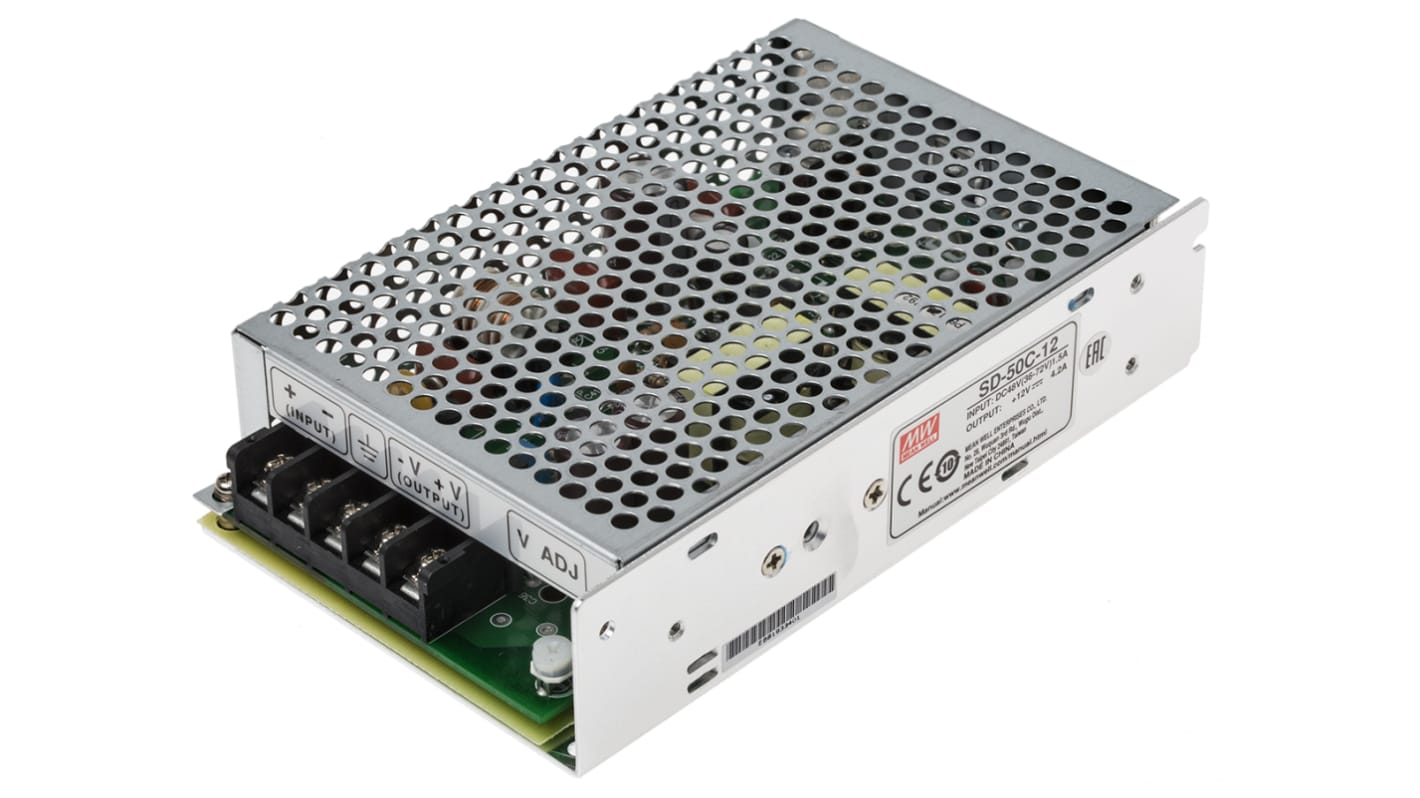

MEAN WELL DC-DC Converter, 12V dc/ 4.2A Output, 36 → 72 V dc Input, 50W, Chassis Mount, +60°C Max Temp -10°C Min
- RS Stock No.:
- 678-3574
- Mfr. Part No.:
- SD-50C-12
- Manufacturer:
- MEAN WELL
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR186.59
Units | Per Unit |
1 - 4 | MYR186.59 |
5 - 9 | MYR182.69 |
10 - 24 | MYR177.21 |
25 - 49 | MYR172.87 |
50 + | MYR169.10 |
- RS Stock No.:
- 678-3574
- Mfr. Part No.:
- SD-50C-12
- Manufacturer:
- MEAN WELL
Technical data sheets
Legislation and Compliance
Product Details
SD-50 Series Single Output Enclosed Regulated Isolated DC-DC Converter
High reliability
Wide 2:1 input voltage range
Regulated outputs
Easy installation - screw terminals
Adjustable output voltage
EMC meets EN 55022 Class B
LED power-on indicator
Short circuit, overload and overvoltage protection
1.5kV input / output isolation
Wide 2:1 input voltage range
Regulated outputs
Easy installation - screw terminals
Adjustable output voltage
EMC meets EN 55022 Class B
LED power-on indicator
Short circuit, overload and overvoltage protection
1.5kV input / output isolation
Note
De-rating below 0 and above 40°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 36 → 72 V dc |
Power Rating | 50W |
Input Voltage Nominal | 48 V dc |
Output Current | 4.2A |
Mounting Type | Chassis Mount |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | 11 → 16V |
Isolation Voltage | 1.5kV ac |
Width | 97mm |
Depth | 38mm |
Length | 159mm |
Load Regulation | ±0.3% |
Efficiency | 78% |
Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A |
Maximum Temperature | +60°C |
Minimum Temperature | -10°C |
