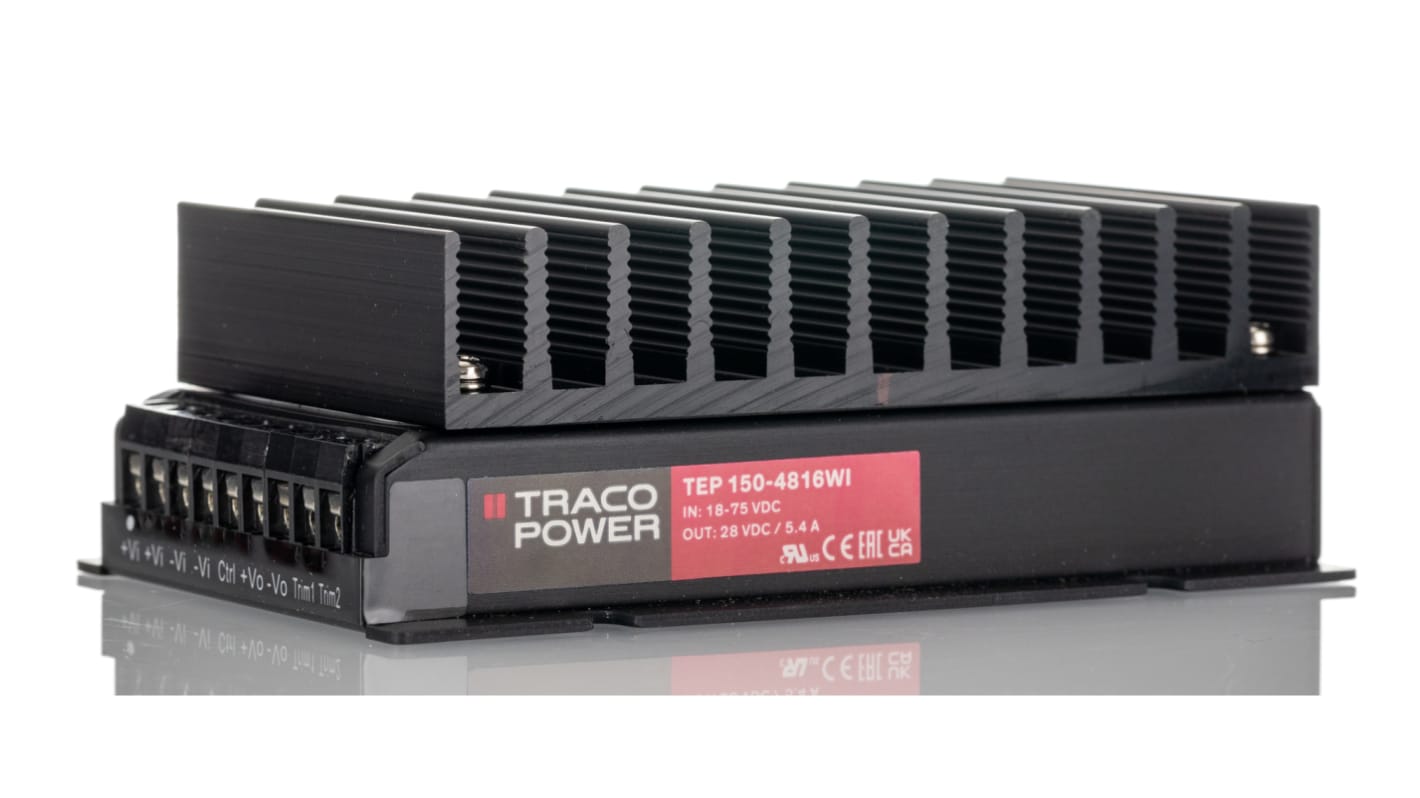

TRACOPOWER TEP 150WI DC-DC Converter, 28V dc/ 6.3A Output, 18 → 75 V dc Input, 150W, Through Hole, +75°C Max
- RS Stock No.:
- 666-2862
- Mfr. Part No.:
- TEP 150-4816WI
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR1,096.88
24 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR1,096.88 |
| 5 - 9 | MYR1,063.97 |
| 10 - 24 | MYR1,031.06 |
| 25 - 49 | MYR1,009.13 |
| 50 + | MYR987.18 |
**price indicative
- RS Stock No.:
- 666-2862
- Mfr. Part No.:
- TEP 150-4816WI
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 28V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 150W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 6.3A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 0 → +20% | |
| Package | Enclosed | |
| Isolation Voltage | 2.25kV dc | |
| Length | 98mm | |
| Width | 65mm | |
| Depth | 34mm | |
| Series | TEP 150WI | |
| Railway Approved | Yes | |
| Load Regulation | ±0.4% | |
| Efficiency | 89% | |
| Maximum Temperature | +75°C | |
| Minimum Temperature | -40°C | |
| Medical Approved | No | |
| Standards Met | EN 60950-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 28V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 150W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 6.3A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 0 → +20% | ||
Package Enclosed | ||
Isolation Voltage 2.25kV dc | ||
Length 98mm | ||
Width 65mm | ||
Depth 34mm | ||
Series TEP 150WI | ||
Railway Approved Yes | ||
Load Regulation ±0.4% | ||
Efficiency 89% | ||
Maximum Temperature +75°C | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
Standards Met EN 60950-1 | ||
