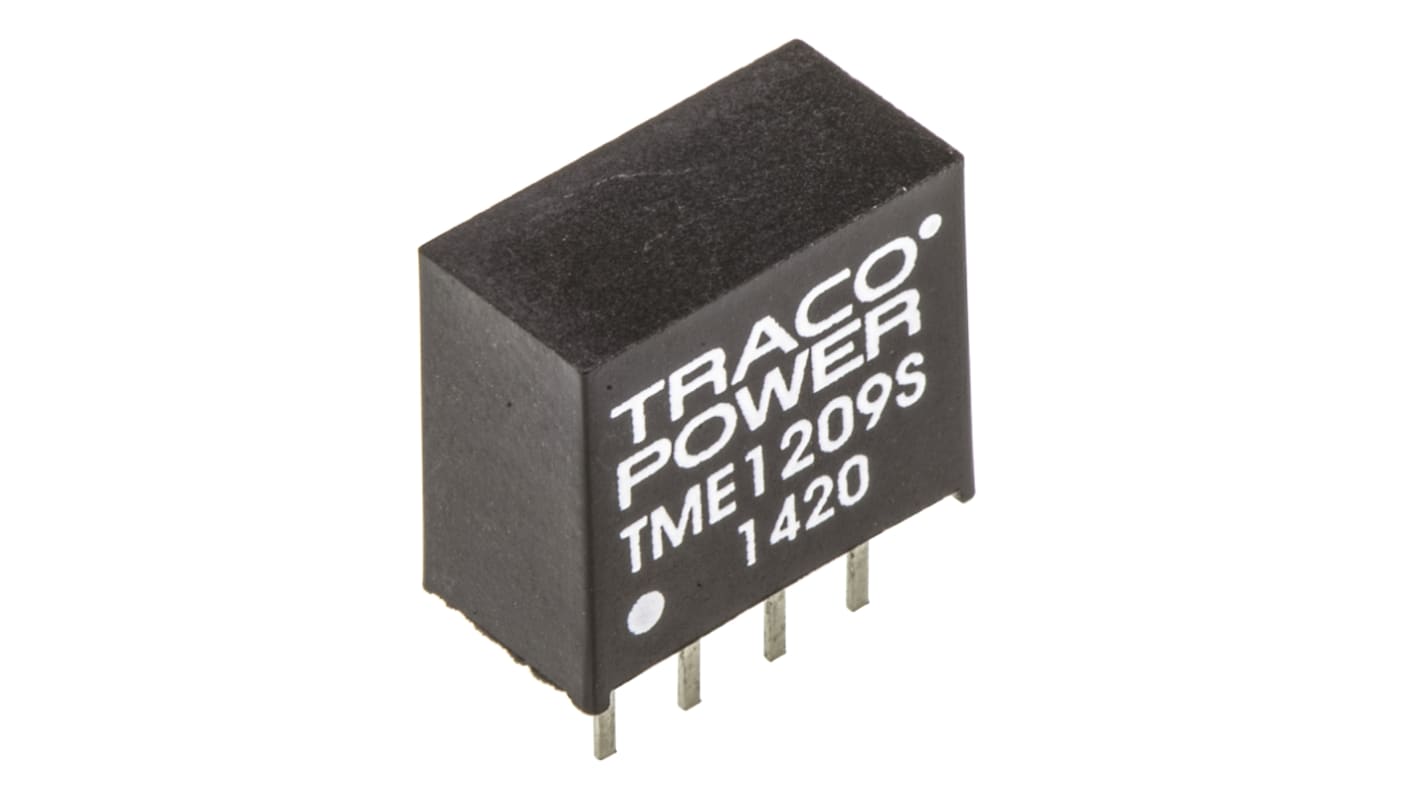

TRACOPOWER TME DC-DC Converter, 9V dc/ 110mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp

The Traco Power TME series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The full SMD design of these isolated converters makes it possible to offer a product with high performance at a low cost. The TME DC-DC converters require only 0.7 cm2 board space and are the perfect solution for space-critical industrial applications for board level power distribution.

• Operating temperature (–40°C to +85°C), Storage temperature (–50°C to +125°C), Case temperature (Max. +90°C)

• Reverse polarity input current 0.3 A max.
• Reflected input ripple current can be reduced by ext. 1 – 3.3 μF polyester film capacitor
• Input filter Internal capacitors

• Capacitive load of 33 μF max

• Output Voltage of 9V dc
• Input Voltage Nominal 12V dc
• Easy to install through-hole mounting
• 77% efficiency rating
• SIP 4 package type
