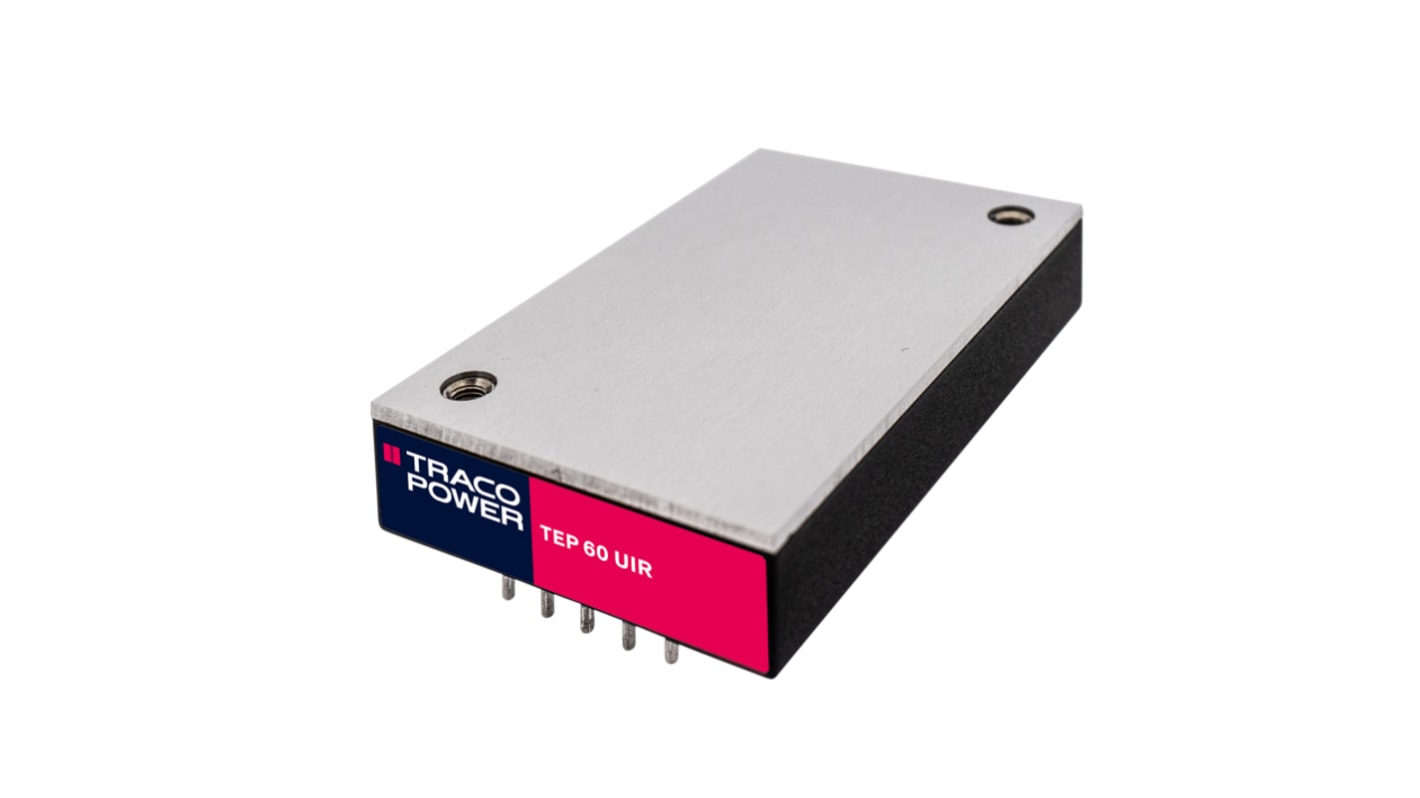

TRACOPOWER TEP 60UIR DC-DC Converter, 24V dc/ 2.5A Output, 14 → 160 V dc Input, 60W, Through Hole, +85°C Max
- RS Stock No.:
- 210-2561
- Distrelec Article No.:
- 302-24-819
- Mfr. Part No.:
- TEP 60-7215UIR
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR694.17
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR694.17 |
| 5 - 9 | MYR683.77 |
| 10 - 24 | MYR676.82 |
| 25 - 49 | MYR638.65 |
| 50 + | MYR624.75 |
**price indicative
- RS Stock No.:
- 210-2561
- Distrelec Article No.:
- 302-24-819
- Mfr. Part No.:
- TEP 60-7215UIR
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 14 → 160 V dc | |
| Power Rating | 60W | |
| Input Voltage Nominal | 72 V dc | |
| Output Current | 2.5A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -20 → +10% | |
| Package | 2.3 x 1.45 x 0.5 in | |
| Isolation Voltage | 3kV | |
| Width | 36.8mm | |
| Depth | 12.7mm | |
| Length | 57.9mm | |
| Series | TEP 60UIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.1% | |
| Standards Met | IEC/EN 62368-1 | |
| Medical Approved | No | |
| Efficiency | 90% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 14 → 160 V dc | ||
Power Rating 60W | ||
Input Voltage Nominal 72 V dc | ||
Output Current 2.5A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -20 → +10% | ||
Package 2.3 x 1.45 x 0.5 in | ||
Isolation Voltage 3kV | ||
Width 36.8mm | ||
Depth 12.7mm | ||
Length 57.9mm | ||
Series TEP 60UIR | ||
Railway Approved Yes | ||
Load Regulation 0.1% | ||
Standards Met IEC/EN 62368-1 | ||
Medical Approved No | ||
Efficiency 90% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
