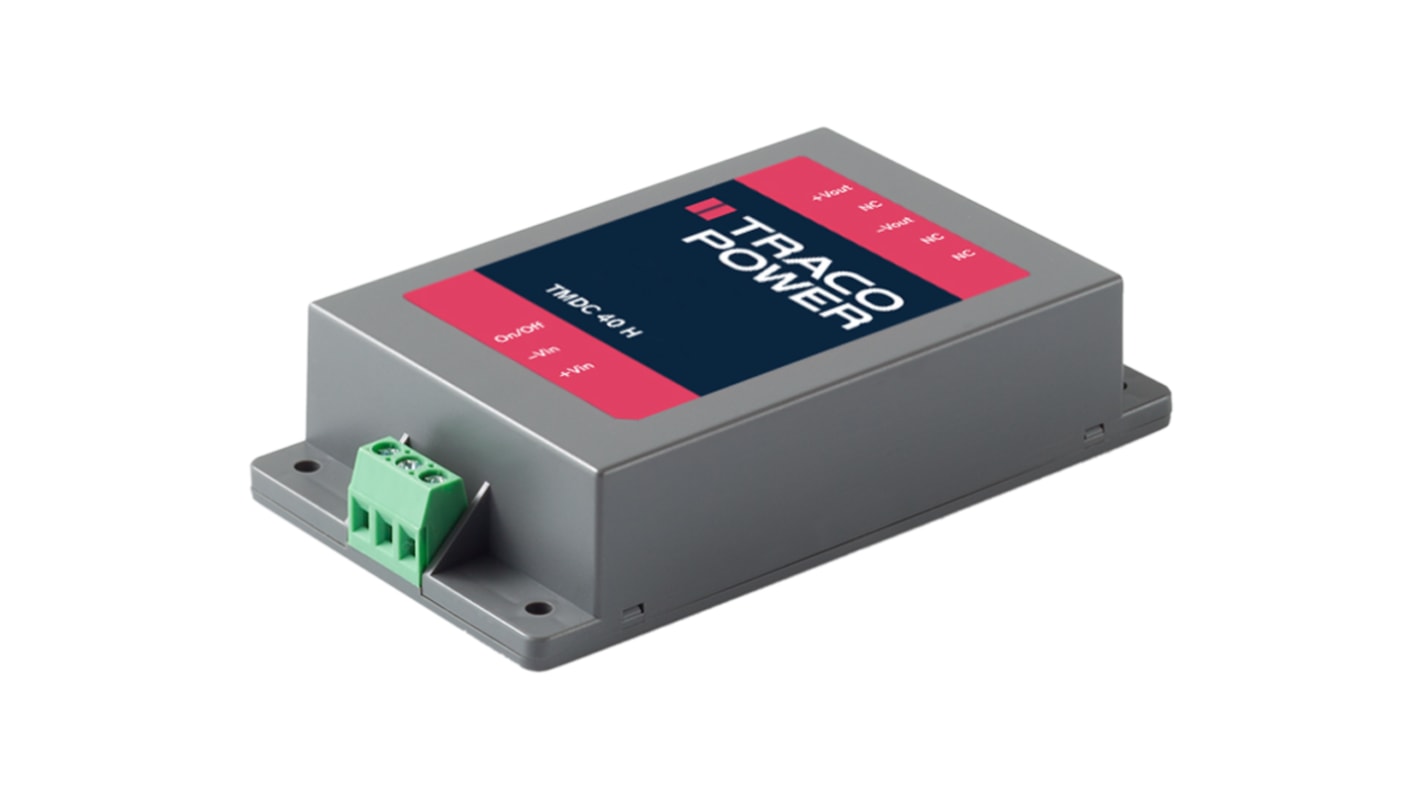

TRACOPOWER TMDC 40H DC-DC Converter, 5.1V dc/ 8A Output, 80 → 160 V dc Input, 40W, Chassis Mount, +90°C Max Temp
- RS Stock No.:
- 201-0064
- Distrelec Article No.:
- 302-24-868
- Mfr. Part No.:
- TMDC 40-7211H
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
MYR413.05
FREE delivery for orders over RM 500.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR413.05 |
| 5 - 9 | MYR400.66 |
| 10 - 24 | MYR388.28 |
| 25 - 49 | MYR380.04 |
| 50 + | MYR371.78 |
*price indicative
- RS Stock No.:
- 201-0064
- Distrelec Article No.:
- 302-24-868
- Mfr. Part No.:
- TMDC 40-7211H
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5.1V dc | |
| Input Voltage Range | 80 → 160 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 8A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -2 → +2% | |
| Isolation Voltage | 3kV | |
| Depth | 25.6mm | |
| Width | 63.8mm | |
| Length | 112mm | |
| Railway Approved | No | |
| Series | TMDC 40H | |
| Load Regulation | 0.01 | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
| Efficiency | 0.87 | |
| Maximum Temperature | +90°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5.1V dc | ||
Input Voltage Range 80 → 160 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 8A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -2 → +2% | ||
Isolation Voltage 3kV | ||
Depth 25.6mm | ||
Width 63.8mm | ||
Length 112mm | ||
Railway Approved No | ||
Series TMDC 40H | ||
Load Regulation 0.01 | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Efficiency 0.87 | ||
Maximum Temperature +90°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The Traco Power TMDC 40H series isolated converters works on TMDC line of Industrial DC/DC off-board modules. This converter provide a high 2:1 input voltage and a reinforced 3000 VAC isolation voltage as well as fully regulated outputs. The modules comes in fully encapsulated plastic packages.
Voltage ranges from 80 to 160VDC
Operating temperature ranges from -40 to +75°C
Integrated filters for immunity (EN 55035) & emission (EN 55032)
Protection against overload voltage
Protection against Undervoltage and short circuit
Operating temperature ranges from -40 to +75°C
Integrated filters for immunity (EN 55035) & emission (EN 55032)
Protection against overload voltage
Protection against Undervoltage and short circuit
