Tube(s)	Per Tube	Per Unit**
1 - 1	MYR6,096.17	MYR609.617
2 - 3	MYR5,962.06	MYR596.206
4 +	MYR5,834.02	MYR583.402

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	±15V dc
	Input Voltage Range	18 → 75 V dc
	Power Rating	60W
	Input Voltage Nominal	48 V dc
	Output Current	2A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Output Voltage Adjustment Range	-10 → +20%
	Package	2 x 1 in
	Isolation Voltage	1.6kV dc
	Width	50.8mm
	Depth	10.2mm
	Length	25.4mm
	Railway Approved	No
	Series	TEN 60WIN
	Load Regulation	0.005
	Maximum Temperature	+85°C
	Medical Approved	No
	Efficiency	91%
	Minimum Temperature	-40°C
	Standards Met	IEC/EN 62368-1

	Select all
	Brand TRACOPOWER
	Output Voltage ±15V dc
	Input Voltage Range 18 → 75 V dc
	Power Rating 60W
	Input Voltage Nominal 48 V dc
	Output Current 2A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Output Voltage Adjustment Range -10 → +20%
	Package 2 x 1 in
	Isolation Voltage 1.6kV dc
	Width 50.8mm
	Depth 10.2mm
	Length 25.4mm
	Railway Approved No
	Series TEN 60WIN
	Load Regulation 0.005
	Maximum Temperature +85°C
	Medical Approved No
	Efficiency 91%
	Minimum Temperature -40°C
	Standards Met IEC/EN 62368-1

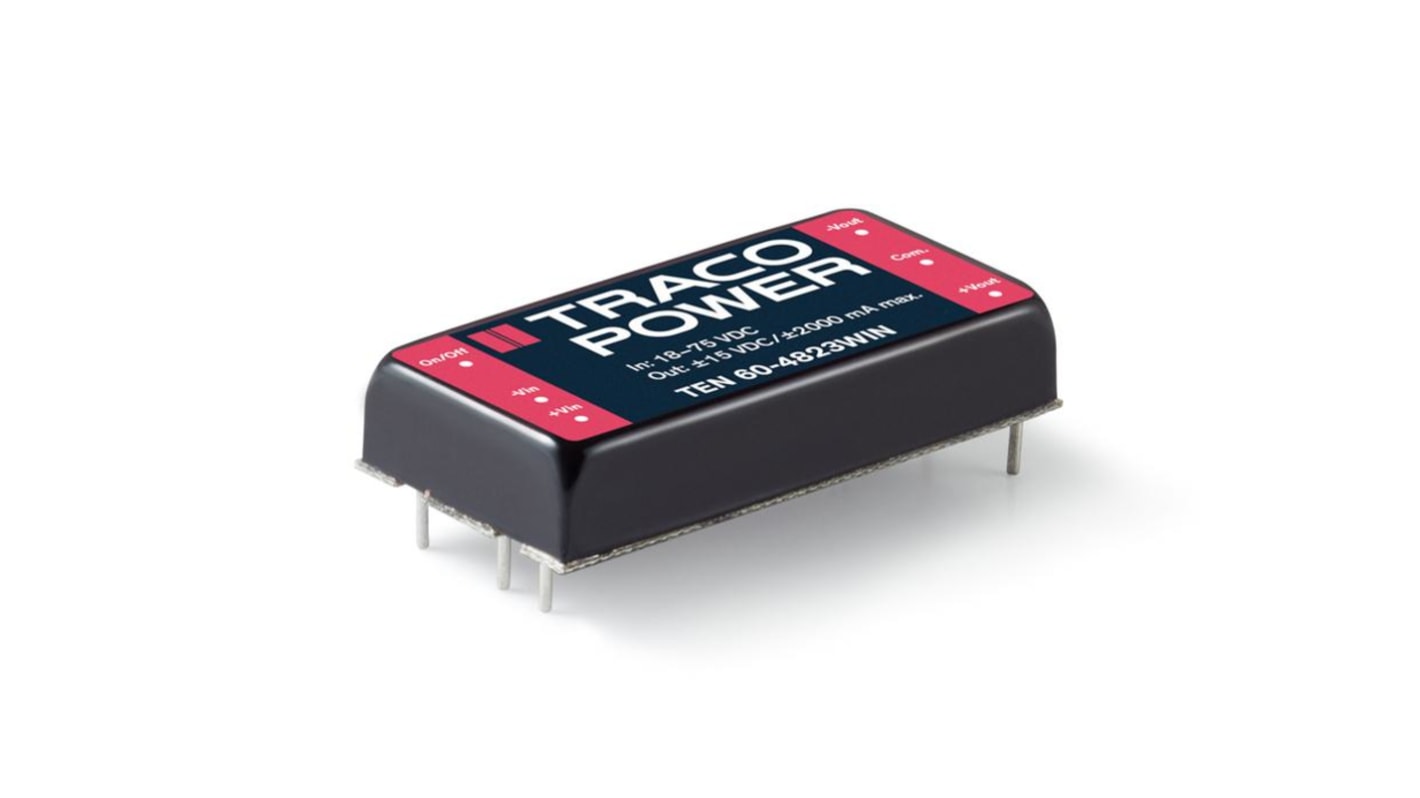

TRACOPOWER TEN 60WIN DC-DC Converter, ±15V dc/ 2A Output, 18 → 75 V dc Input, 60W, Through Hole, +85°C Max Temp

FREE delivery for orders over MYR500.00

TRACOPOWER TEN 60WIN Series DC-DC Converter, 0.91 Efficiency, 1.5kV DC Isolation Voltage - TEN 60-4823WIN

Features & Benefits

Applications

Can it handle varying output loads?

Is it suitable for outdoor applications?

How can I ensure safe installation?

What maintenance does it require?
