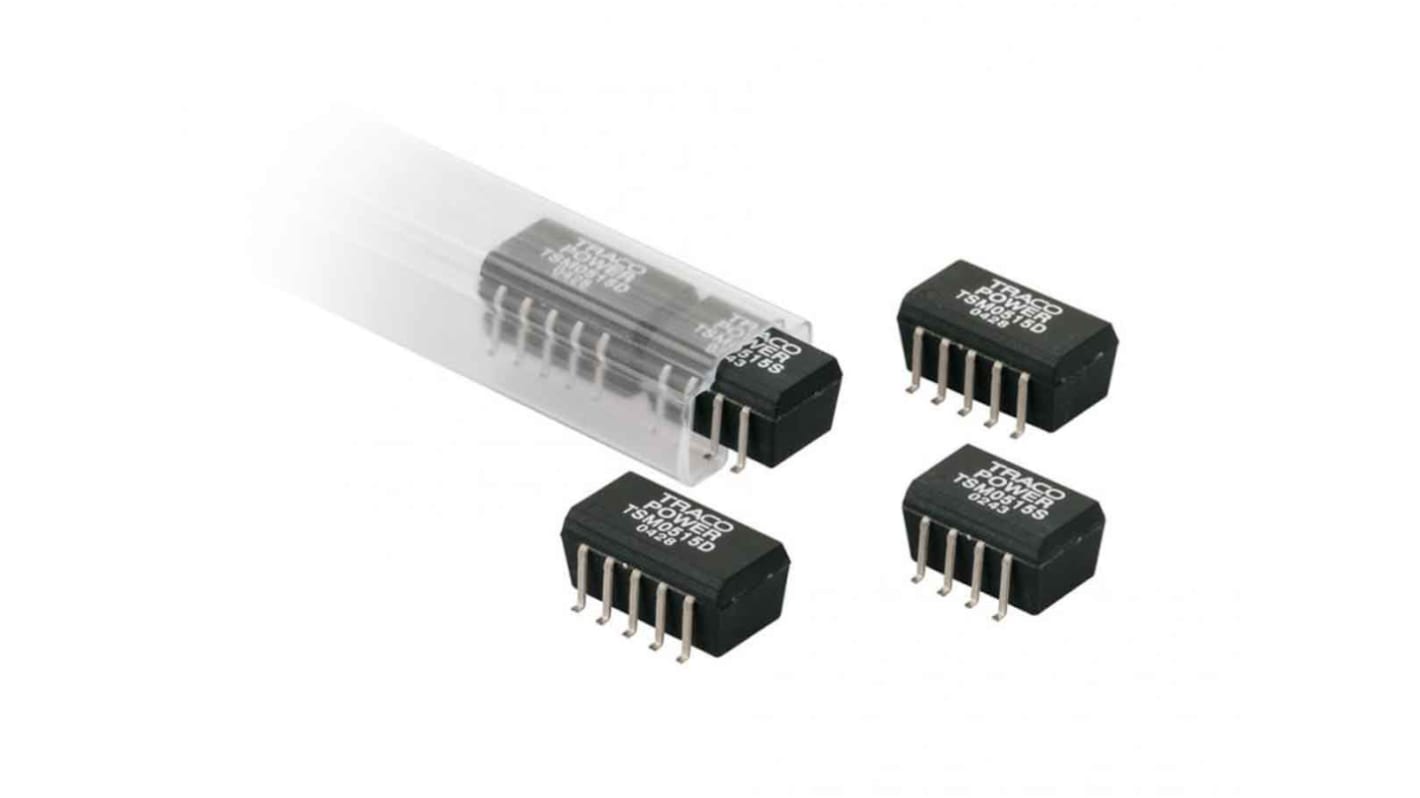

TRACOPOWER TSM DC-DC Converter, 9V dc/ 110mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +85°C Max Temp
- RS Stock No.:
- 200-8372
- Mfr. Part No.:
- TSM 0509S
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)**
MYR449.66
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Tube(s) | Per Tube | Per Unit** |
|---|---|---|
| 1 - 1 | MYR449.66 | MYR44.966 |
| 2 - 3 | MYR439.77 | MYR43.977 |
| 4 + | MYR430.33 | MYR43.033 |
**price indicative
- RS Stock No.:
- 200-8372
- Mfr. Part No.:
- TSM 0509S
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 9V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 110mA | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -20 → +10% | |
| Package | SMD | |
| Isolation Voltage | 1kV dc | |
| Depth | 6.8mm | |
| Length | 12.7mm | |
| Width | 8mm | |
| Series | TSM | |
| Railway Approved | No | |
| Load Regulation | 0.01 | |
| Minimum Temperature | -40°C | |
| Efficiency | 0.78 | |
| Maximum Temperature | +85°C | |
| Medical Approved | No | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 110mA | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -20 → +10% | ||
Package SMD | ||
Isolation Voltage 1kV dc | ||
Depth 6.8mm | ||
Length 12.7mm | ||
Width 8mm | ||
Series TSM | ||
Railway Approved No | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Efficiency 0.78 | ||
Maximum Temperature +85°C | ||
Medical Approved No | ||
