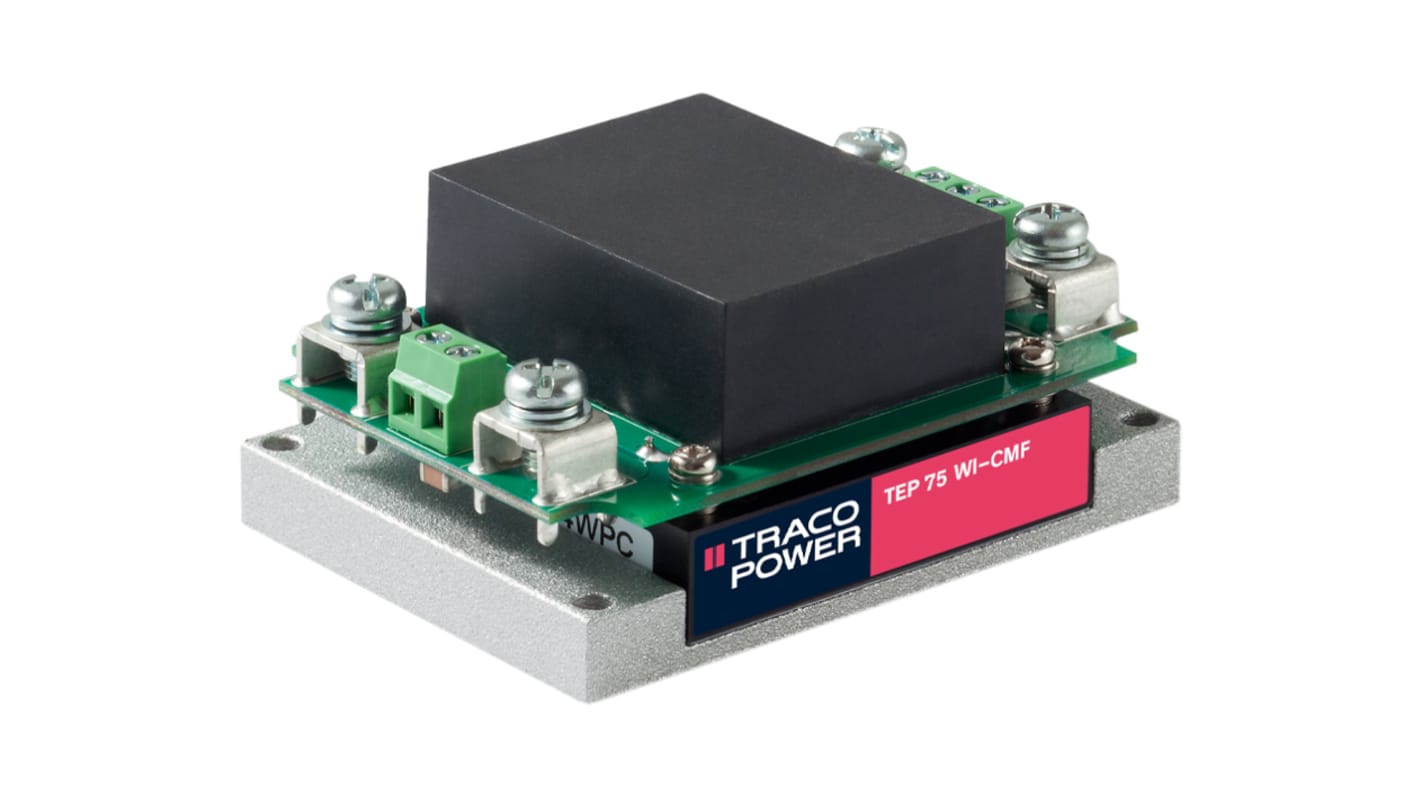

TRACOPOWER TEP-75WI DC-DC Converter, 24V dc/ 3.2A Output, 43 → 160 V dc Input, 75W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 198-4633
- Mfr. Part No.:
- TEP 75-7215WI-CMF
- Manufacturer:
- TRACOPOWER
Subtotal (1 unit)**
MYR1,219.35
Temporarily out of stock - back order for despatch 01/12/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 + | MYR1,219.35 |
**price indicative
- RS Stock No.:
- 198-4633
- Mfr. Part No.:
- TEP 75-7215WI-CMF
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 24V dc | |
Input Voltage Range | 43 → 160 V dc | |
Power Rating | 75W | |
Input Voltage Nominal | 72 V dc | |
Output Current | 3.2A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Output Voltage Adjustment Range | -20 → +10% | |
Isolation Voltage | 2.25kV | |
Width | 61mm | |
Depth | 40.5mm | |
Length | 85mm | |
Railway Approved | Yes | |
Series | TEP-75WI | |
Load Regulation | 0.001 | |
Efficiency | 0.9 | |
Medical Approved | No | |
Minimum Temperature | -40°C | |
Maximum Temperature | +75°C | |
