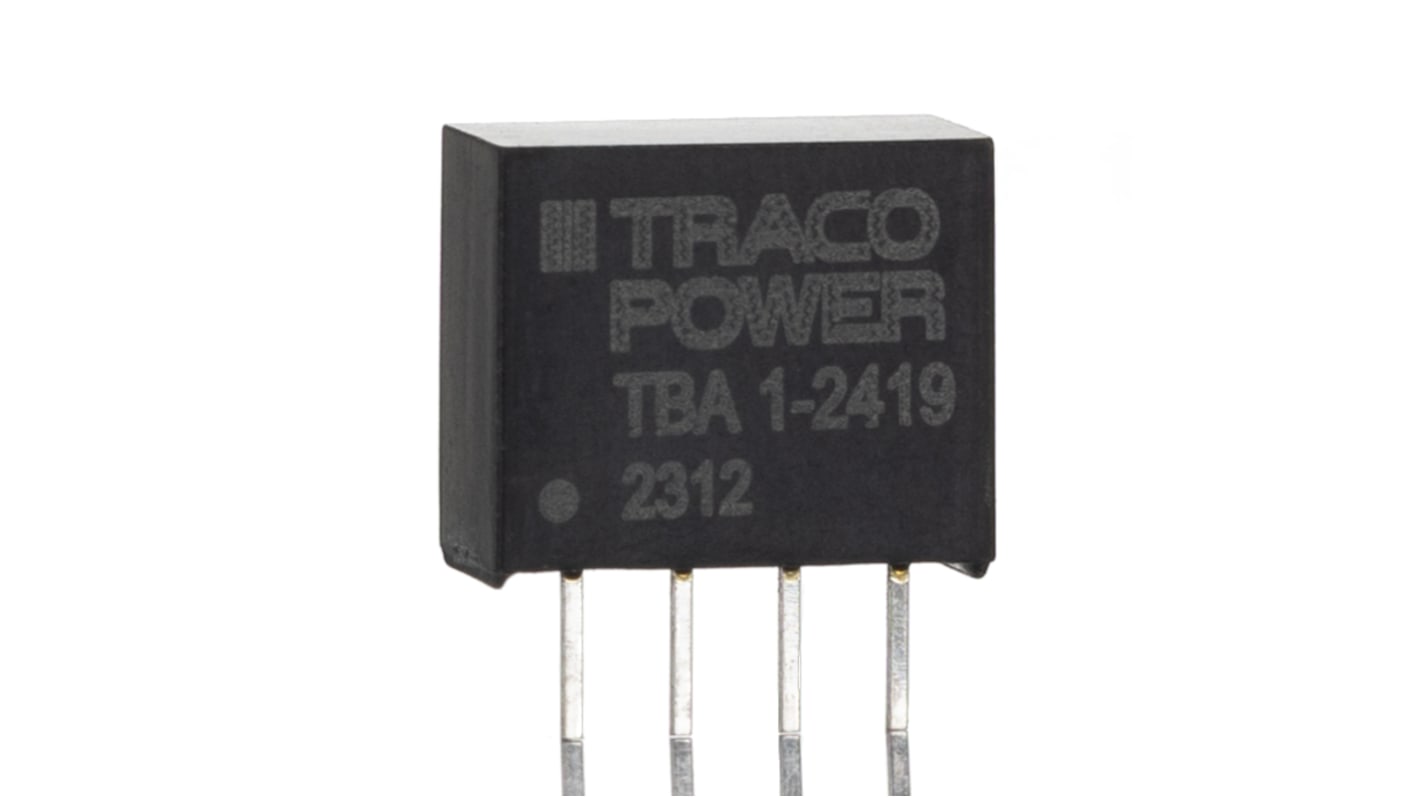

TRACOPOWER TBA 1 DC-DC Converter, 9V dc/ 110mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +95°C Max Temp
- RS Stock No.:
- 187-4245
- Mfr. Part No.:
- TBA 1-2419
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR19.00
10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 2 | MYR19.00 |
3 - 4 | MYR18.59 |
5 + | MYR18.02 |
**price indicative
- RS Stock No.:
- 187-4245
- Mfr. Part No.:
- TBA 1-2419
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 9V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 1W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 110mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP | |
Isolation Voltage | 1.5kV dc | |
Length | 11.68mm | |
Depth | 9.7mm | |
Width | 6mm | |
Series | TBA 1 | |
Load Regulation | 1.5% | |
Standards Met | IEC/EN 62368-1 | |
Maximum Temperature | +95°C | |
Efficiency | 80% | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 110mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Length 11.68mm | ||
Depth 9.7mm | ||
Width 6mm | ||
Series TBA 1 | ||
Load Regulation 1.5% | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature +95°C | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
