CD10.482 | PULS CD DC-DC Converter, 48V dc/ 5A Output, 36 → 60 V dc Input, 240W, DIN Rail Mount, +70°C Max Temp -25°C Min | RS
Recently searched

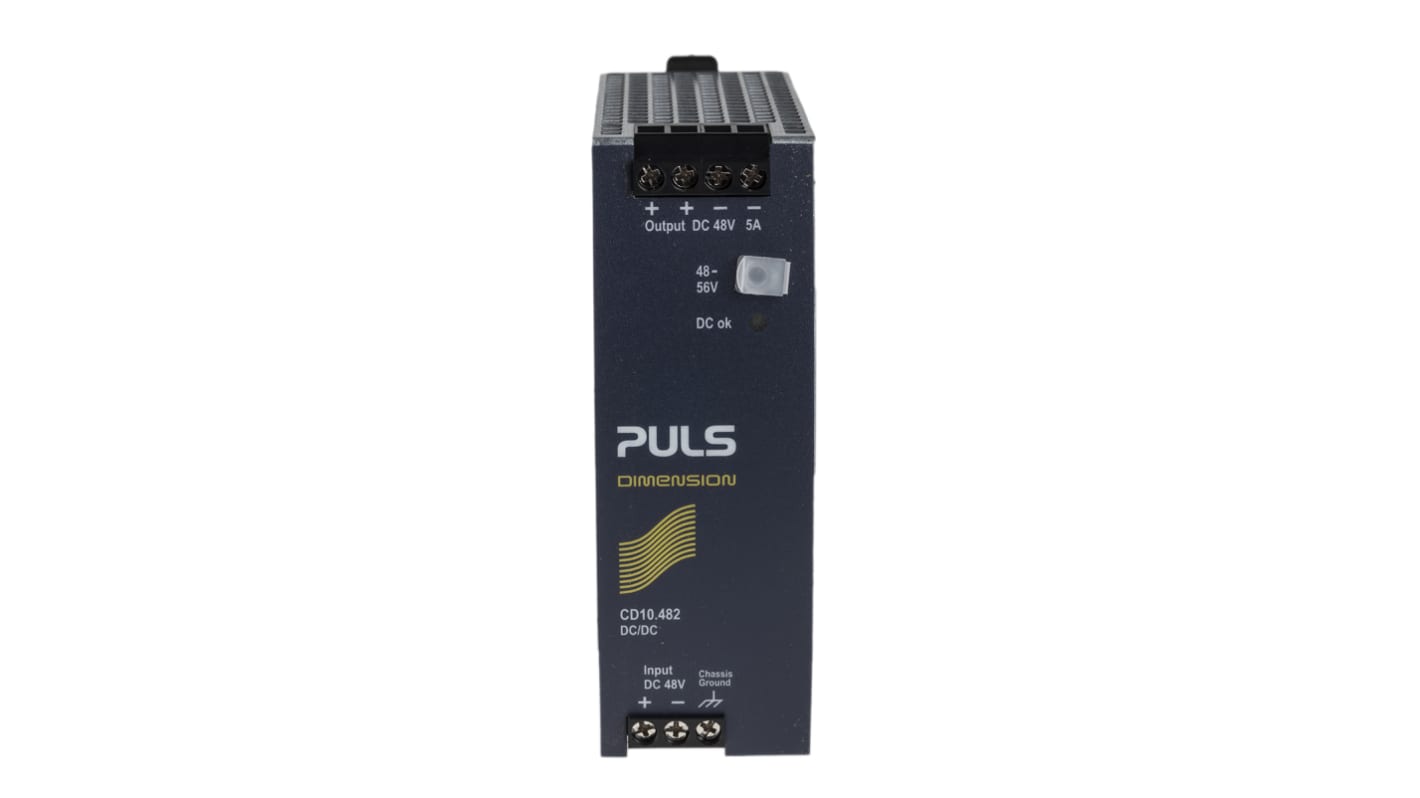

    PULS CD DC-DC Converter, 48V dc/ 5A Output, 36 → 60 V dc Input, 240W, DIN Rail Mount, +70°C Max Temp -25°C Min

    View all DC-DC Converters

    Subtotal (1 unit)**

    MYR2,121.25

    Add to Basket
    Select or type quantity
    32 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR2,121.25

    **price indicative

    RS Stock No.:
    181-2499
    Distrelec Article No.:
    301-27-515
    Mfr. Part No.:
    CD10.482
    Manufacturer:
    PULS
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    PULS

    Output Voltage

    48V dc

    Input Voltage Range

    36 → 60 V dc

    Power Rating

    240W

    Input Voltage Nominal

    48 V dc

    Output Current

    5A

    Mounting Type

    DIN Rail Mount

    Isolated

    Yes

    Number of Outputs

    1

    Isolation Voltage

    1.5kV dc

    Width

    117mm

    Depth

    124mm

    Length

    42mm

    Series

    CD

    Load Regulation

    200mV

    Standards Met

    ANSI/UL 61010-2-201, ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, cULus Listed, GL Listed, IECEE IEC 61010-2-201, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508

    Minimum Temperature

    -25°C

    Maximum Temperature

    +70°C

    Efficiency

    95.1%
