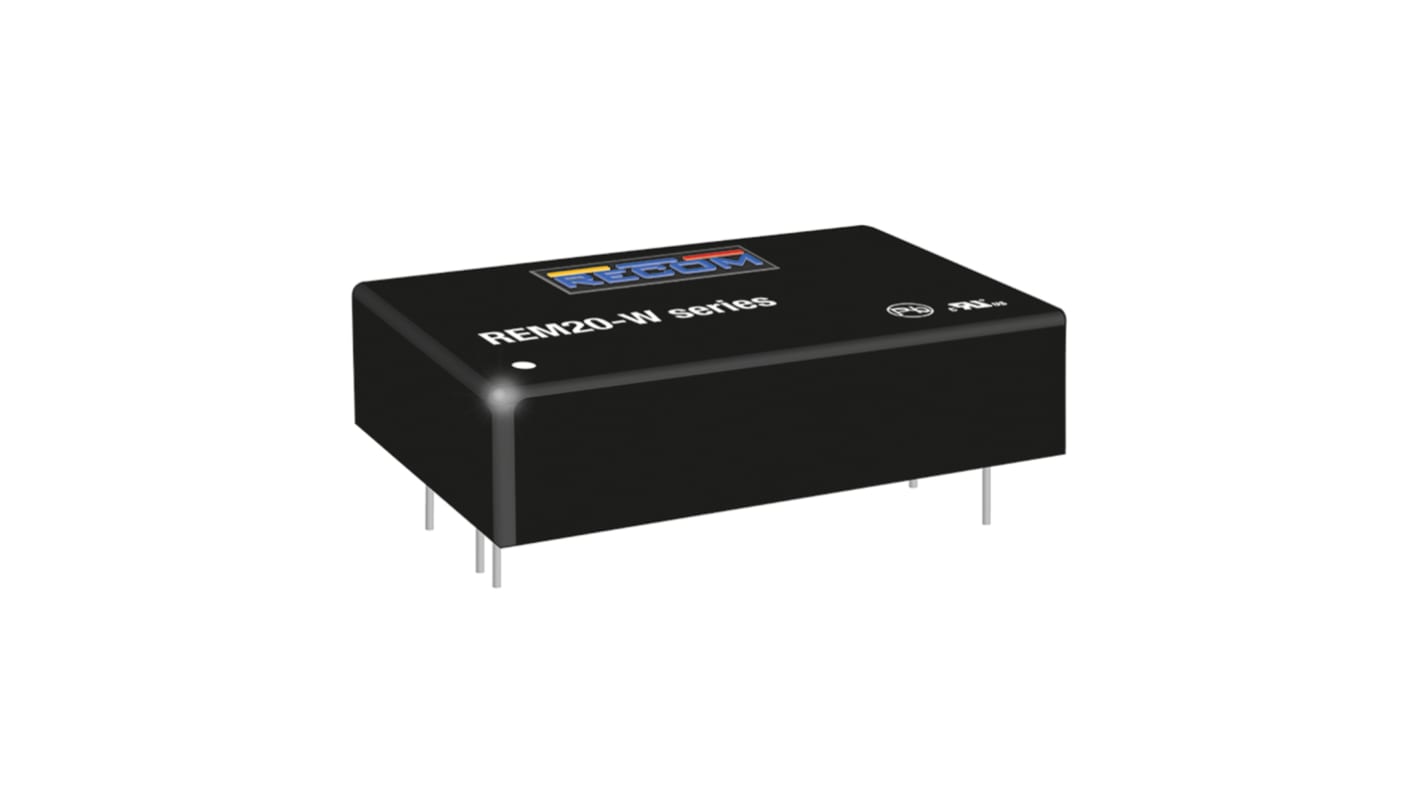

Recom REM20-W DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, Through Hole, +105°C Max Temp -40°C Min
- RS Stock No.:
- 180-9222
- Mfr. Part No.:
- REM20-2405SW
- Manufacturer:
- Recom
Bulk discount available
Subtotal (1 tube of 10 units)**
MYR4,592.18
Temporarily out of stock - back order for despatch 26/08/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Tube(s) | Per Tube | Per Unit** |
---|---|---|
1 - 4 | MYR4,592.18 | MYR459.218 |
5 - 9 | MYR4,439.84 | MYR443.984 |
10 + | MYR4,382.93 | MYR438.293 |
**price indicative
- RS Stock No.:
- 180-9222
- Mfr. Part No.:
- REM20-2405SW
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 5V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 20W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 4A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | 1.6 x 1 in | |
Isolation Voltage | 5 kV ac, 250V dc | |
Length | 40.6mm | |
Depth | 10.2mm | |
Width | 25.4mm | |
Series | REM20-W | |
Load Regulation | 0.002 | |
Maximum Temperature | +105°C | |
Efficiency | 87% | |
Medical Approved | Yes | |
Minimum Temperature | -40°C | |
Standards Met | ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), 2012, CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1, UL62368-1 | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1.6 x 1 in | ||
Isolation Voltage 5 kV ac, 250V dc | ||
Length 40.6mm | ||
Depth 10.2mm | ||
Width 25.4mm | ||
Series REM20-W | ||
Load Regulation 0.002 | ||
Maximum Temperature +105°C | ||
Efficiency 87% | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Standards Met ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), 2012, CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1, UL62368-1 | ||
