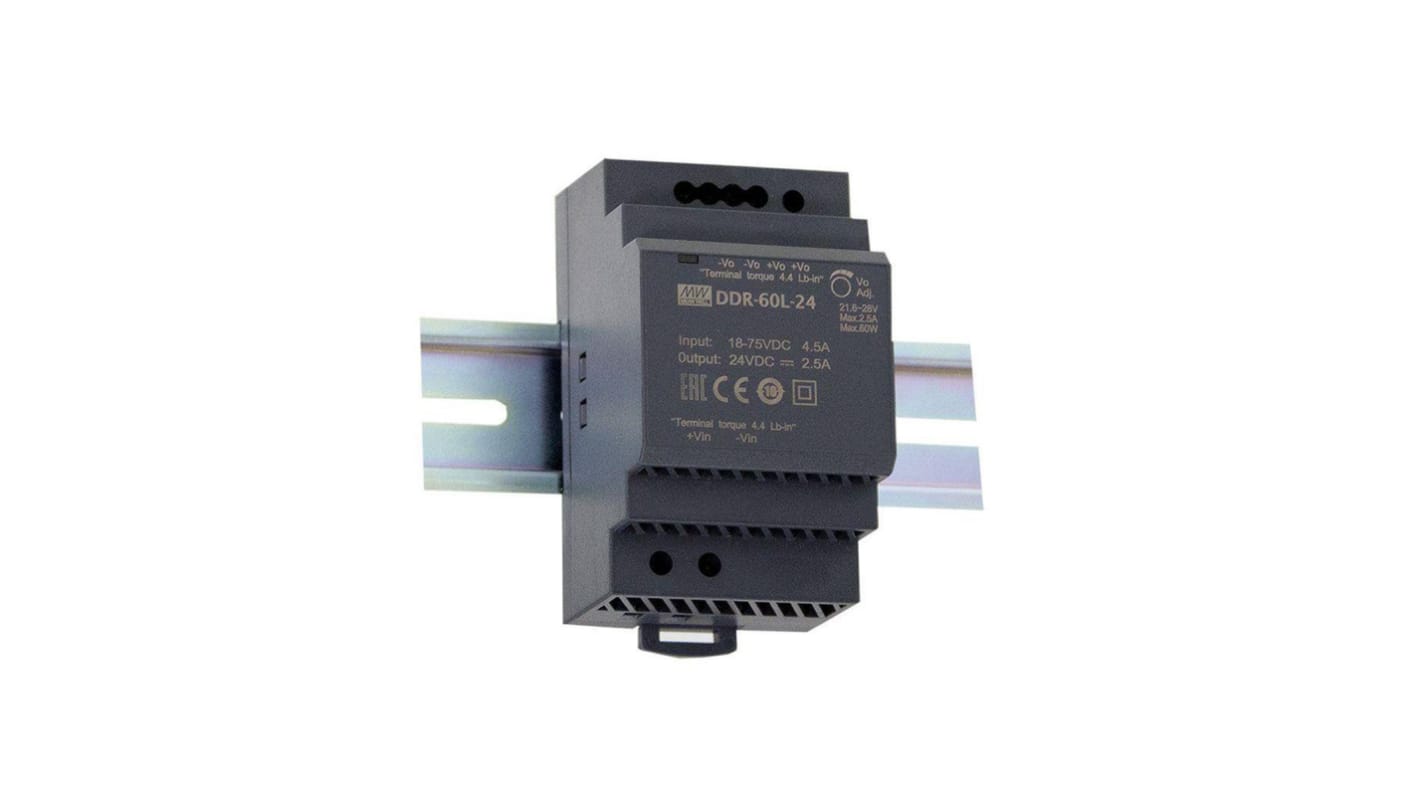

MEAN WELL DDR-60 DC/DC Converter, 24V/, 36V dc Input 12 A, 9V dc Input, DIN Rail, 85 °C Max Temp -40 °C Min Temp, 6-Pin
- RS Stock No.:
- 175-7793
- Distrelec Article No.:
- 301-34-137
- Mfr. Part No.:
- DDR-60G-5
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
MYR157.53
FREE delivery for orders over RM 500.00
In Stock
- 13 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 29 June 2026
- Plus 60 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR157.53 |
| 10 - 49 | MYR154.20 |
| 50 + | MYR149.58 |
*price indicative
- RS Stock No.:
- 175-7793
- Distrelec Article No.:
- 301-34-137
- Mfr. Part No.:
- DDR-60G-5
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage 1 | 24V | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V dc | |
| Mount Type | DIN Rail | |
| Number of Outputs | 2 | |
| MTBF | 611000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 21.6 to 28 V | |
| Output Current 2 | 2.5A | |
| Number of Pins | 6 | |
| Output Current 1 | 12A | |
| Maximum Output Power | 60W | |
| Series | DDR-60 | |
| Standards/Approvals | EN61000-4-5, EN61000-4-4, EN61000-4-6, EN55032, EN61000-3-3, EN61000-4-3, EN55024, IEC 62368-1, EN61000-4-2, EN61000-6-2, EN61000-4-8, UL508 | |
| Weight | 216g | |
| Width | 52.5mm | |
| Depth | 54.5mm | |
| Efficiency | 92% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 1 24V | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V dc | ||
Mount Type DIN Rail | ||
Number of Outputs 2 | ||
MTBF 611000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 21.6 to 28 V | ||
Output Current 2 2.5A | ||
Number of Pins 6 | ||
Output Current 1 12A | ||
Maximum Output Power 60W | ||
Series DDR-60 | ||
Standards/Approvals EN61000-4-5, EN61000-4-4, EN61000-4-6, EN55032, EN61000-3-3, EN61000-4-3, EN55024, IEC 62368-1, EN61000-4-2, EN61000-6-2, EN61000-4-8, UL508 | ||
Weight 216g | ||
Width 52.5mm | ||
Depth 54.5mm | ||
Efficiency 92% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Width only 52.5mm (3SU)
4:1 ultra wide input range
-40∼+85°C wide working temperature
No minimum load required
DC output adjustable ( 10% ±）
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
3 years warranty
Industrial control system
Semi-conductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system
DC-DC Ultra slim Industrial DIN rail converter, Input 9-36Vdc, Single Output 5Vdc at 10.8A
Note
Available on EPLAN.
