Cosel MGS DC/DC Converter, 5V dc/ 1.2 A, 12V dc Input, 9V Input 6 W, PCB, 85 °C Max Temp -40 °C Min Temp, 7-Pin SIP-8
- RS Stock No.:
- 171-5083
- Mfr. Part No.:
- MGS61205
- Manufacturer:
- Cosel

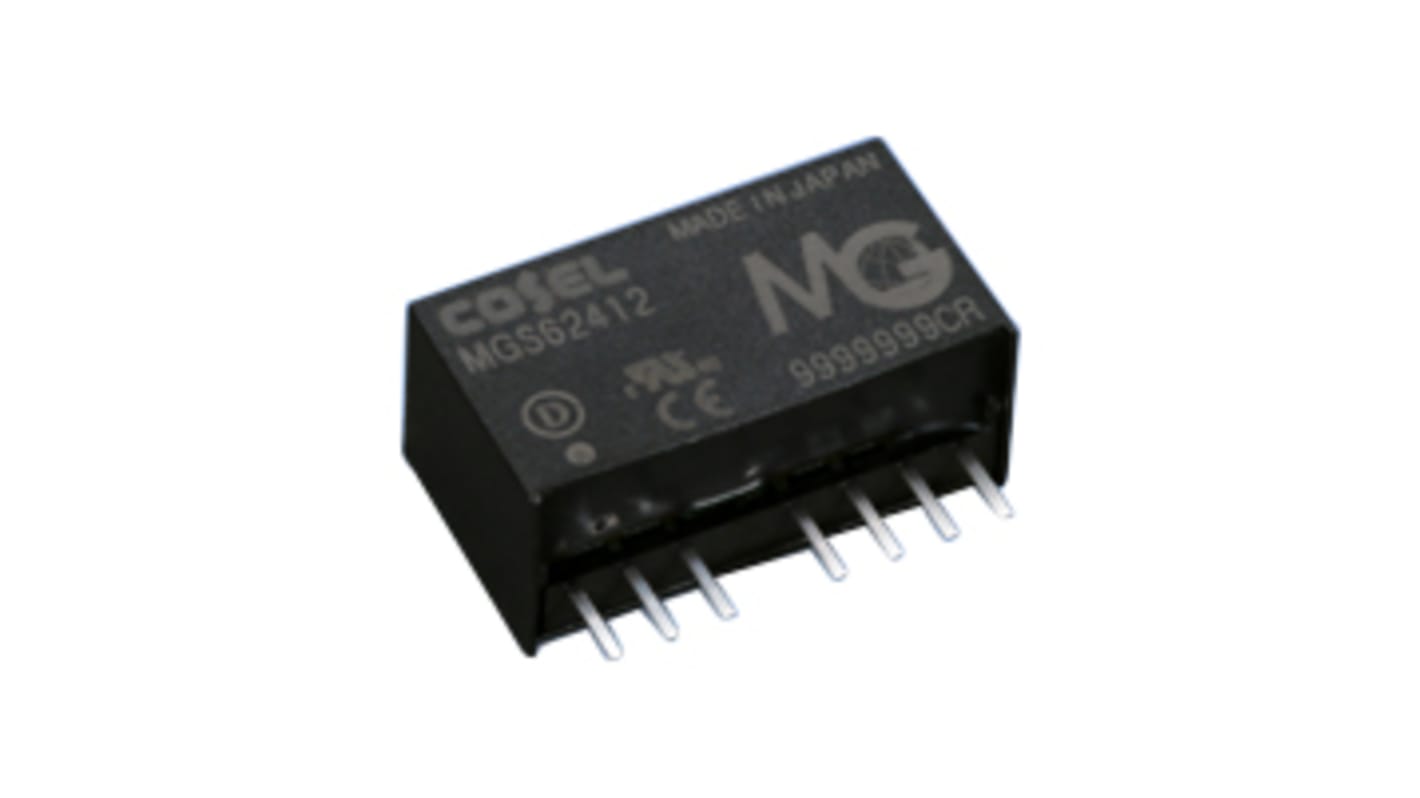

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR93.71
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 2 | MYR93.71 |
| 3 - 4 | MYR90.89 |
| 5 + | MYR88.07 |
*price indicative
- RS Stock No.:
- 171-5083
- Mfr. Part No.:
- MGS61205
- Manufacturer:
- Cosel
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 1.2A | |
| Output Current 2 | 1.2A | |
| Output Voltage 2 | 5V dc | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 4.90 → 5.21 V | |
| Ripple and Noise | 400mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 7 | |
| Maximum Output Power | 6W | |
| Package Type | SIP-8 | |
| Depth | 12mm | |
| Series | MGS | |
| Width | 9.5mm | |
| Standards/Approvals | UL60950-1, EN62368-1, EN 62368-1, UKCA, RoHS, C-UL, cUL, UL62368-1, CE, CSA | |
| Length | 22mm | |
| Weight | 7g | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 85% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 1.2A | ||
Output Current 2 1.2A | ||
Output Voltage 2 5V dc | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 4.90 → 5.21 V | ||
Ripple and Noise 400mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Number of Pins 7 | ||
Maximum Output Power 6W | ||
Package Type SIP-8 | ||
Depth 12mm | ||
Series MGS | ||
Width 9.5mm | ||
Standards/Approvals UL60950-1, EN62368-1, EN 62368-1, UKCA, RoHS, C-UL, cUL, UL62368-1, CE, CSA | ||
Length 22mm | ||
Weight 7g | ||
Maximum Operating Temperature 85°C | ||
Efficiency 85% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- JP
The Cosel voltage converter is a robust solution designed to provide precise output voltages for various applications, ensuring reliable power conversion in Compact environments. Its efficient operation makes it Ideal for demanding electronic applications.
High output wattage of 6.0W ensures reliable power delivery
Efficiency up to 89% optimises energy usage and reduces thermal stress
Designed for input voltage ranges between DC18 to 36V and DC36 to 76V
