XP Power IV DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

RS Stock No.:: 167-3157
Mfr. Part No.:: IV0505SA
Manufacturer:: XP Power

XP Power IV DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

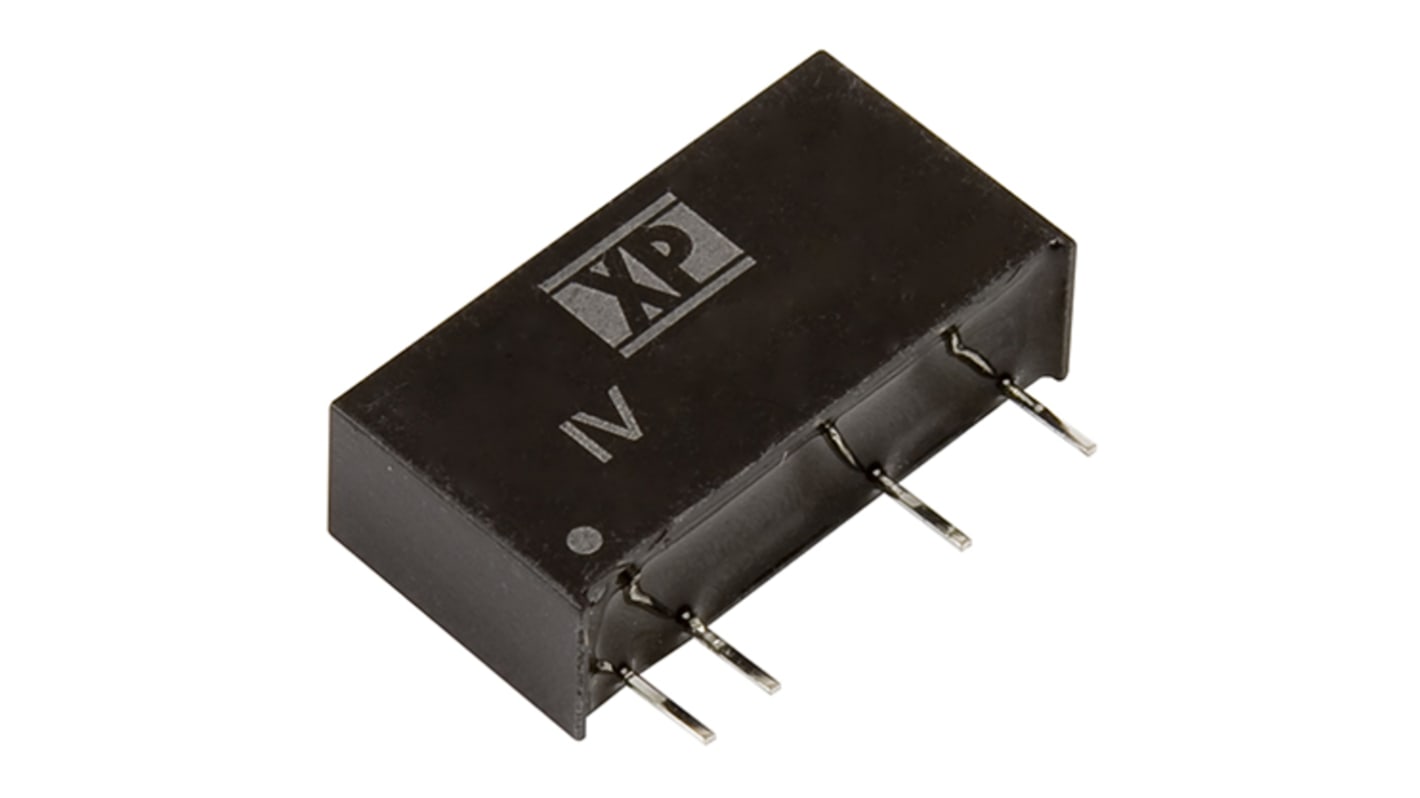

This image is representative of the product range

Bulk discount available

Price 1 Tube of 20

MYR695.48

Temporarily out of stock - back order for despatch 31/01/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR695.48	MYR34.774
2 - 3	MYR680.17	MYR34.008
4 +	MYR665.56	MYR33.278

**price indicative

RS Stock No.:: 167-3157
Mfr. Part No.:: IV0505SA
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	4.5 → 5.5 V dc
Power Rating	1W
Input Voltage Nominal	5 V dc
Output Current	200mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP
Isolation Voltage	3kV dc
Depth	10mm
Width	6mm
Length	19.5mm
Series	IV
Load Regulation	±10%
Maximum Temperature	+85°C
Minimum Temperature	-40°C
Efficiency	78%

XP Power IV DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

FREE delivery for orders over MYR700.00

XP Power - IV Series of Isolated DC-DC Converters
