XP Power IR DC-DC Converter, 5V dc/ 600mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 167-3099
- Mfr. Part No.:
- IR1205SA
- Manufacturer:
- XP Power

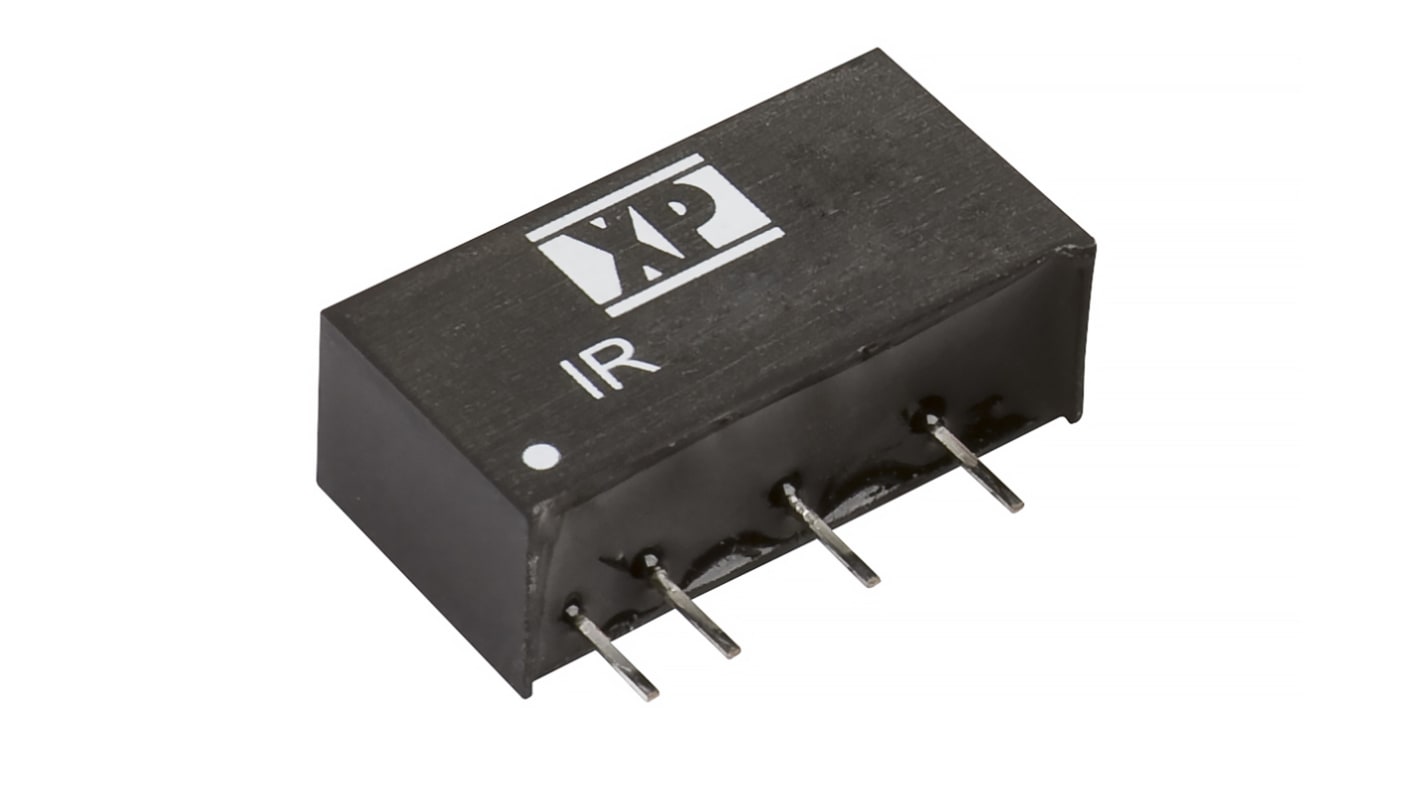

This image is representative of the product range
View all DC-DC Converters
Temporarily out of stock - back order for despatch 12/04/2024, delivery within 4 working days from despatch date
Price 1 Tube of 20
MYR876.90
| Tube(s) | Per Tube | Per Unit* |
| 1 - 1 | MYR876.90 | MYR43.845 |
| 2 - 3 | MYR857.61 | MYR42.88 |
| 4 + | MYR839.19 | MYR41.96 |
| *price indicative | ||
- RS Stock No.:
- 167-3099
- Mfr. Part No.:
- IR1205SA
- Manufacturer:
- XP Power
- COO (Country of Origin):
- TW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power – IR Series of Isolated DC-DC Converters
The IR series from XP Power offers a highly reliable range of single and dual output, 3 W, isolated DC-DC converters. The series features 1000 VDC in isolation (3000 VDC option available) and has been designed in an industry standard SIP package. These compact, semi-regulated DC-DC converters also attribute a high efficiency of up to 90% and a wide -40 °C to +85 °C operating temperature range.
3 W, Isolated DC-DC converters
1000 VDC in isolation, 3000 VDC option available
Single and dual output
Industry standard SIP package
Wide -40 °C to +85 °C operating temperature range
Up to 90% high efficiency
1000 VDC in isolation, 3000 VDC option available
Single and dual output
Industry standard SIP package
Wide -40 °C to +85 °C operating temperature range
Up to 90% high efficiency
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
XP Power Isolated DC-DC Converters
Specifications
| Attribute | Value |
| Output Voltage | 5V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP |
| Isolation Voltage | 1kV dc |
| Length | 19.5mm |
| Width | 7.2mm |
| Depth | 10mm |
| Series | IR |
| Load Regulation | Maximum of 6% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
