Tube(s)	Per Tube	Per Unit**
1 - 1	MYR1,778.12	MYR177.812
2 - 3	MYR1,739.01	MYR173.901
4 +	MYR1,701.69	MYR170.169

Select all	Attribute	Value
	Brand	XP Power
	Output Voltage	12V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	15W
	Input Voltage Nominal	24 V dc
	Output Current	1.3A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	1 x 1 in
	Isolation Voltage	1.6kV dc
	Width	25.4mm
	Depth	9.9mm
	Length	25.4mm
	Series	JTK
	Load Regulation	±0.5%
	Minimum Temperature	-40°C
	Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
	Maximum Temperature	+100°C

	Select all
	Brand XP Power
	Output Voltage 12V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 15W
	Input Voltage Nominal 24 V dc
	Output Current 1.3A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package 1 x 1 in
	Isolation Voltage 1.6kV dc
	Width 25.4mm
	Depth 9.9mm
	Length 25.4mm
	Series JTK
	Load Regulation ±0.5%
	Minimum Temperature -40°C
	Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
	Maximum Temperature +100°C

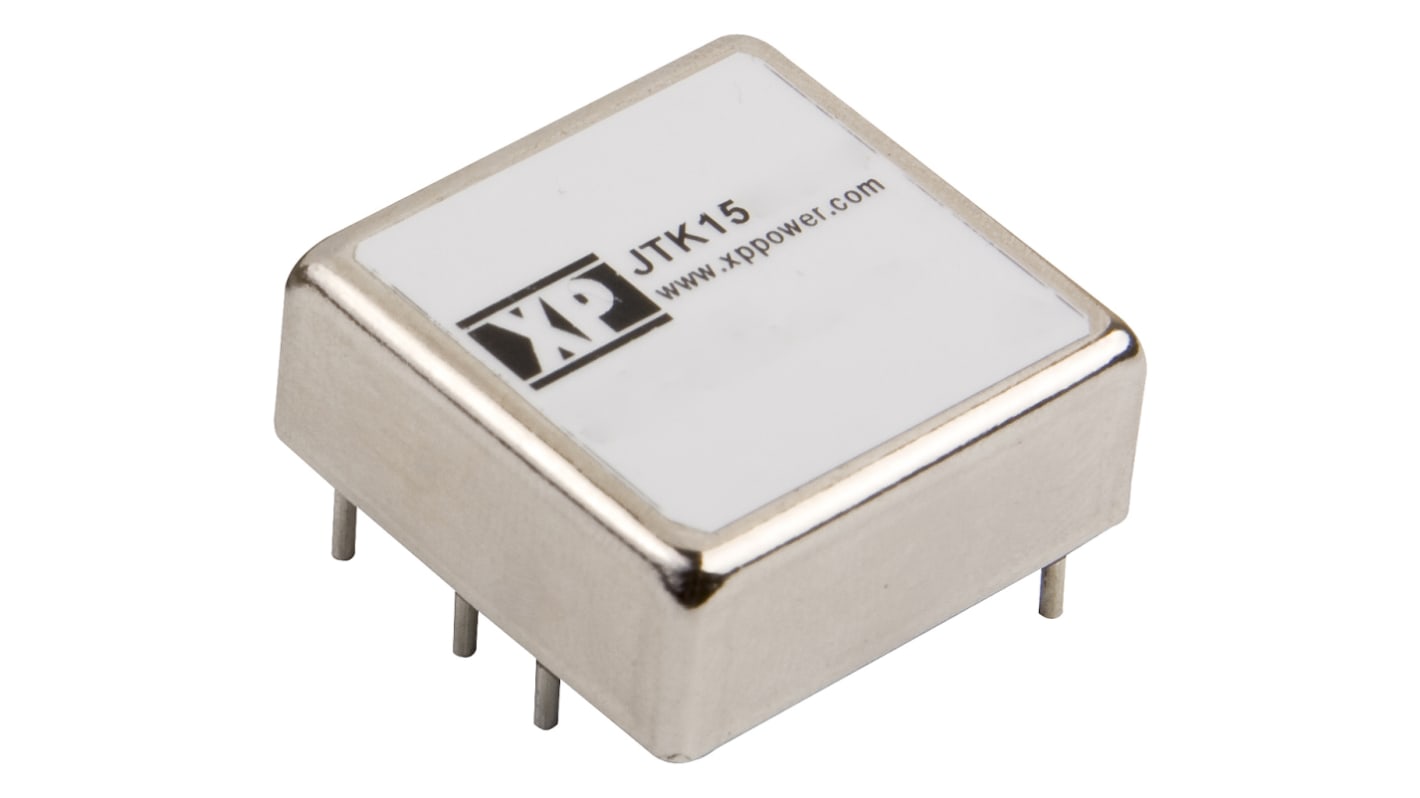

XP Power JTK DC-DC Converter, 12V dc/ 1.3A Output, 9 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C

FREE delivery for orders over MYR500.00

XP Power - JTK15 Series of Isolated DC-DC Converters
