XP Power JTL DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

RS Stock No.:: 167-2471
Mfr. Part No.:: JTL3024S05
Manufacturer:: XP Power

XP Power JTL DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

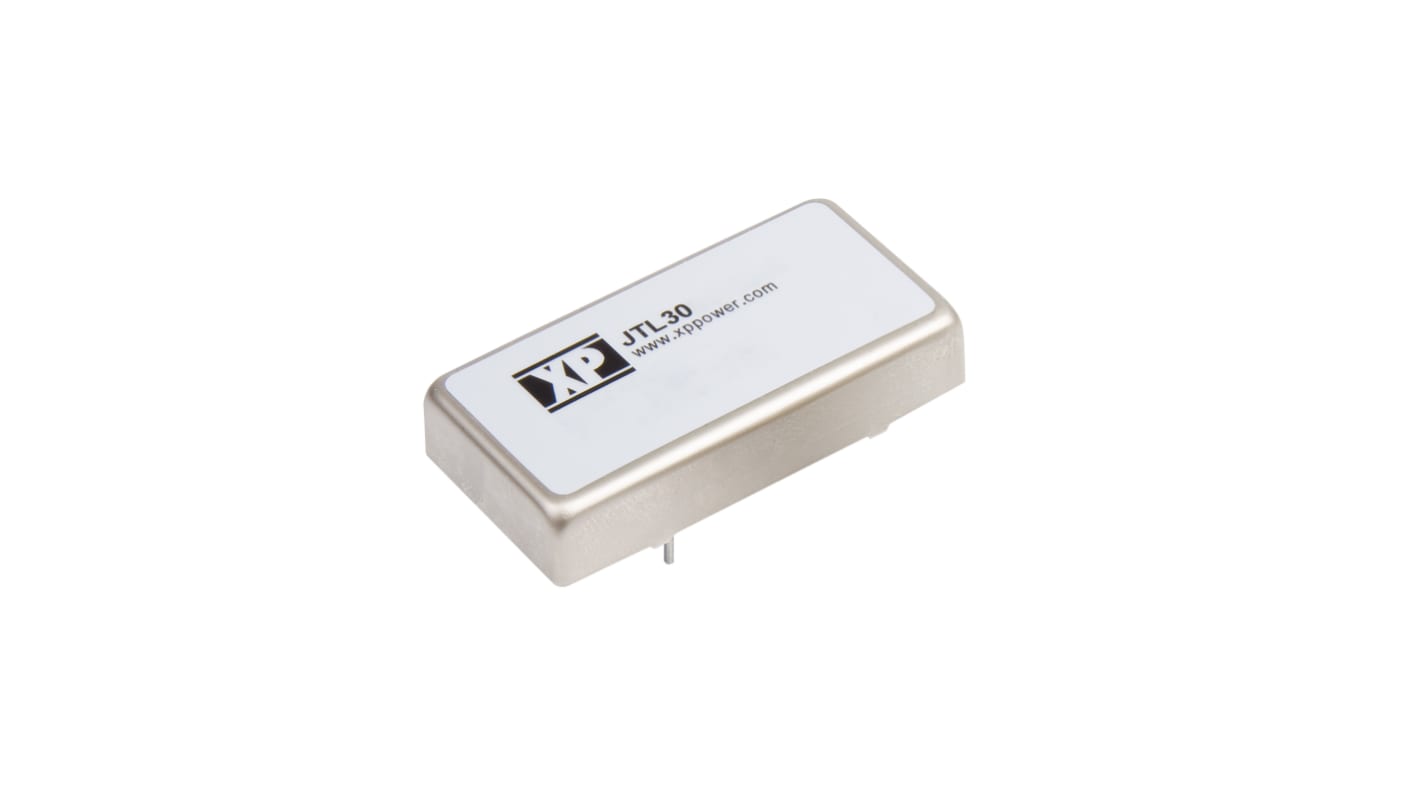

This image is representative of the product range

Bulk discount available

Price 1 Tube of 10**

MYR3,230.68

Temporarily out of stock - back order for despatch 27/04/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR3,230.68	MYR323.068
2 - 3	MYR3,159.61	MYR315.961
4 +	MYR3,091.77	MYR309.177

**price indicative

RS Stock No.:: 167-2471
Mfr. Part No.:: JTL3024S05
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	9 → 36 V dc
Power Rating	30W
Input Voltage Nominal	24 V dc
Output Current	6A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.6kV dc
Width	25.4mm
Depth	10.16mm
Length	50.8mm
Series	JTL
Load Regulation	±0.5%
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+75°C

XP Power JTL DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C Min

FREE delivery for orders over MYR700.00

XP Power - JTL30 Series of Isolated DC-DC Converters
