XP Power ITV DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2097
Mfr. Part No.:: ITV2415SA
Manufacturer:: XP Power

XP Power ITV DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

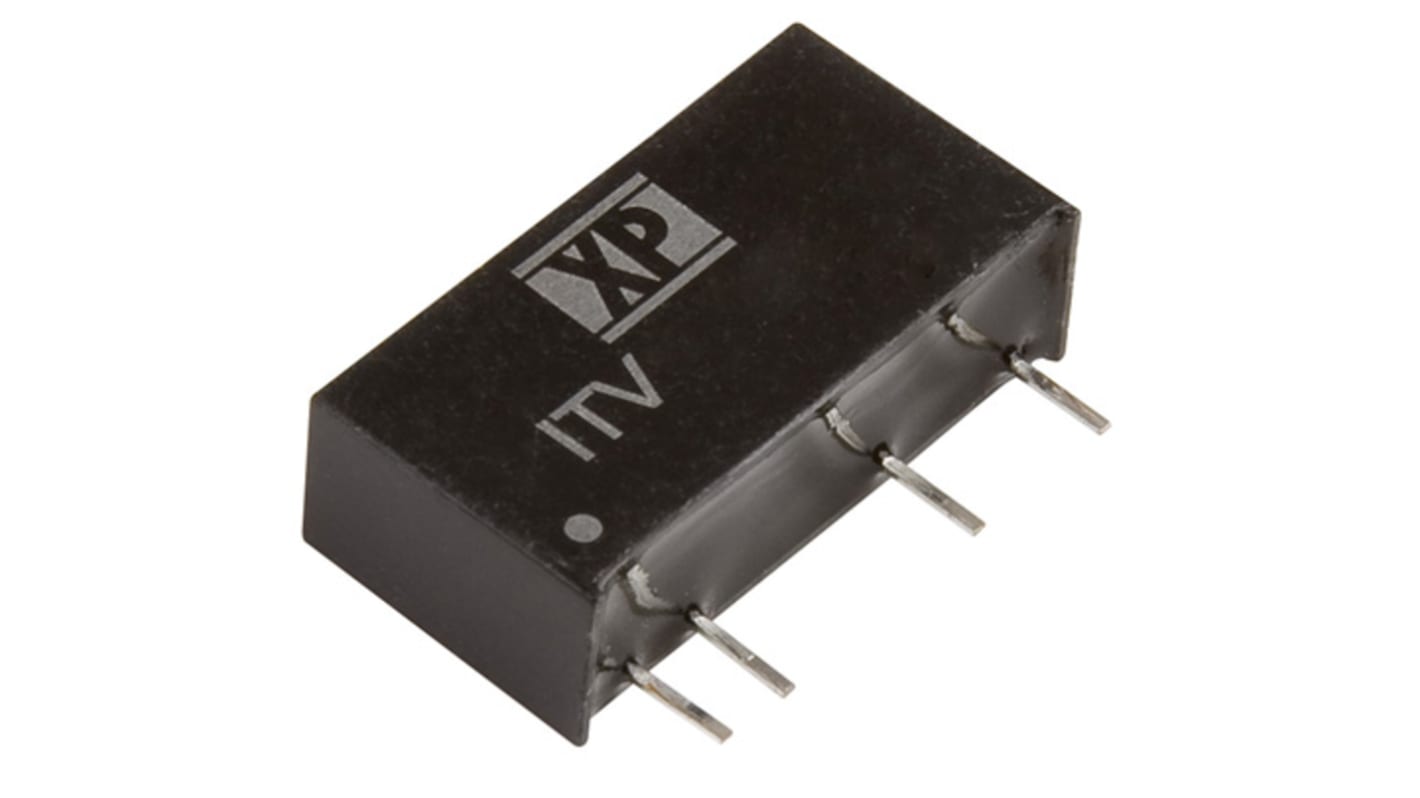

This image is representative of the product range

Temporarily out of stock - back order for despatch 16/10/2024, delivery within 4 working days from despatch date

Price 1 Tube of 20

MYR994.40

Tube(s)	Per Tube	Per Unit*
1 +	MYR994.40	MYR49.72

*price indicative

RS Stock No.:: 167-2097
Mfr. Part No.:: ITV2415SA
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	15V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	1W
Input Voltage Nominal	24 V dc
Output Current	66mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP
Isolation Voltage	3kV dc
Length	19.5mm
Depth	10mm
Width	6mm
Series	ITV
Load Regulation	-2.5 → +5%
Maximum Temperature	+105°C
Efficiency	80%
Minimum Temperature	-40°C
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F

XP Power ITV DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

XP Power - ITV Series Isolated DC-DC Converter
