XP Power ITV DC-DC Converter, ±15V dc/ ±33.3mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2134
Mfr. Part No.:: ITV1215S
Manufacturer:: XP Power

XP Power ITV DC-DC Converter, ±15V dc/ ±33.3mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

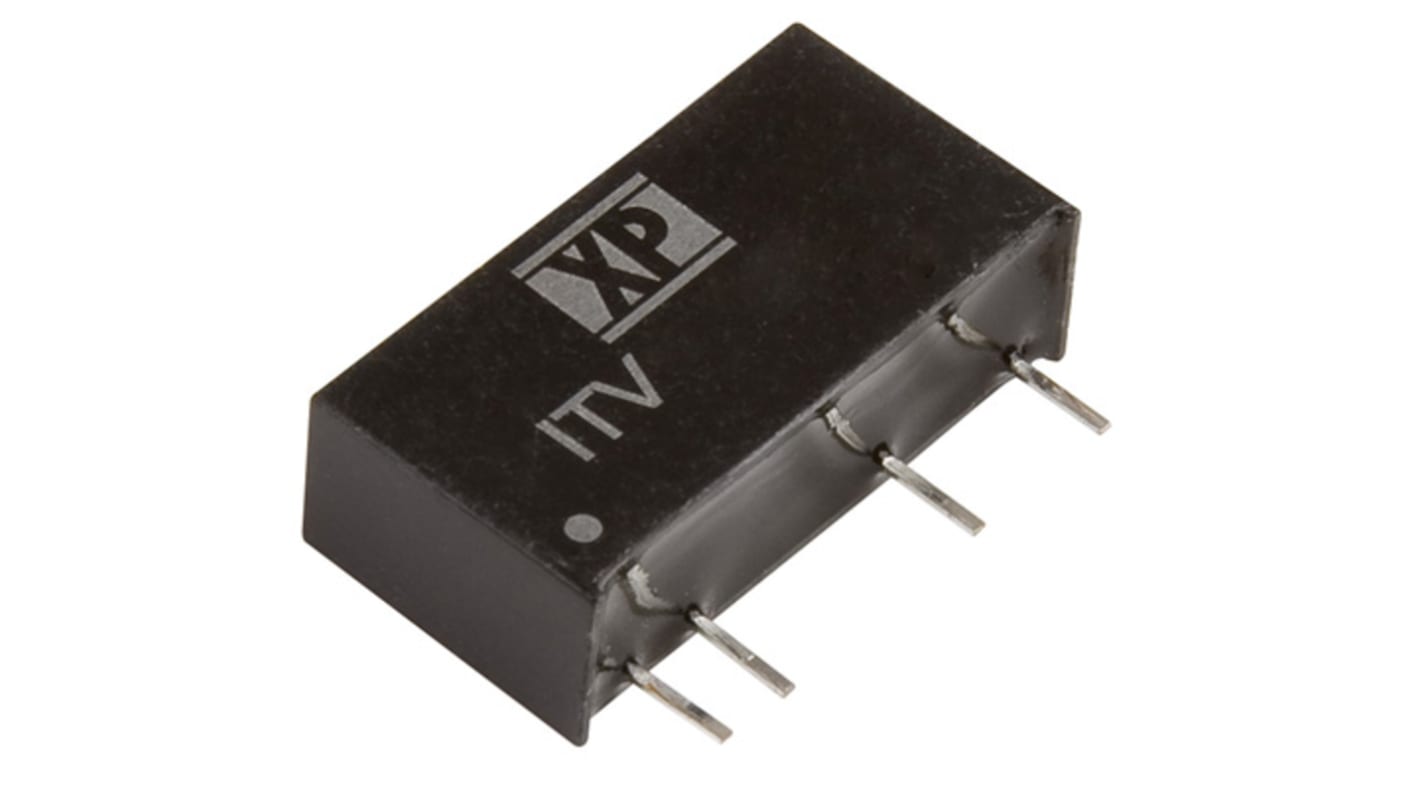

This image is representative of the product range

Bulk discount available

Subtotal (1 tube of 20 units)**

MYR734.84

Temporarily out of stock - back order for despatch 23/02/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR734.84	MYR36.742
2 - 3	MYR718.68	MYR35.934
4 +	MYR703.23	MYR35.162

**price indicative

RS Stock No.:: 167-2134
Mfr. Part No.:: ITV1215S
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	±33.3mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP
Isolation Voltage	3kV dc
Length	19.5mm
Width	6mm
Depth	10mm
Series	ITV
Load Regulation	-2.5 → +5%
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
Minimum Temperature	-40°C
Efficiency	81%
Maximum Temperature	+105°C

XP Power ITV DC-DC Converter, ±15V dc/ ±33.3mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

FREE delivery for orders over MYR700.00

XP Power - ITV Series Isolated DC-DC Converter
