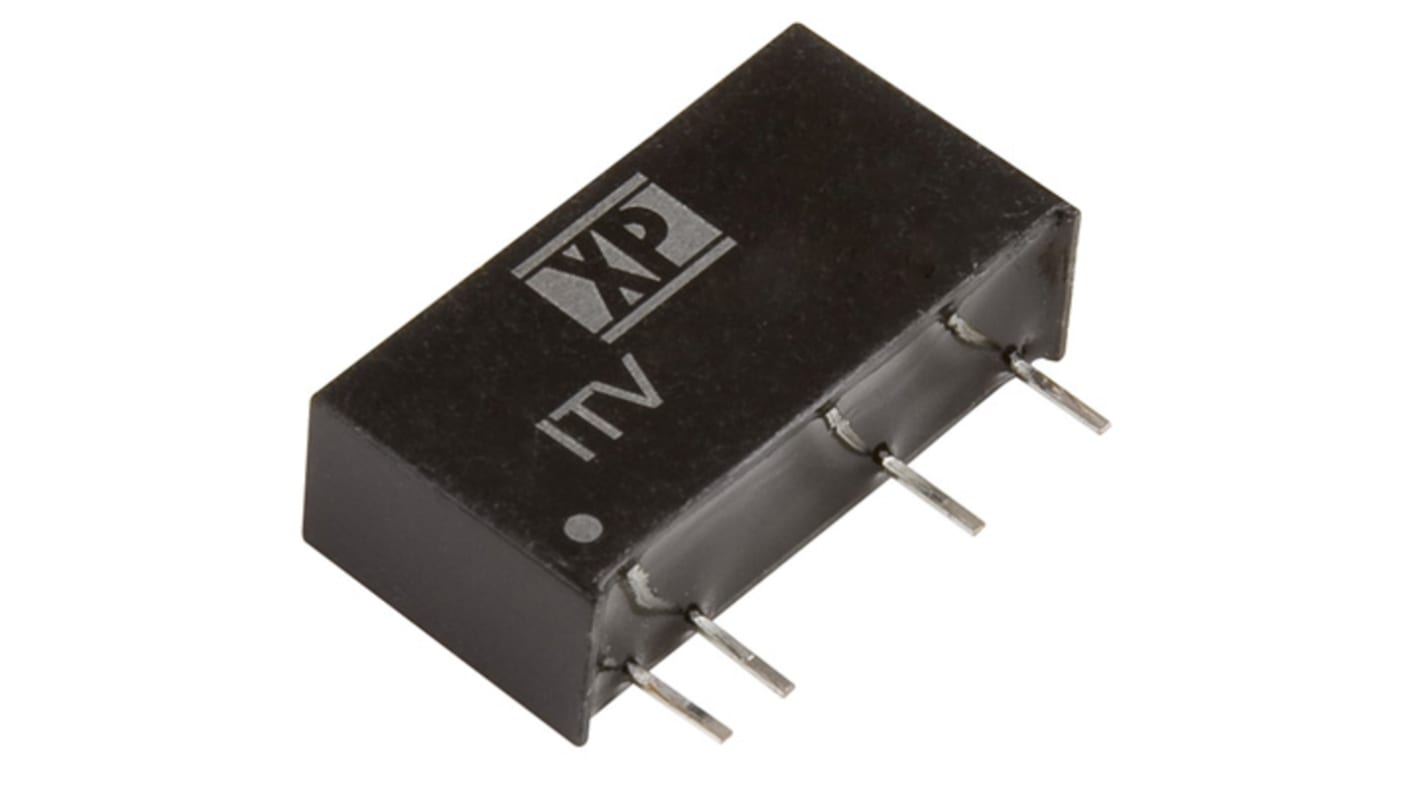

XP Power ITV DC-DC Converter, ±15V dc/ ±33.3mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 122-6070
- Distrelec Article No.:
- 302-41-614
- Mfr. Part No.:
- ITV2415S
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)**
MYR41.96
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 4 | MYR41.96 |
5 - 9 | MYR40.88 |
10 + | MYR39.84 |
**price indicative
- RS Stock No.:
- 122-6070
- Distrelec Article No.:
- 302-41-614
- Mfr. Part No.:
- ITV2415S
- Manufacturer:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | ±15V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 1W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±33.3mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | SIP | |
Isolation Voltage | 3kV dc | |
Depth | 10mm | |
Width | 6mm | |
Length | 19.5mm | |
Series | ITV | |
Load Regulation | -2.5 → +5% | |
Maximum Temperature | +105°C | |
Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F | |
Efficiency | 80% | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage ±15V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±33.3mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 3kV dc | ||
Depth 10mm | ||
Width 6mm | ||
Length 19.5mm | ||
Series ITV | ||
Load Regulation -2.5 → +5% | ||
Maximum Temperature +105°C | ||
Standards Met EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
