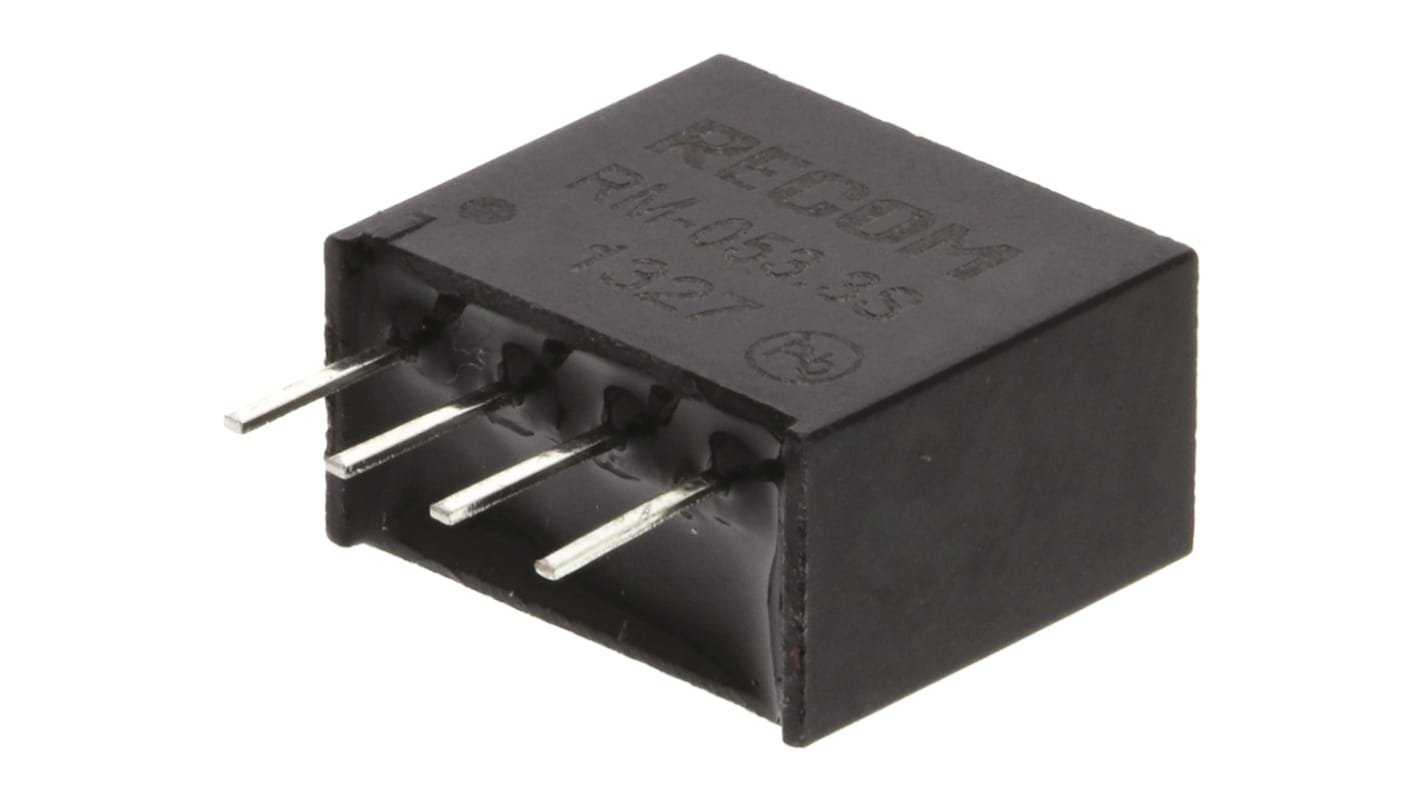

Name: Recom RM DC-DC Converter, 3.3V dc/ 76mA Output, 4.5 → 5.5 V dc Input, 0.25W, Through Hole, +85°C Max Temp -40°C
Brand: Recom
SKU: 166-9007
Price: 1314.70 MYR
Availability: BackOrder

Essential and Operational Technologies

These cookies make our website work. This includes product images and videos, functionality for the basket, logging in, remembering your username, registration and My Account.

We use optimisation cookies to test new features and designs on our website. The information collected helps us improve our website and our customers' experience.

Advertising

These cookies are used to understand the performance and relevancy of our adverts, to provide you with personalised adverts on other websites and social media, to track when you have arrived at our site from a recognised third-party affiliate website, and to track if you made a purchase based on the adverts we displayed to you.

Recommendations

These cookies enable us to provide personalised product and content recommendations, to make the browsing experience more relevant to you.

Functionality

These cookies are used to offer customer surveys and feedback, to improve search results, and to allow you to share content from our website on social media.

Analytics

These cookies help us improve our website by collecting and reporting information on how you use it.

Tube(s)	Per Tube	Per Unit**
1 - 1	MYR1,314.70	MYR31.302
2 - 3	MYR1,285.77	MYR30.614
4 +	MYR1,258.16	MYR29.956

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	3.3V dc
	Input Voltage Range	4.5 → 5.5 V dc
	Power Rating	0.25W
	Input Voltage Nominal	5 V dc
	Output Current	76mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	SIP
	Isolation Voltage	500V ac
	Depth	10mm
	Length	11.5mm
	Series	RM
	Maximum Temperature	+85°C
	Minimum Temperature	-40°C

	Select all
	Brand Recom
	Output Voltage 3.3V dc
	Input Voltage Range 4.5 → 5.5 V dc
	Power Rating 0.25W
	Input Voltage Nominal 5 V dc
	Output Current 76mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package SIP
	Isolation Voltage 500V ac
	Depth 10mm
	Length 11.5mm
	Series RM
	Maximum Temperature +85°C
	Minimum Temperature -40°C

Recom RM DC-DC Converter, 3.3V dc/ 76mA Output, 4.5 → 5.5 V dc Input, 0.25W, Through Hole, +85°C Max Temp -40°C

FREE delivery for orders over MYR500.00

Recom 0.25W SIP Single Output Unregulated Isolated DC-DC Converter - RM Series
