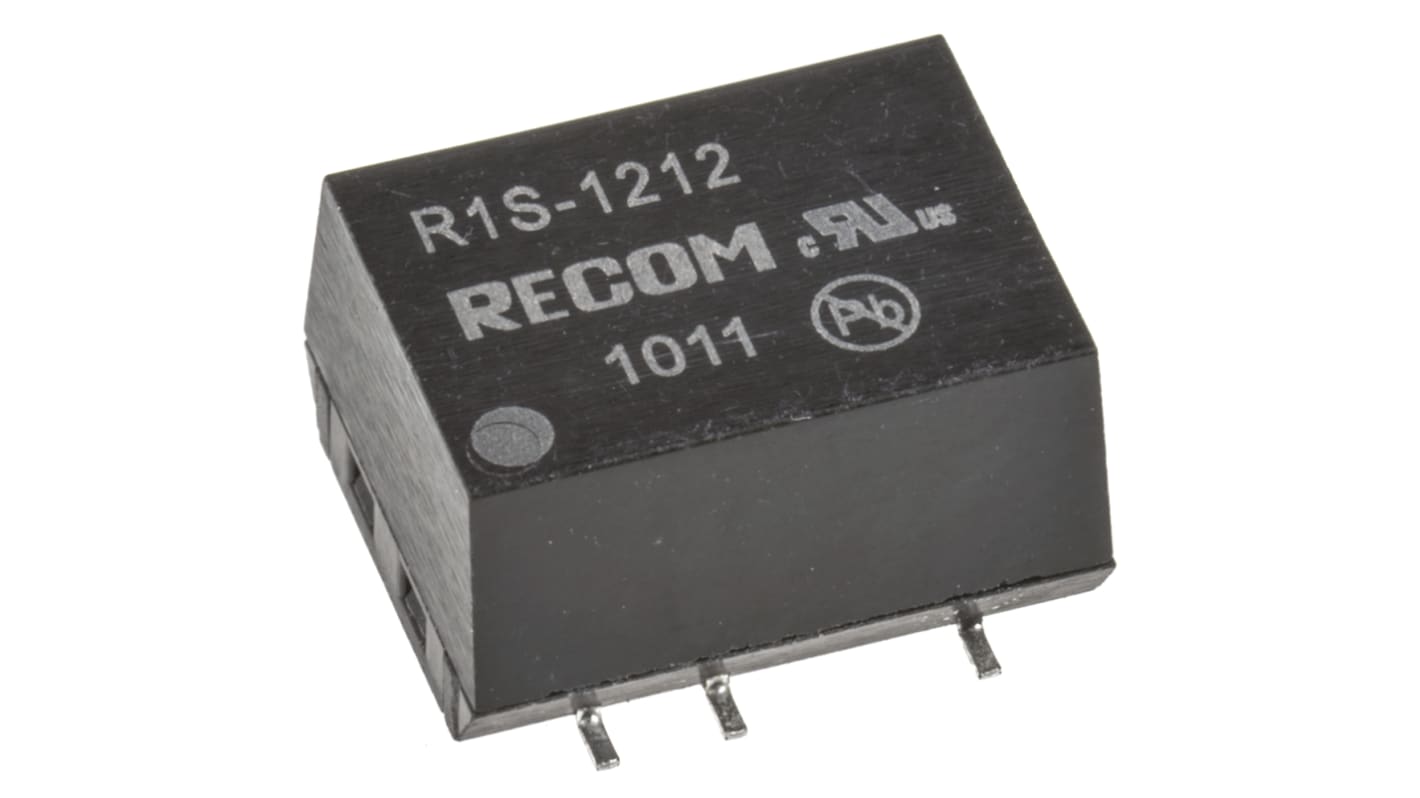

Recom R1S DC-DC Converter, 12V dc/ 84mA Output, 10.8 → 13.2 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

RS Stock No.:: 166-6658
Mfr. Part No.:: R1S-1212
Manufacturer:: Recom

Recom R1S DC-DC Converter, 12V dc/ 84mA Output, 10.8 → 13.2 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

This image is representative of the product range

Price 1 Tube of 40**

MYR1,559.20

Temporarily out of stock - back order for despatch 28/04/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 +	MYR1,559.20	MYR38.98

**price indicative

RS Stock No.:: 166-6658
Mfr. Part No.:: R1S-1212
Manufacturer:: Recom

Datasheet

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	84mA
Mounting Type	Surface Mount
Isolated	Yes
Number of Outputs	1
Package	DIP 8
Isolation Voltage	1kV dc
Length	12.75mm
Depth	6.7mm
Series	R1S
Load Regulation	±6%
Minimum Temperature	-40°C
Maximum Temperature	+100°C

Recom R1S DC-DC Converter, 12V dc/ 84mA Output, 10.8 → 13.2 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C

FREE delivery for orders over MYR700.00

Recom 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R1S & R1D Series
