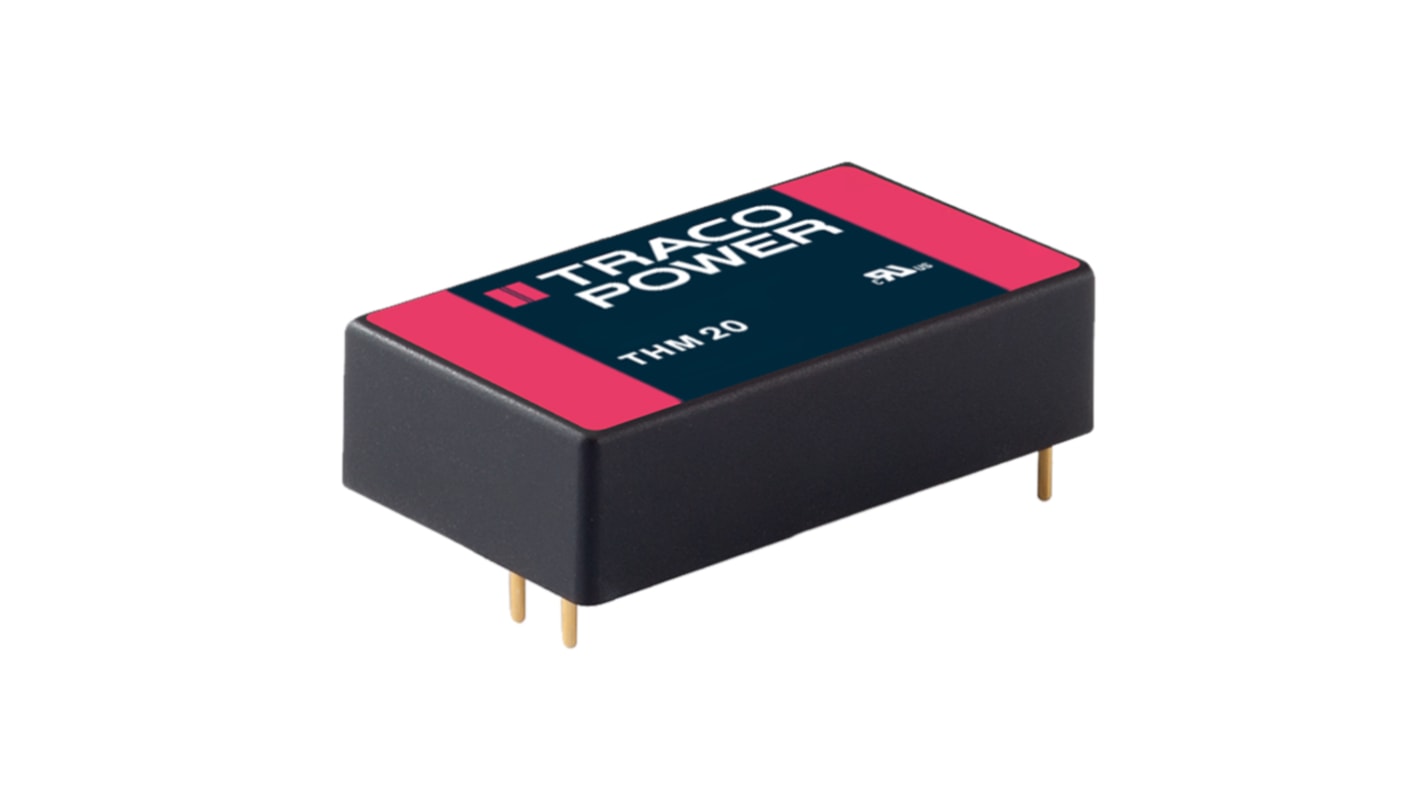

    TRACOPOWER THM 20 DC-DC Converter, 12V dc/ 1.67A Output, 36 → 75 V dc Input, 20W, Through Hole, +80°C Max Temp

    View all DC-DC Converters
    Bulk discount available

    Subtotal (1 tube of 10 units)**

    MYR3,108.46

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 22/10/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Tube(s)
    Per Tube
    Per Unit**
    1 - 4MYR3,108.46MYR310.846
    5 - 9MYR2,984.12MYR298.412
    10 +MYR2,859.78MYR285.978

    **price indicative

    RS Stock No.:
    165-1185
    Mfr. Part No.:
    THM 20-4812
    Manufacturer:
    TRACOPOWER
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    TRACOPOWER

    Output Voltage

    12V dc

    Input Voltage Range

    36 → 75 V dc

    Power Rating

    20W

    Input Voltage Nominal

    48 V dc

    Output Current

    1.67A

    Mounting Type

    Through Hole

    Isolated

    Yes

    Number of Outputs

    1

    Output Voltage Adjustment Range

    ±10%

    Package

    1.6 x 1 in

    Isolation Voltage

    5kV ac

    Depth

    10.2mm

    Width

    25.4mm

    Length

    40.6mm

    Series

    THM 20

    Load Regulation

    0.002

    Standards Met

    ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F

    Minimum Temperature

    -40°C

    Medical Approved

    Yes

    Efficiency

    88%

    Maximum Temperature

    +80°C
