XP Power ITA DC-DC Converter, ±12V dc/ ±41.6mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

RS Stock No.:: 161-9182
Mfr. Part No.:: ITA2412S
Manufacturer:: XP Power

XP Power ITA DC-DC Converter, ±12V dc/ ±41.6mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

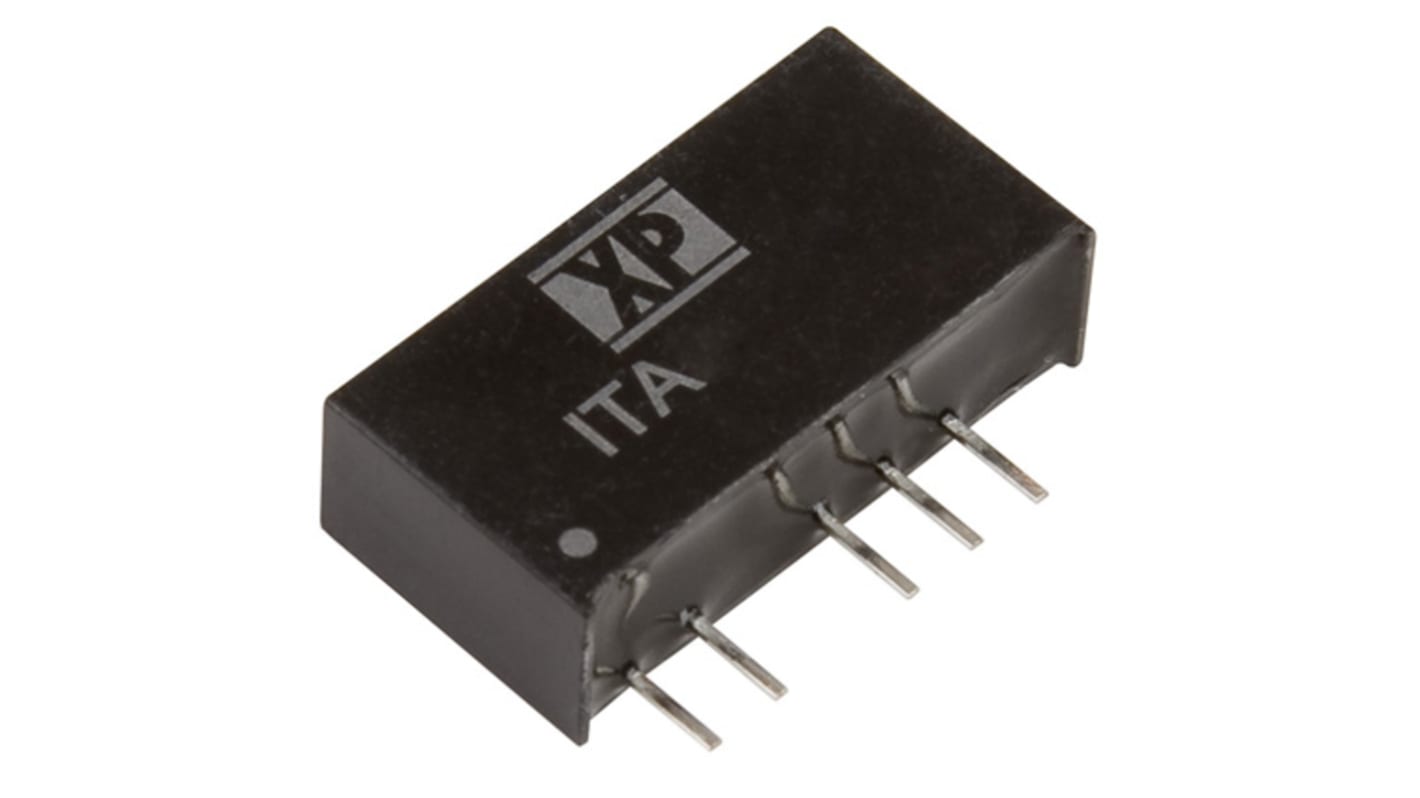

This image is representative of the product range

Price 1 Tube of 20

MYR683.24

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 +	MYR683.24	MYR34.162

**price indicative

RS Stock No.:: 161-9182
Mfr. Part No.:: ITA2412S
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	1W
Input Voltage Nominal	24 V dc
Output Current	±41.6mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP
Isolation Voltage	1.5kV dc
Width	6mm
Depth	10mm
Length	19.5mm
Series	ITA
Load Regulation	-2.5 → +5%
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
Maximum Temperature	+105°C
Efficiency	80%
Minimum Temperature	-40°C

XP Power ITA DC-DC Converter, ±12V dc/ ±41.6mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp
