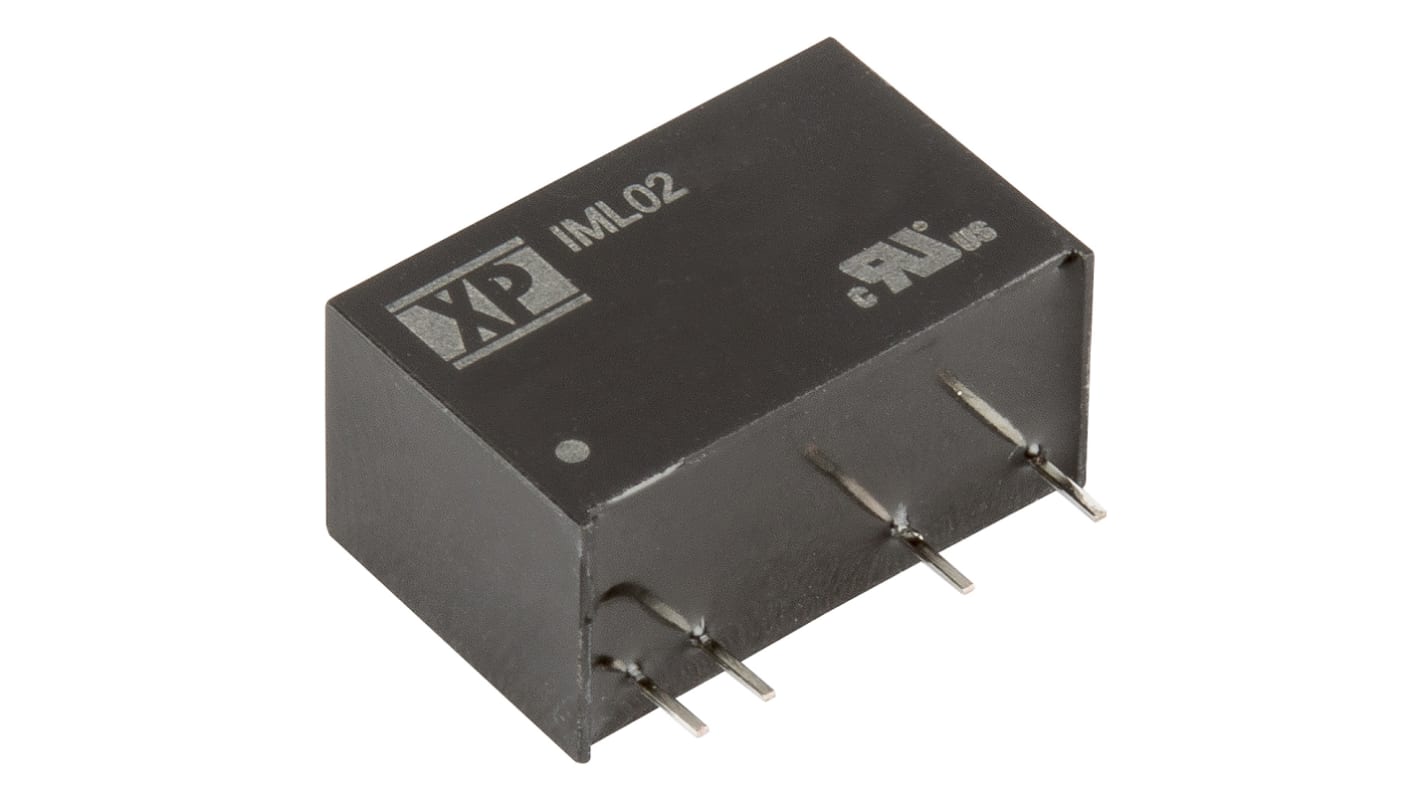

XP Power IML02 DC-DC Converter, 3.3V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

RS Stock No.:: 124-0979
Mfr. Part No.:: IML0224S3V3
Manufacturer:: XP Power

XP Power IML02 DC-DC Converter, 3.3V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

Bulk discount available

Price Each

MYR35.94

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 4	MYR35.94
5 - 9	MYR34.86
10 - 24	MYR33.78
25 - 49	MYR33.05
50 +	MYR32.32

RS Stock No.:: 124-0979
Mfr. Part No.:: IML0224S3V3
Manufacturer:: XP Power

IML02 Series Datasheet

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	600mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP 7
Isolation Voltage	4kV ac
Width	9.8mm
Depth	12.5mm
Length	19.5mm
Series	IML02
Load Regulation	0.1
Minimum Temperature	-40°C
Medical Approved	Yes
Maximum Temperature	+85°C
Standards Met	CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1

XP Power IML02 DC-DC Converter, 3.3V dc/ 600mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

FREE delivery for orders over MYR700.00

XP Power - IML02 Series of Isolated DC-DC Converters
