    XP Power JCA DC-DC Converter, 12V dc/ 830mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +100°C Max Temp -40°C

    RS Stock No.:
    122-8041
    Mfr. Part No.:
    JCA1005S12
    Manufacturer:
    XP Power
    XP Power

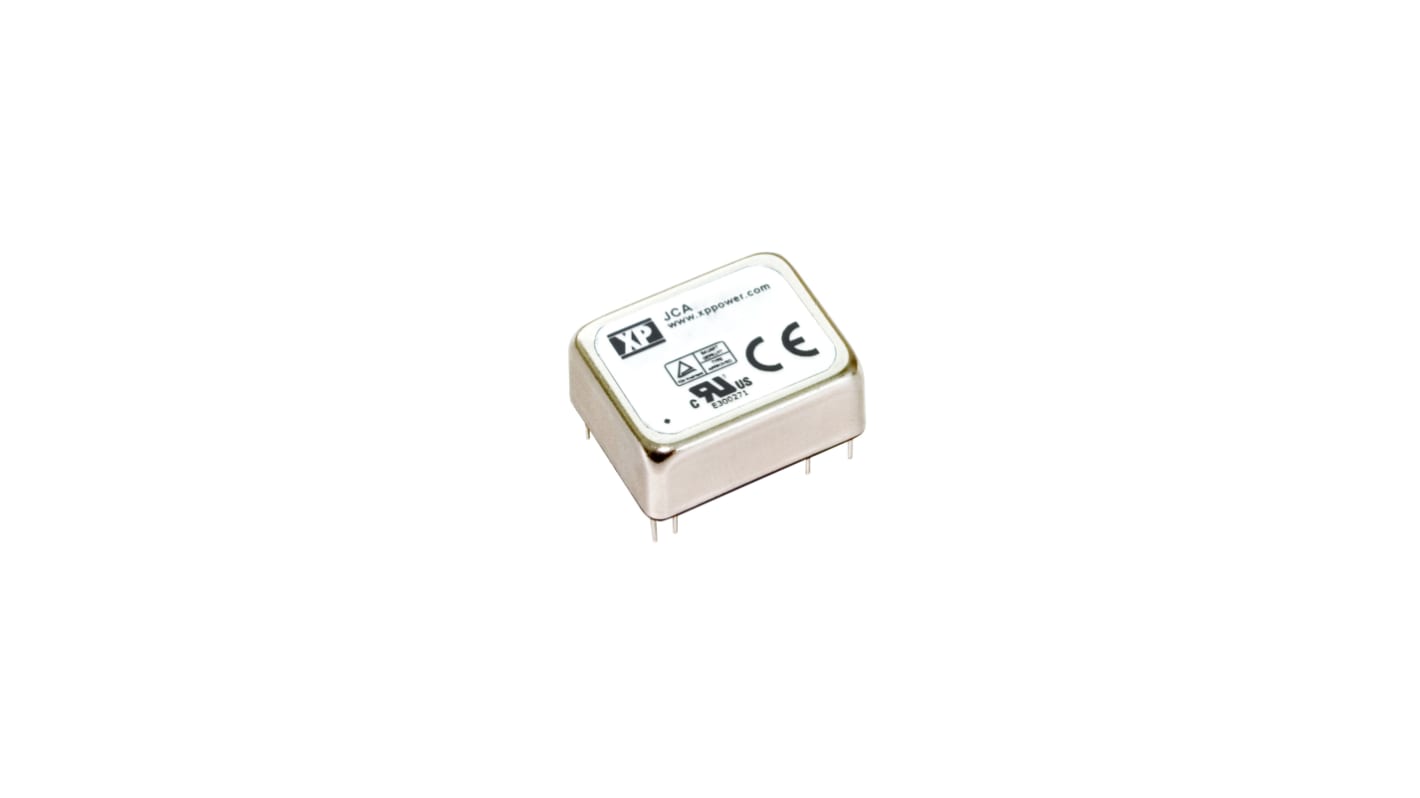

    This image is representative of the product range

    View all DC-DC Converters
    250 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    Was MYR211.51

    You pay

    MYR179.10

    unitsPer Unit
    1 - 3MYR179.10
    4 - 7MYR174.64
    8 +MYR170.02
    RS Stock No.:
    122-8041
    Mfr. Part No.:
    JCA1005S12
    Manufacturer:
    XP Power
    COO (Country of Origin):
    TW

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

    XP Power - JCA Series of 10 W Isolated DC-DC Converters


    The JCA series from XP Power offers a highly reliable range of single and dual output, 10 W, isolated DC-DC converters. The series attributes 1500 VDC input to output with basic insulation, 500 VDC input to case and 500 VDC output to case. The range is available in a compact 1.0” x 0.8” metal package, has a 2:1 input range and has been fully UL and TUV approved.

    10 W, isolated DC-DC converters
    Compact metal 1.0” x 0.8” package
    2:1 input range
    1500 VDC input to output with basic insulation
    500 VDC input to case, 500 VDC output to case
    Single and dual output
    High efficiency up to 85%
    -40 °C to +100 °C Operating temperature
    Board mount
    Industry standard pin out
    UL and TUV approved

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    XP Power - Isolated DC-DC Converters

    Specifications

    AttributeValue
    Output Voltage12V dc
    Input Voltage Range4.5 → 9 V dc
    Power Rating10W
    Input Voltage Nominal5 V dc
    Output Current830mA
    Mounting TypeThrough Hole
    IsolatedYes
    Number of Outputs1
    PackageDIP 24
    Isolation Voltage1.5kV dc
    Depth10mm
    Length25.4mm
    Width20.3mm
    SeriesJCA
    Load Regulation±1%
    Maximum Temperature+100°C
    Minimum Temperature-40°C
    Efficiency85%
