    XP Power ITB DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +105°C Max Temp

    RS Stock No.:
    122-6016
    Mfr. Part No.:
    ITB2415S
    Manufacturer:
    XP Power
    XP Power

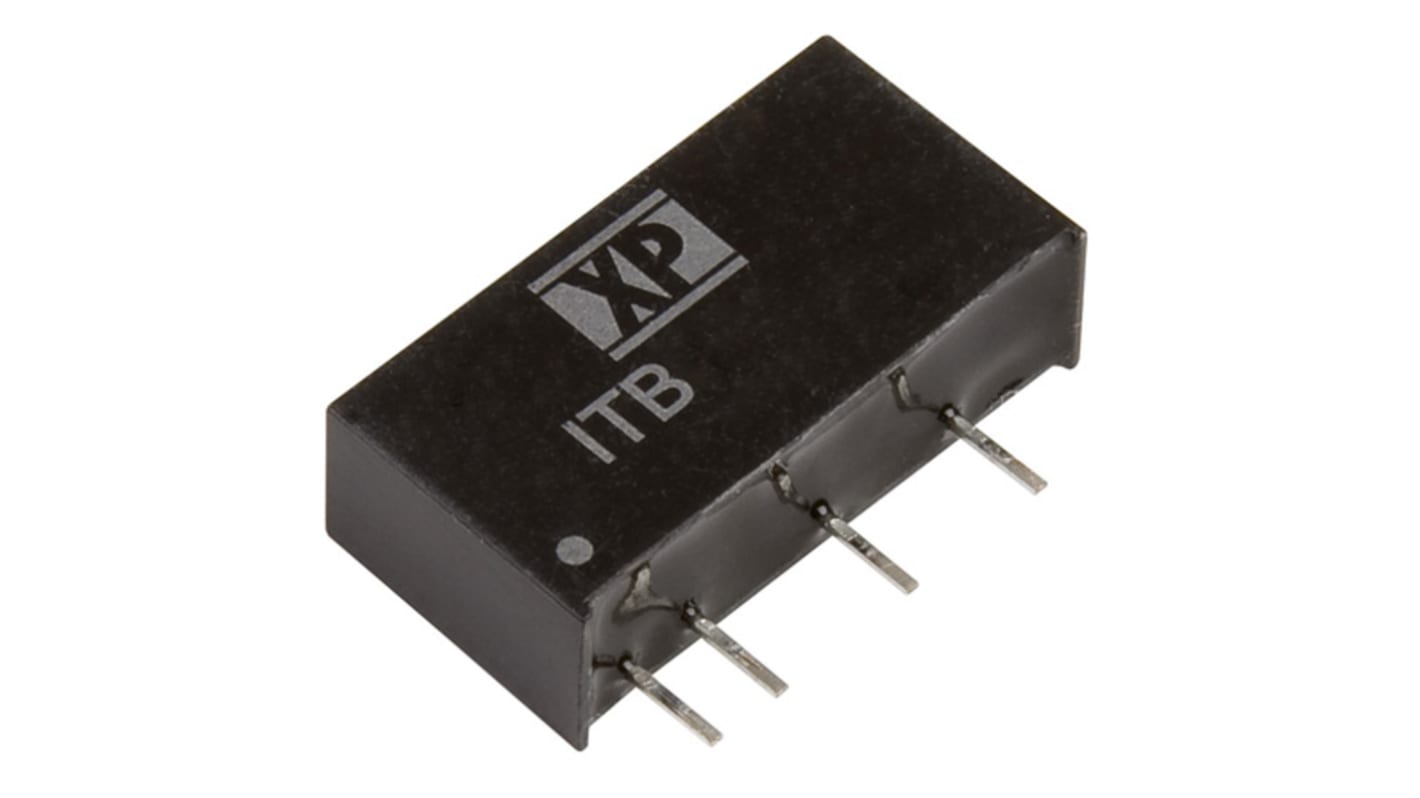

    This image is representative of the product range

    View all DC-DC Converters
    4 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    Was MYR36.69

    You pay

    MYR33.77

    unitsPer Unit
    1 - 4MYR33.77
    5 - 9MYR33.21
    10 +MYR32.33
    Packaging Options:
    RS Stock No.:
    122-6016
    Mfr. Part No.:
    ITB2415S
    Manufacturer:
    XP Power
    COO (Country of Origin):
    TW

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

    XP Power - ITB Series Isolated DC-DC Converter


    XP Power ITB series of DC-DC Converters provide the user with a reliable & robust product suitable for use within a wide variety of applications. The ITB series is a single output SIP packaged converter.


    Features and Benefits

    Single output.
    SIP Package.
    MTBF >3.5MHrs.
    Class B conducted & radiated emissions.
    Wide operating temperature of -40°C to +105°C, with a full load rating to 95°C ambient.

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    XP Power - Isolated DC-DC Converters

    Specifications

    AttributeValue
    Output Voltage15V dc
    Input Voltage Range21.6 → 26.4 V dc
    Power Rating1W
    Input Voltage Nominal24 V dc
    Output Current66mA
    Mounting TypeThrough Hole
    IsolatedYes
    Number of Outputs1
    PackageSIP
    Isolation Voltage1.5kV dc
    Length19.5mm
    Depth10mm
    Width6mm
    SeriesITB
    Load Regulation-2.5 → +5%
    Standards MetEN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
    Maximum Temperature+105°C
    Efficiency80%
    Minimum Temperature-40°C
