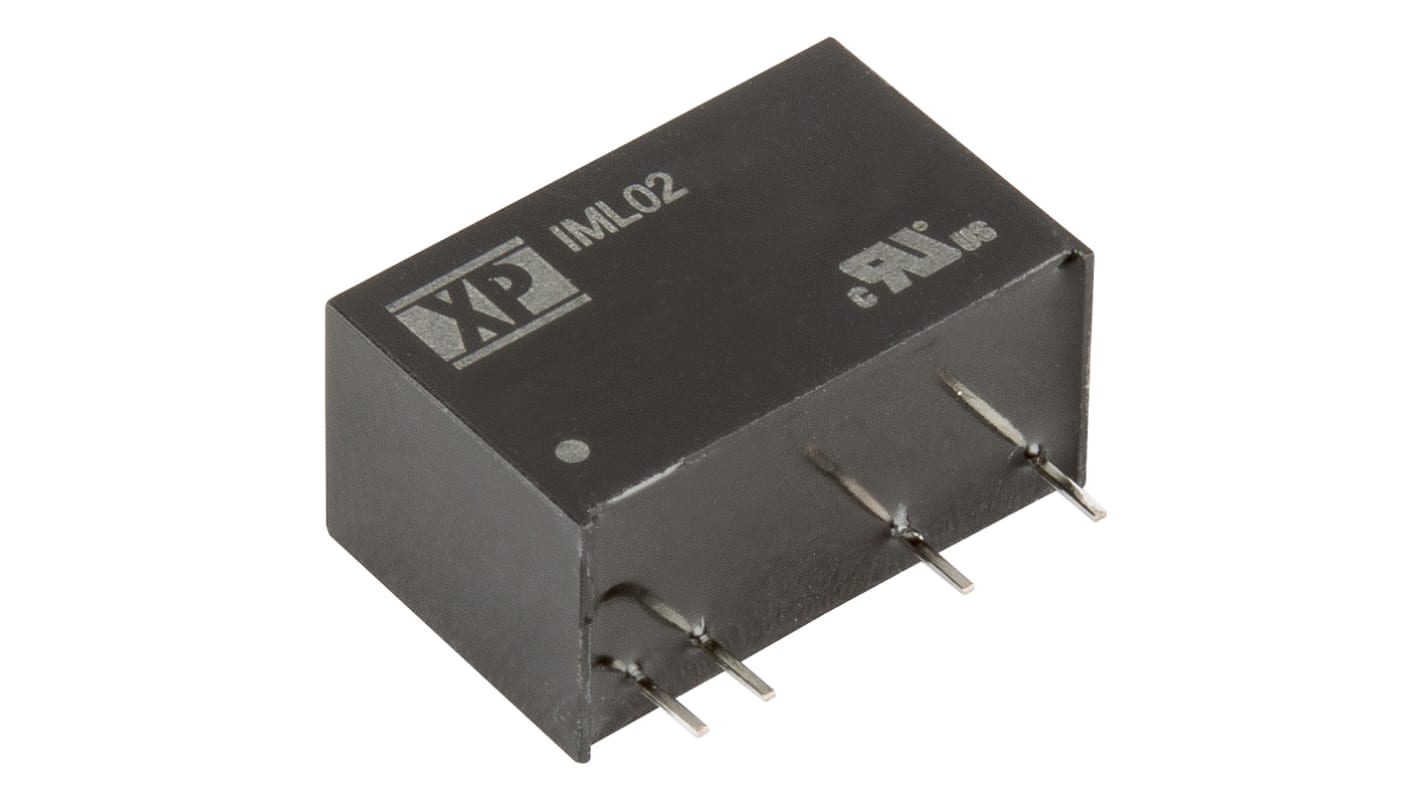

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

RS Stock No.:: 124-0988
Mfr. Part No.:: IML0224D15
Manufacturer:: XP Power

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

Bulk discount available

Price Each

MYR39.43

Temporarily out of stock - back order for despatch 28/01/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit
1 - 4	MYR39.43
5 - 9	MYR38.25
10 - 24	MYR37.07
25 - 49	MYR36.28
50 +	MYR35.49

RS Stock No.:: 124-0988
Mfr. Part No.:: IML0224D15
Manufacturer:: XP Power

IML02 Series Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	±66mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	4kV ac
Width	9.8mm
Length	19.5mm
Depth	12.5mm
Series	IML02
Load Regulation	0.1
Medical Approved	Yes
Minimum Temperature	-40°C
Maximum Temperature	+85°C
Standards Met	CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +85°C Max Temp

XP Power - IML02 Series of Isolated DC-DC Converters
