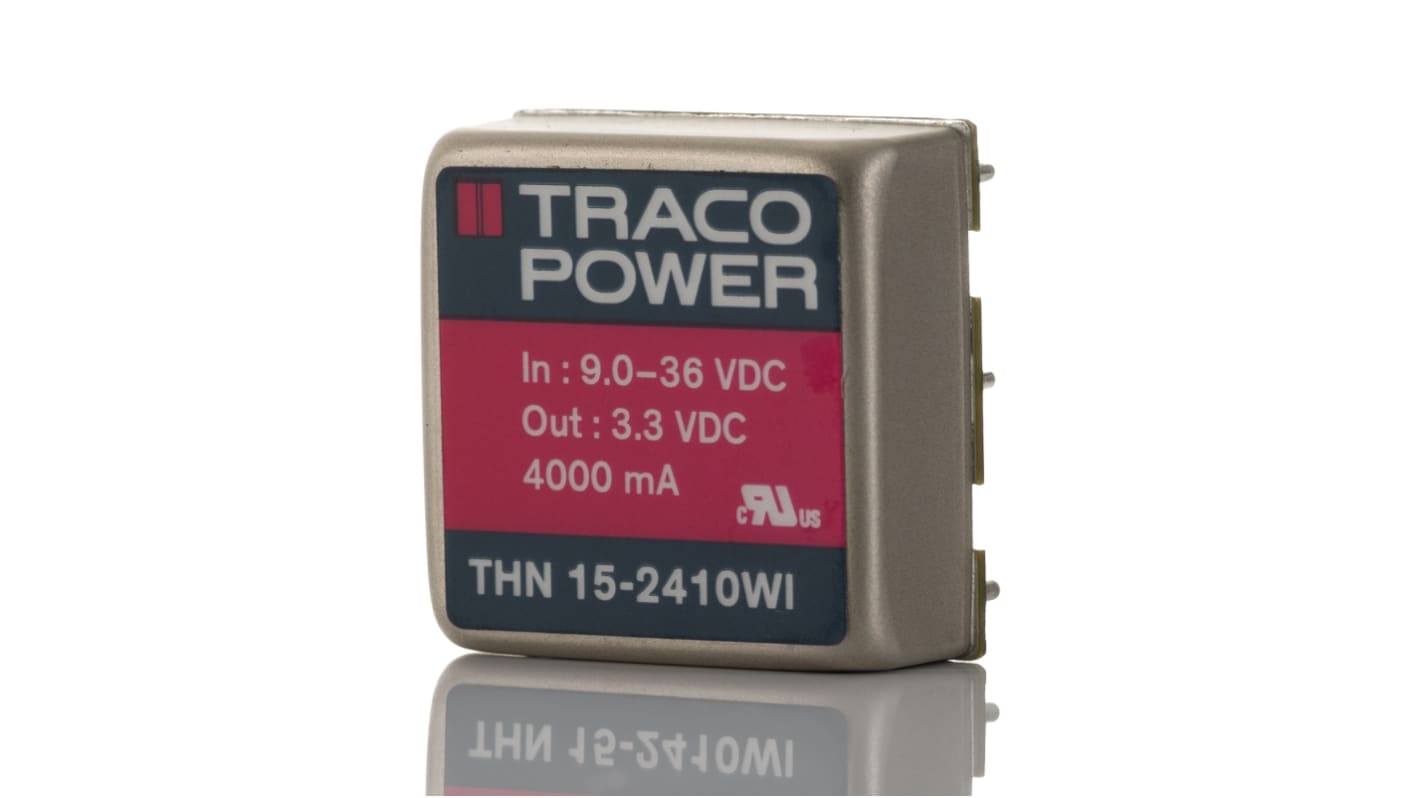

TRACOPOWER THN 15WI DC-DC Converter, 3.3V dc/ 4A Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 438-458
- Mfr. Part No.:
- THN 15-2410WI
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR183.27
35 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 2 | MYR183.27 |
| 3 - 4 | MYR177.76 |
| 5 + | MYR172.27 |
**price indicative
- RS Stock No.:
- 438-458
- Mfr. Part No.:
- THN 15-2410WI
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 4A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 2.97 → 3.63V dc | |
| Package | Encapsulated | |
| Isolation Voltage | 1.6kV dc | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Depth | 9.9mm | |
| Series | THN 15WI | |
| Standards Met | CE | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 86% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 2.97 → 3.63V dc | ||
Package Encapsulated | ||
Isolation Voltage 1.6kV dc | ||
Length 25.4mm | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Series THN 15WI | ||
Standards Met CE | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 86% | ||
