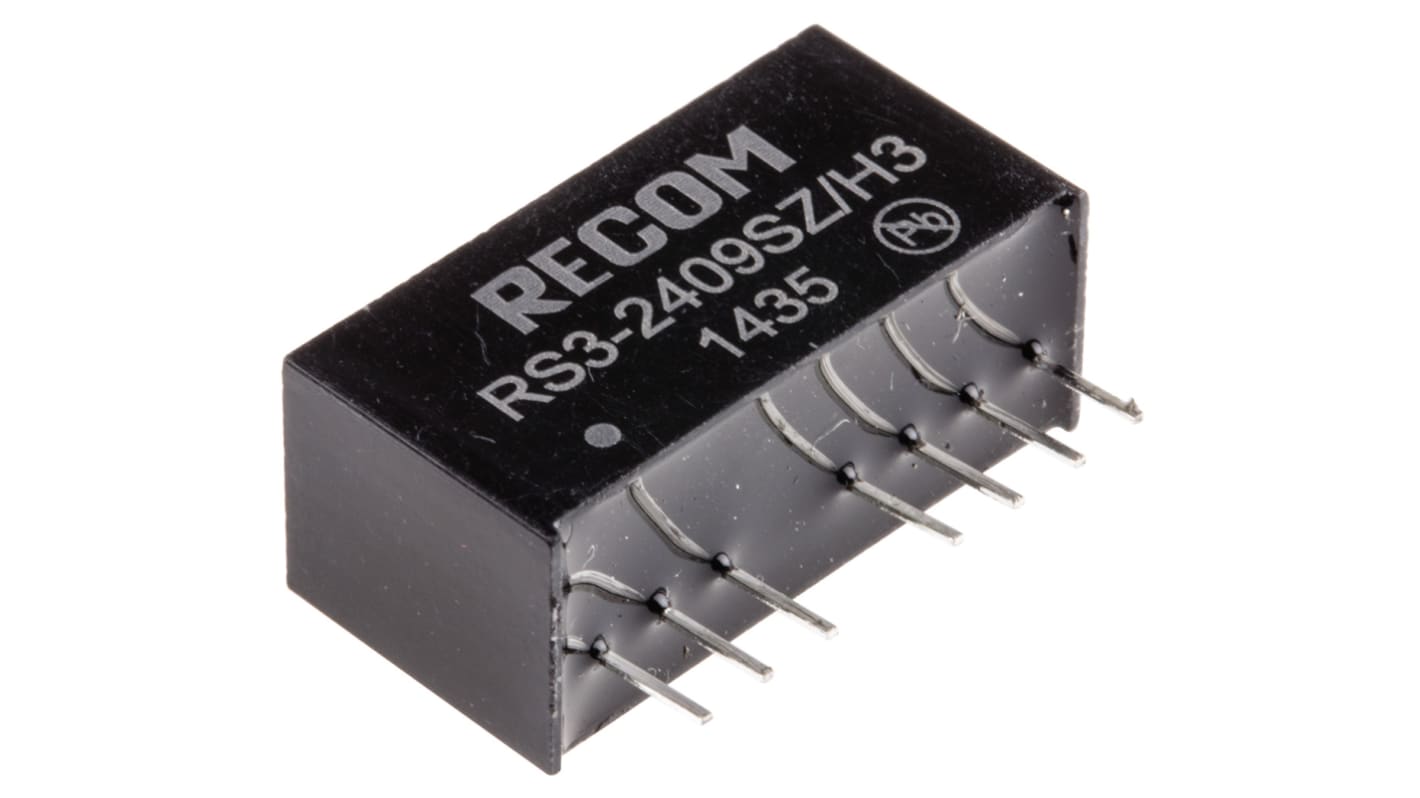

Name: Recom RS3 DC-DC Converter, 9V dc/ 333mA Output, 9 → 27 V dc Input, 3W, Through Hole, +71°C Max Temp -40°C Min
Brand: Recom
SKU: 417-271
Price: 115.12 MYR
Availability: BackOrder

Essential and Operational Technologies

These cookies make our website work. This includes product images and videos, functionality for the basket, logging in, remembering your username, registration and My Account.

We use optimisation cookies to test new features and designs on our website. The information collected helps us improve our website and our customers' experience.

Advertising

These cookies are used to understand the performance and relevancy of our adverts, to provide you with personalised adverts on other websites and social media, to track when you have arrived at our site from a recognised third-party affiliate website, and to track if you made a purchase based on the adverts we displayed to you.

Recommendations

These cookies enable us to provide personalised product and content recommendations, to make the browsing experience more relevant to you.

Functionality

These cookies are used to offer customer surveys and feedback, to improve search results, and to allow you to share content from our website on social media.

Analytics

These cookies help us improve our website by collecting and reporting information on how you use it.

Units	Per Unit
1 - 5	MYR115.12
6 - 10	MYR111.68
11 +	MYR108.23

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	9V dc
	Input Voltage Range	9 → 27 V dc
	Power Rating	3W
	Input Voltage Nominal	24 V dc
	Output Current	333mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	SIP
	Isolation Voltage	3kV dc
	Depth	11.1mm
	Width	9.2mm
	Length	21.8mm
	Series	RS3
	Load Regulation	0.5%
	Efficiency	79%
	Maximum Temperature	+71°C
	Standards Met	CSA60950-1, EN60950-1, UL60950-1
	Minimum Temperature	-40°C
	Medical Approved	Yes

	Select all
	Brand Recom
	Output Voltage 9V dc
	Input Voltage Range 9 → 27 V dc
	Power Rating 3W
	Input Voltage Nominal 24 V dc
	Output Current 333mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package SIP
	Isolation Voltage 3kV dc
	Depth 11.1mm
	Width 9.2mm
	Length 21.8mm
	Series RS3
	Load Regulation 0.5%
	Efficiency 79%
	Maximum Temperature +71°C
	Standards Met CSA60950-1, EN60950-1, UL60950-1
	Minimum Temperature -40°C
	Medical Approved Yes

Recom RS3 DC-DC Converter, 9V dc/ 333mA Output, 9 → 27 V dc Input, 3W, Through Hole, +71°C Max Temp -40°C Min

FREE delivery for orders over MYR500.00

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS3-Z/H3 Series
