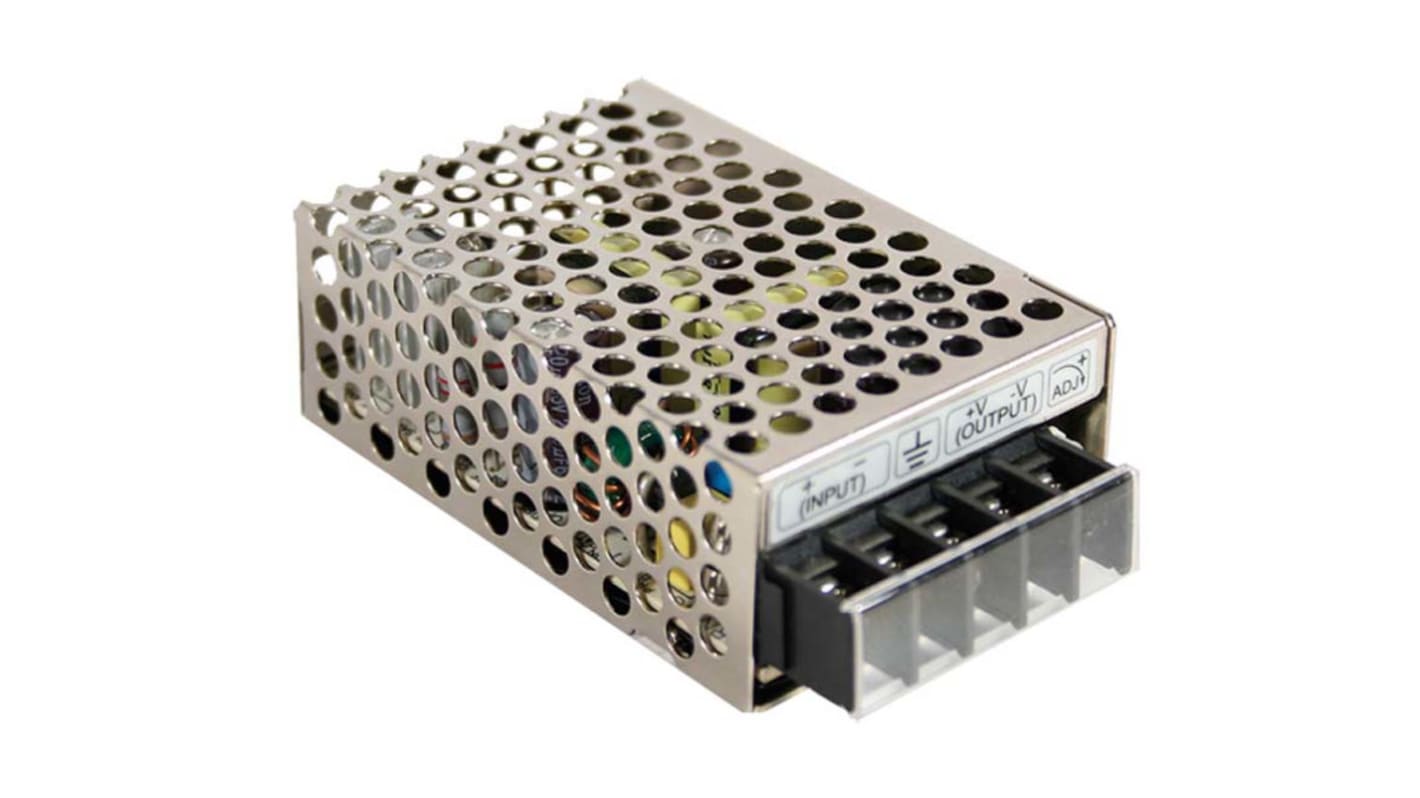

MEAN WELL DC-DC Converter, 12V dc/ 1.25A Output, 9.2 → 18 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C
- RS Stock No.:
- 183-815
- Distrelec Article No.:
- 169-26-145
- Mfr. Part No.:
- SD-15A-12
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)**
MYR81.73
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR81.73 |
| 5 - 9 | MYR80.09 |
| 10 - 24 | MYR78.50 |
| 25 - 49 | MYR76.94 |
| 50 + | MYR75.41 |
**price indicative
- RS Stock No.:
- 183-815
- Distrelec Article No.:
- 169-26-145
- Mfr. Part No.:
- SD-15A-12
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9.2 → 18 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 1.25A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 10.8 → 13.2V | |
| Isolation Voltage | 2kV ac | |
| Length | 78mm | |
| Width | 51mm | |
| Depth | 28mm | |
| Load Regulation | ±0.3% | |
| Maximum Temperature | +60°C | |
| Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | |
| Efficiency | 72% | |
| Minimum Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Input Voltage Range 9.2 → 18 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 1.25A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10.8 → 13.2V | ||
Isolation Voltage 2kV ac | ||
Length 78mm | ||
Width 51mm | ||
Depth 28mm | ||
Load Regulation ±0.3% | ||
Maximum Temperature +60°C | ||
Standards Met 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | ||
Efficiency 72% | ||
Minimum Temperature -10°C | ||
