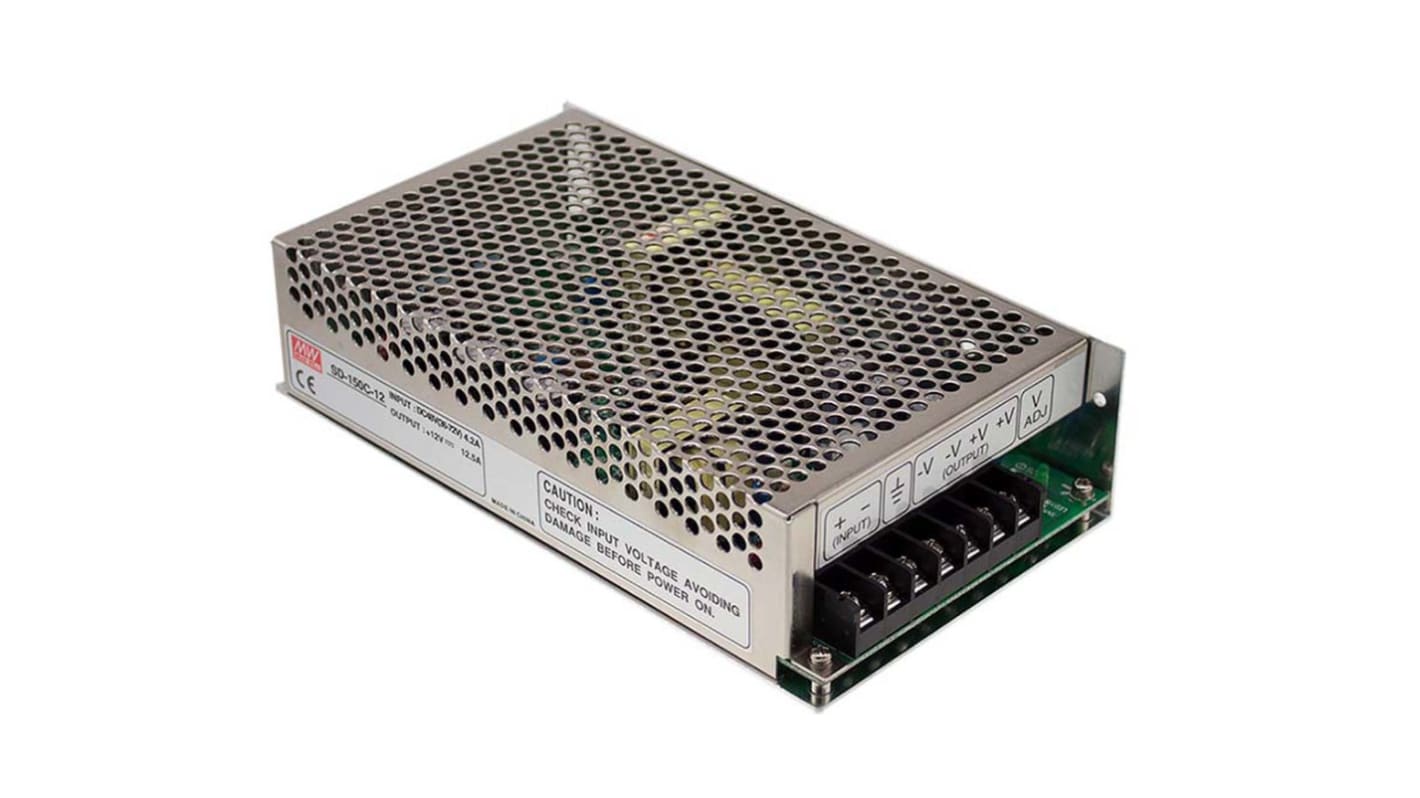

MEAN WELL DC-DC Converter, 12V dc/ 12.5A Output, 36 → 72 V dc Input, 150W, Chassis Mount, +60°C Max Temp -10°C
- RS Stock No.:
- 183-736
- Distrelec Article No.:
- 169-26-154
- Mfr. Part No.:
- SD-150C-12
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)**
MYR255.08
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 4 | MYR255.08 |
5 - 9 | MYR249.73 |
10 - 24 | MYR242.25 |
25 - 49 | MYR236.30 |
50 + | MYR231.12 |
**price indicative
- RS Stock No.:
- 183-736
- Distrelec Article No.:
- 169-26-154
- Mfr. Part No.:
- SD-150C-12
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 12V dc | |
Input Voltage Range | 36 → 72 V dc | |
Power Rating | 150W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 12.5A | |
Mounting Type | Chassis Mount | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | 21 → 16V | |
Isolation Voltage | 1.5kV ac | |
Width | 110mm | |
Length | 199mm | |
Depth | 50mm | |
Load Regulation | ±0.5% | |
Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | |
Maximum Temperature | +60°C | |
Minimum Temperature | -10°C | |
Efficiency | 79% | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Input Voltage Range 36 → 72 V dc | ||
Power Rating 150W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 12.5A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 21 → 16V | ||
Isolation Voltage 1.5kV ac | ||
Width 110mm | ||
Length 199mm | ||
Depth 50mm | ||
Load Regulation ±0.5% | ||
Standards Met 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | ||
Maximum Temperature +60°C | ||
Minimum Temperature -10°C | ||
Efficiency 79% | ||
