Rotronic Instruments HL-1D Temperature & Humidity Data Logger, USB Mini-Port

RS Stock No.:: 827-3742
Mfr. Part No.:: HL-1D
Manufacturer:: Rotronic Instruments

Rotronic Instruments HL-1D Temperature & Humidity Data Logger, USB Mini-Port

Subtotal (1 unit)*

MYR1,054.35

FREE delivery for orders over RM 500.00

Supply shortage

31 left, ready to ship from another location

Our current stock is limited and our suppliers are expecting shortages.

Units	Per Unit
1 +	MYR1,054.35

*price indicative

RS Stock No.:: 827-3742
Mfr. Part No.:: HL-1D
Manufacturer:: Rotronic Instruments

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rotronic Instruments
	Product Type	Data Logger
	Model Number	HL-1D
	Accuracy	±0.3 °C
	Measurement Parameters	Temperature, Humidity
	Interface Type	USB Mini-Port
	Data Logger Type	Temperature & Humidity
	Power Source	USB, Battery
	IP Rating	IP67
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Width	23 mm
	Standards/Approvals	No
	Length	90mm
	Hazardous Area Certification	No
	Height	60mm
	Display Type	LCD
	Number of Readings per Channel	16000
	Alarm	Yes
	Battery Type	CR2
	Battery Life	3year

	Select all
	Brand Rotronic Instruments
	Product Type Data Logger
	Model Number HL-1D
	Accuracy ±0.3 °C
	Measurement Parameters Temperature, Humidity
	Interface Type USB Mini-Port
	Data Logger Type Temperature & Humidity
	Power Source USB, Battery
	IP Rating IP67
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Width 23 mm
	Standards/Approvals No
	Length 90mm
	Hazardous Area Certification No
	Height 60mm
	Display Type LCD
	Number of Readings per Channel 16000
	Alarm Yes
	Battery Type CR2
	Battery Life 3year

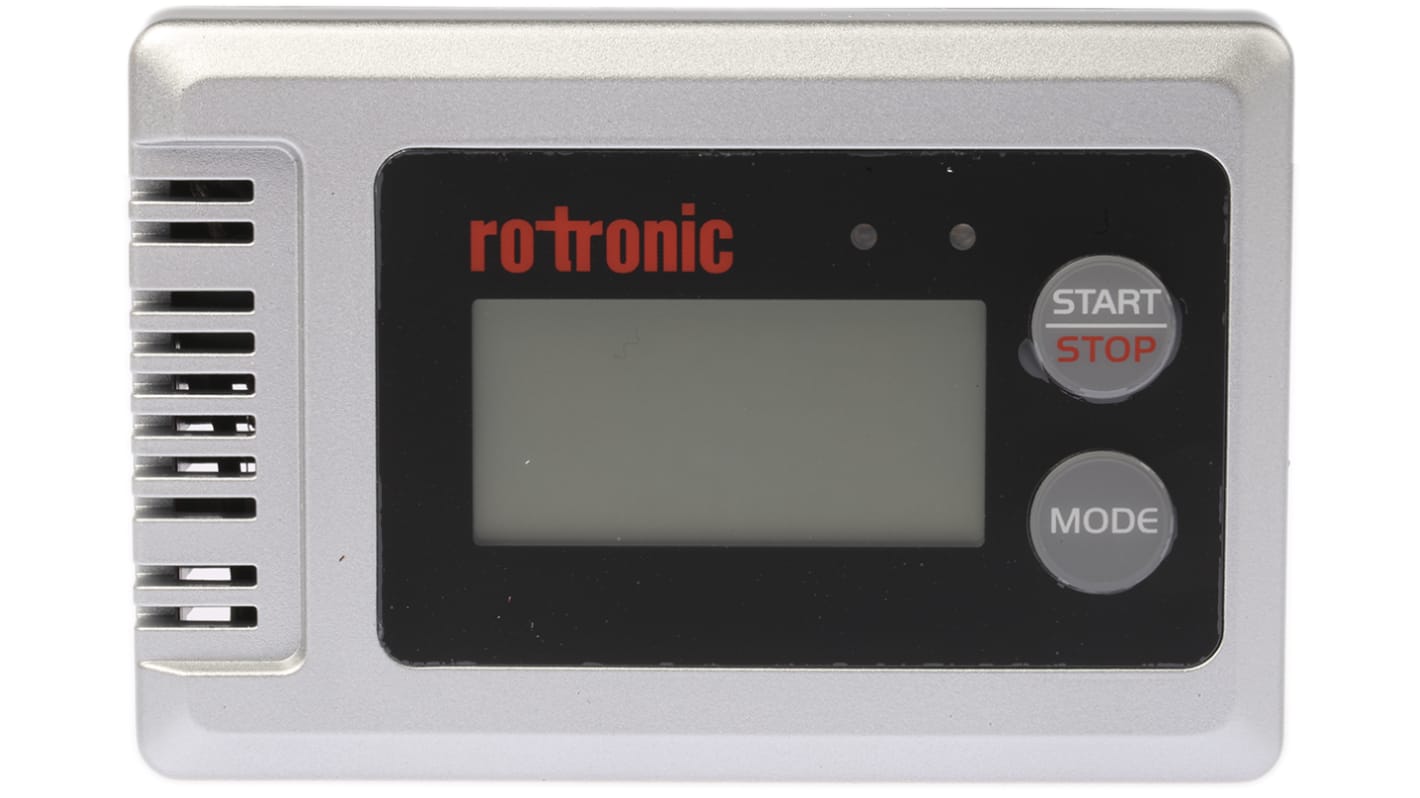

Rotronic Instruments HL-1D Humidity Temperature Data Logger.

The Rotronic HL-1D measures only 90 x 60 x 23 mm, is well specified with good accuracy, durable and has high ingress protection against dust and water (IP67). HW4-Lite validated software for programming, data download and analysis is included. The logger is available now at a competitive, inexpensive price.

Suitable for monitoring and recording conditions for a wide range of applications across all industries, in commerce and for research organisations. The compact logger is particularly suitable for monitoring high value products of all types during transportation to ensure that quality is maintained.

Features and Benefits.

High measurement accuracy of 3 %rh and 0.3 °C.

Slim, compact and durable.

High ingress protection rating of IP67.

Clear LC display with configurable visual alarms.

Large data recording capacity: 32,000 data.

Ranges: -20...70 °C, 0...100 %rh.

Logging interval from 30 s.

Min / Max / Average statistical function on logger display.

Package includes HW4-Lite validated PC software with data analysis.

Three-year battery life (with five-minute logging interval).

FDA 21CFR Part 11 / GAMP5 conformity.

Temperature only logger available (product code TL-1D).

Supplied with:

CR2 battery.

Short instruction manual, function and calibartion certificate.

HW4-lite software key code (for software donwload).

Certifications:

IP67 rated.

FDA 21 CFR Part 11.

Gamp 5.
