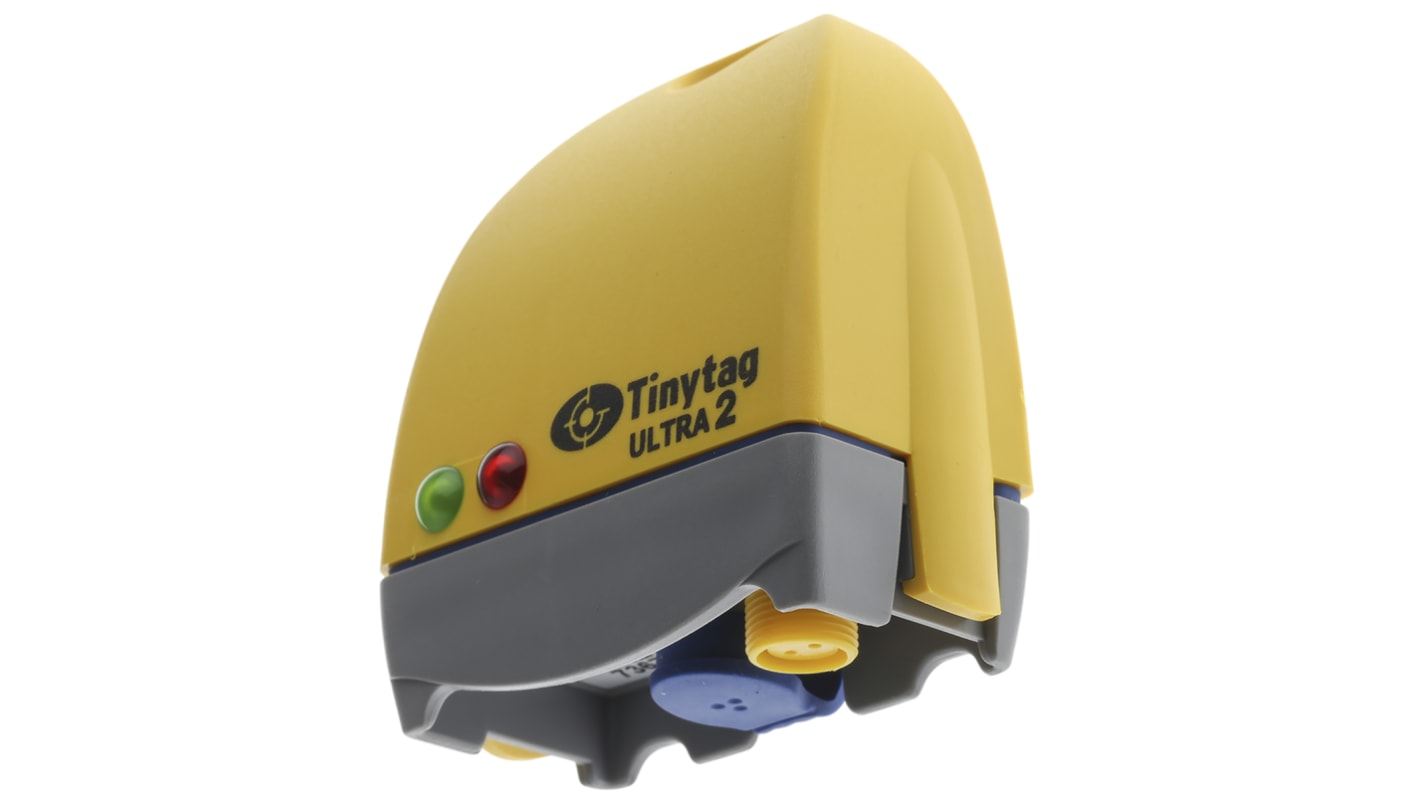

Gemini Ultra 2 TGU-4020 Temperature Data Logger, Serial, USB, 2 Channel
- RS Stock No.:
- 509-6905
- Mfr. Part No.:
- TGU-4020-PK
- Manufacturer:
- Gemini
Subtotal (1 unit)*
MYR976.68
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR976.68 |
*price indicative
- RS Stock No.:
- 509-6905
- Mfr. Part No.:
- TGU-4020-PK
- Manufacturer:
- Gemini
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gemini | |
| Product Type | Data Logger | |
| Accuracy | ±0.6 °C | |
| Model Number | Ultra 2 TGU-4020 | |
| Measurement Parameters | Temperature | |
| Number of Channels | 2 | |
| Interface Type | Serial, USB | |
| Data Logger Type | Temperature | |
| Power Source | Battery | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 60 mm | |
| Length | 72mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE | |
| Height | 33mm | |
| Maximum Measurement | 125 °C | |
| Alarm | Yes | |
| Number of Readings per Channel | 32000 | |
| Battery Type | AA | |
| Battery Life | 2year | |
| Select all | ||
|---|---|---|
Brand Gemini | ||
Product Type Data Logger | ||
Accuracy ±0.6 °C | ||
Model Number Ultra 2 TGU-4020 | ||
Measurement Parameters Temperature | ||
Number of Channels 2 | ||
Interface Type Serial, USB | ||
Data Logger Type Temperature | ||
Power Source Battery | ||
IP Rating IP54 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 60 mm | ||
Length 72mm | ||
Hazardous Area Certification No | ||
Standards/Approvals CE | ||
Height 33mm | ||
Maximum Measurement 125 °C | ||
Alarm Yes | ||
Number of Readings per Channel 32000 | ||
Battery Type AA | ||
Battery Life 2year | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Tinytag Ultra 2
Temperature and humidity data loggers which are ideal for the monitoring of indoor environmental conditions.
Single and dual channel temperature and humidity recorders
16000 readings
User programmable logging intervals from 1s to 10 days
Delayed and triggered start options
3 stop options – stop when full, wrap around and stop after n readings
Dust and splash proof
Replaceable battery supplied
Use with Tinytag Explorer
2 alarms
Trigger Start-Stop
Dimensions: 72 x 60 x 33mm
PC download cable (1m) is available seperately (stock nos. 219-721)
