Digilent USB-2001-TC Data Acquisition, USB, 4 sps, 32 bit

View all Data Acquisition

Subtotal (1 unit)*

MYR972.25

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 16 March 2026
  • Plus 2 unit(s) shipping from 27 March 2026
  • Plus 3 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR972.25

*price indicative

RS Stock No.:
278-2759
Distrelec Article No.:
303-68-549
Mfr. Part No.:
6069-410-063
Manufacturer:
Digilent
Find similar products by selecting one or more attributes.
Select all

Brand

Digilent

Product Type

Data Acquisition

Sampling Rate

4sps

Resolution

32 bit

Number of Channels

1

Connectivity

USB

Power Source

USB

Minimum Operating Temperature

0°C

Maximum Operating Temperature

55°C

Height

20.32mm

Length

62.56mm

Standards/Approvals

No

Width

38.1 mm

Weight

116g

Model Number

USB-2001-TC

COO (Country of Origin):
HU

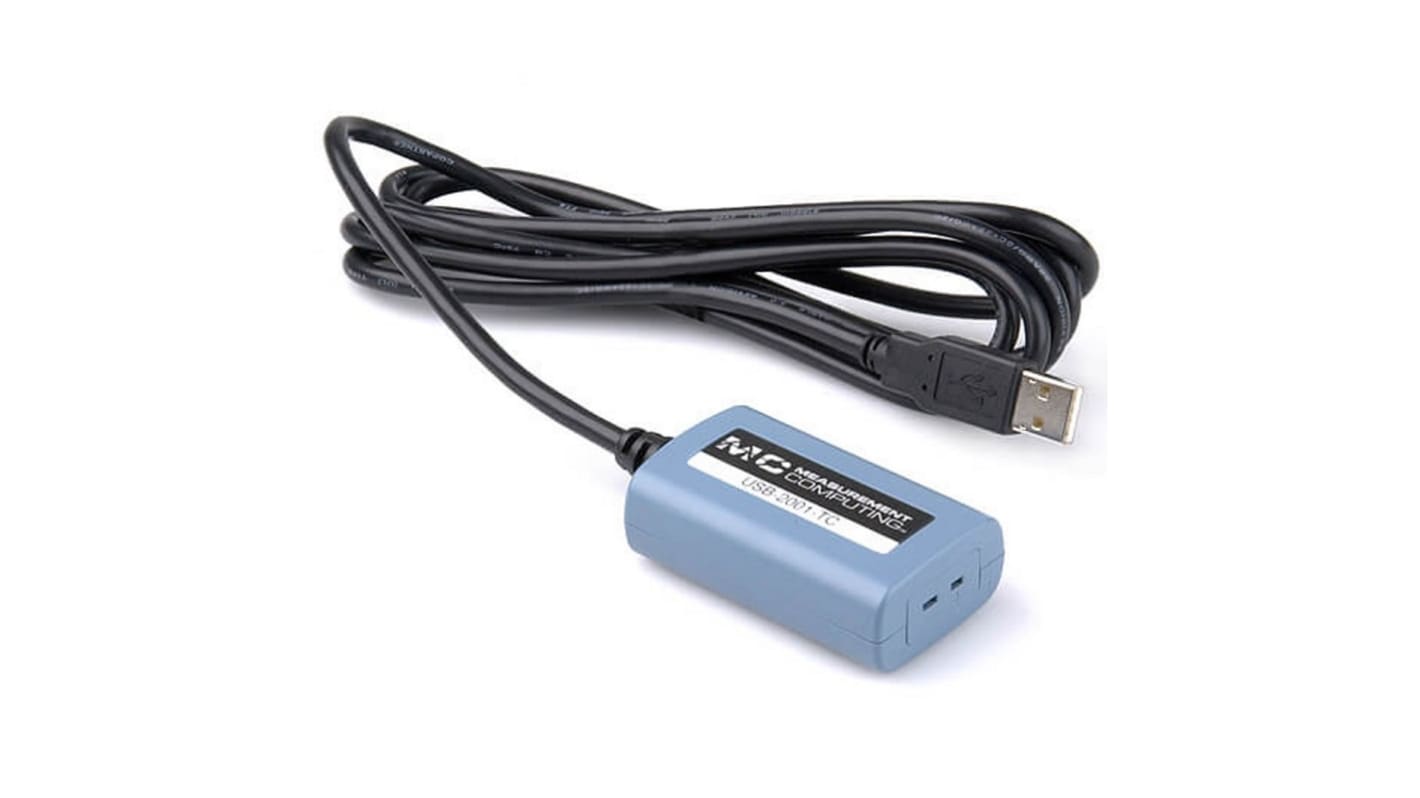

The Digilent single-channel 20-bit thermocouple input DAQ device that measures temperatures in the ranges defined by NIST J, K, R, S, T, N, E, and B thermocouple types. It features a 4 S/s sample rate, integrated cold junction compensation, and open thermocouple detection. The USB-2001-TC has a small form-factor, and is designed with a captive USB cable attached to one end, and a socket on the other end for receiving industry-standard thermocouple miniature connectors. The USB-2001-TC gets power from the host PC via the USB cable, and requires no external supply. The USB-2001-TC provides an ideal solution for embedded applications that require reliable temperature measurements at an affordable price point.

One thermocouple input

Integrated cold junction compensation sensor

Open thermocouple detection feature

Small form factor

Bus powered
